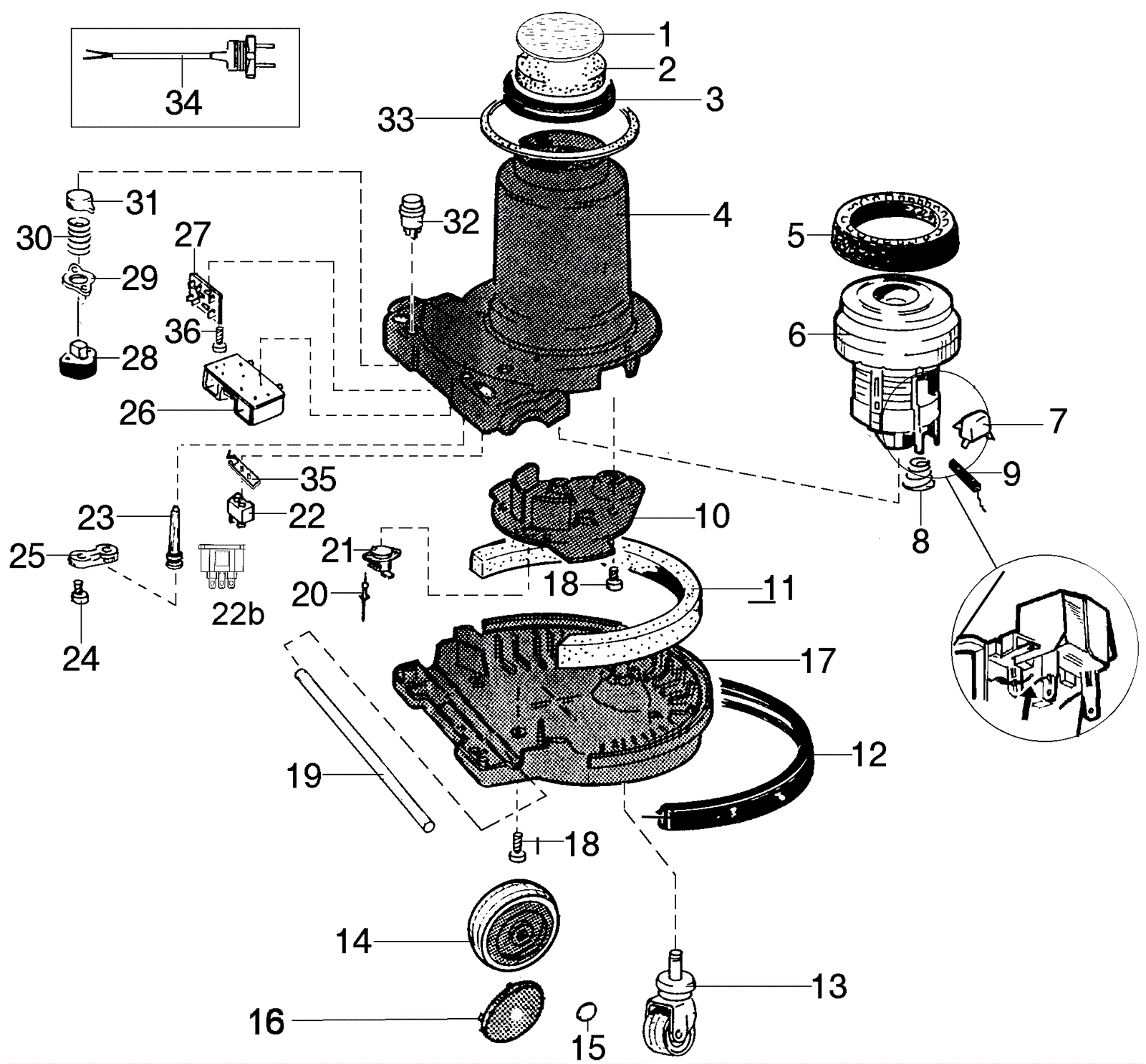

GD930 Lower Parts Assembly

#PartDescriptionPriceReqNotesAvailability
1 181-2036 Paper filter $23.95 1 usually ships 16-41 days
2 181-2036 Paper filter $23.95 1 usually ships 16-41 days
3 N/A Not available Call for price 1 (gasket) usually ships 3-26 days
4 181-1634 Stand (OBSOLETE) $5.94 1 usually ships 1-5 days
5 181-1639 Suspension ring $16.43 1 (for new domel motor) usually ships 1-5 days
5a 181-1639 Suspension ring $16.43 1 (for old type of motor) usually ships 1-5 days
6 272-3427 110-120V fan unit $306.13 1 usually ships 16-41 days
7 181-1641 Capacitor $22.41 1 usually ships 16-41 days
8 181-1642 Spring $11.99 4 usually ships 1-5 days
9 181-1381 Carbon brush (OBSOLETE) $10.10 2 usually ships 16-41 days
10a 272-3432 Motor plate with thermo protector $32.88 1 usually ships 16-41 days
10b 272-3432 Motor plate with thermo protector $32.88 1 (UL-listed) usually ships 16-41 days
11 181-1645 Silencer (OBSOLETE) $18.41 1 usually ships 16-41 days
12 272-3422 Base and bumper $126.82 1 ships same day
13 272-3424 Castor wheel $34.66 1 usually ships 16-41 days
14 N/A Not available Call for price 2 (wheel) usually ships 3-26 days
15 272-3423 Locking cap $40.04 2 usually ships 16-41 days
16 N/A Not available Call for price 1 (wheel disc) usually ships 3-26 days
17a 181-1650 Bottom part (OBSOLETE) $21.38 1 usually ships 16-41 days
17b 181-1650 Bottom part (OBSOLETE) $21.38 1 (UL-listed) usually ships 16-41 days
18 172-3832 Screw $1.61 14 usually ships 16-41 days
19 181-1651 Shaft $30.39 1 usually ships 16-41 days
20 181-1652 Rivet (OBSOLETE) $5.94 2 usually ships 1-5 days
21 181-0535 Thermo protector (OBSOLETE) $21.38 1 usually ships 1-5 days
22b 181-1654 Electrical outlet $31.83 1 usually ships 16-41 days
23 272-3430 Sleeve with anti-strain clip $36.07 1 usually ships 1-5 days
24 172-3861 Screw $9.02 2 ships same day
25a 181-0527 Protection sleeve kit $36.07 1 usually ships 16-41 days
25b 181-0527 Protection sleeve kit $36.07 1 (UL-listed) usually ships 16-41 days
26a 181-1655 220-240V circuit board (OBSOLETE) $43.96 1 usually ships 1-5 days
26b 181-2027 100-120V circuit board (OBSOLETE) Call for price 1 usually ships 16-41 days
27 181-1657 Anti-static board $33.76 1 usually ships 16-41 days
28 181-1660 Switch kit (OBSOLETE) $29.55 1 usually ships 16-41 days
29 181-1659 Washer (OBSOLETE) $5.94 1 usually ships 1-5 days
30 181-1660 Switch kit (OBSOLETE) $29.55 1 usually ships 16-41 days
31 181-2028 Push button (silver) (OBSOLETE) Call for price 1 usually ships 16-41 days
32 272-3431 Two speed switch (OBSOLETE) $31.83 1 usually ships 16-41 days
33 181-2036 Paper filter $23.95 1 usually ships 16-41 days
34 472-0388 CORD 15M EU PLUG $58.72 1 usually ships 16-41 days
35 181-2030 Protection plate (OBSOLETE) Call for price 1 usually ships 16-41 days
36 181-2031 Screw (OBSOLETE) Call for price 1 usually ships 16-41 days
