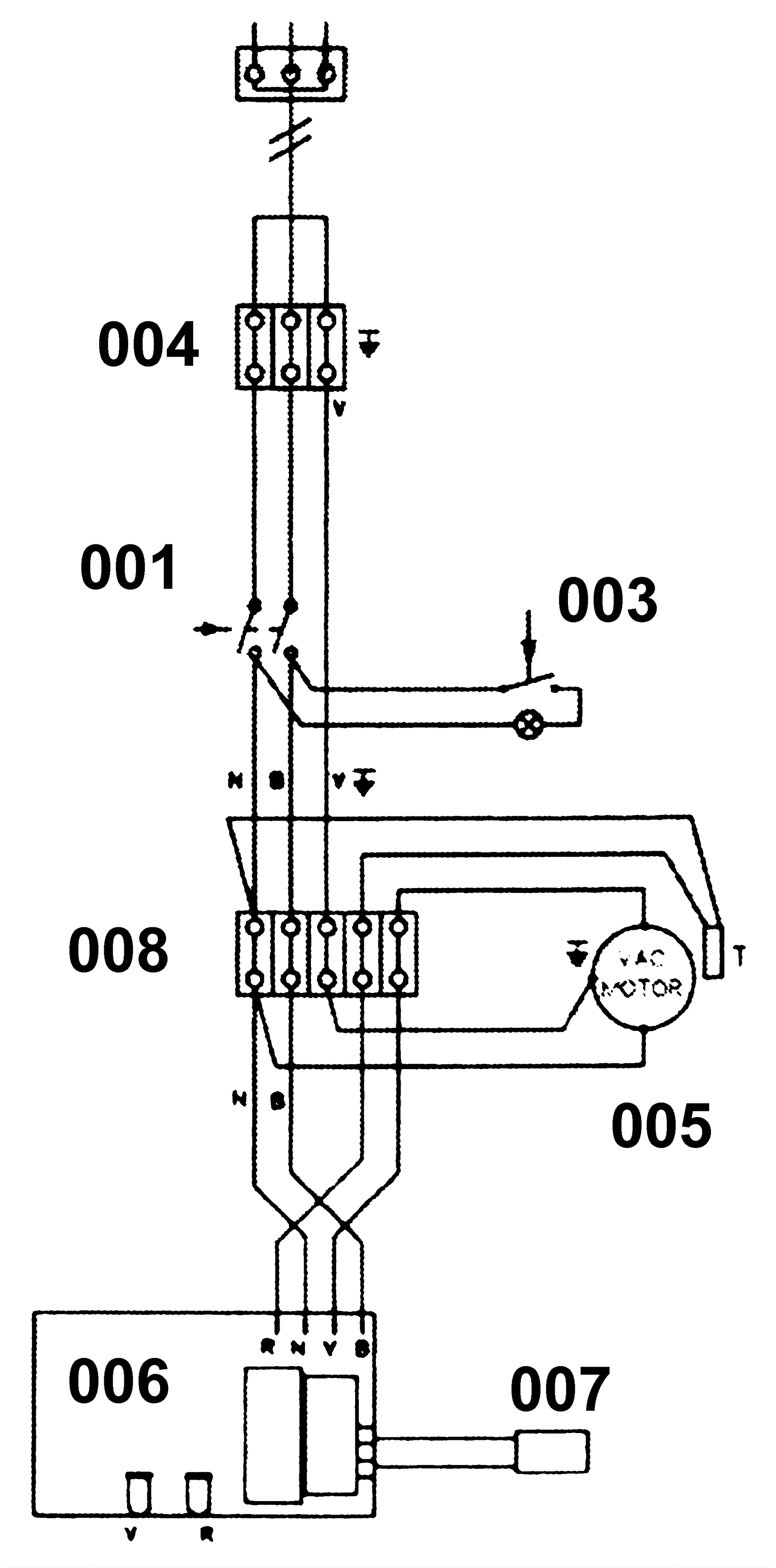

EDGE 12 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 172-5152 Main switch $13.22 1 usually ships 1-5 days
003 172-5150 Vacuum sensor with light (OBSOLETE) $34.87 1 usually ships 1-5 days
004 203-0013 Terminal block $14.48 1 usually ships 5-15 days
005 172-1850 Vacuum motor with pulley 120V $231.04 1 usually ships 1-5 days
006 172-5276 Circuit board 120v $101.34 1 usually ships 16-41 days
007 172-5307 Speed sensor (OBSOLETE) $17.71 1 usually ships 1-5 days
008 172-5158 Terminal block, 5 pole (OBSOLETE) $9.13 1 usually ships 1-5 days
