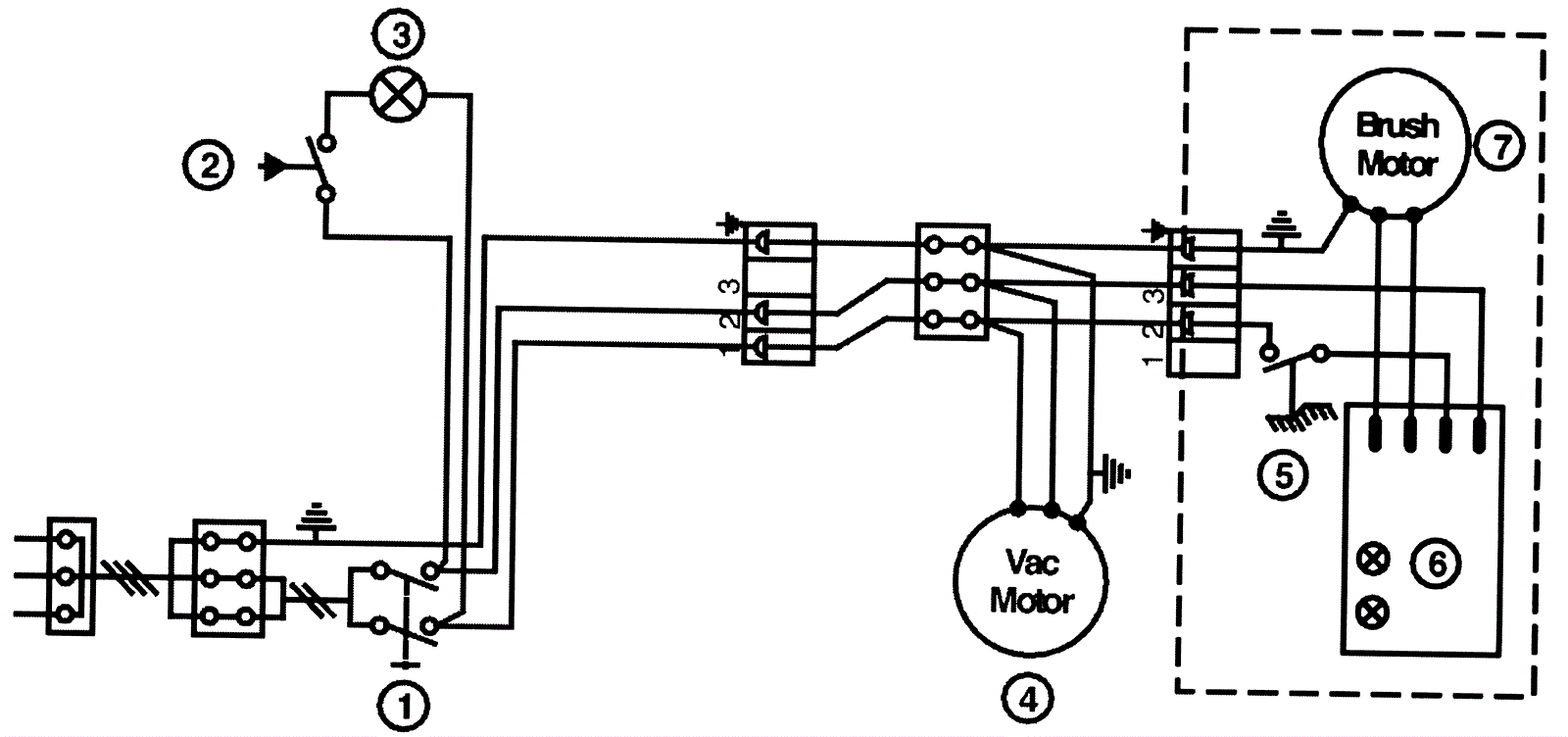

DURAVAC 152 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 172-0457 Master switch $89.65 1 ships same day
002 181-1204 Vacuum sensor $18.23 1 usually ships 9-12 days
003 172-1425 Red indicator light $6.19 1 usually ships 9-12 days
004a 181-0734 120V vacuum motor $157.32 1 ships same day
004b 272-6296 Carbon brush (pkg of 2) $29.70 1 usually ships 1-5 days
005 172-1249 Brush motor switch $13.13 1 ships same day
006 172-1245 Circuit board (OBSOLETE) $171.16 1 usually ships 1-5 days
007a 172-1242 120V brush motor $313.50 1 usually ships 3-4 days
007b 172-1243 Carbon brush (pkg of 2) $23.01 1 usually ships 17-28 days
