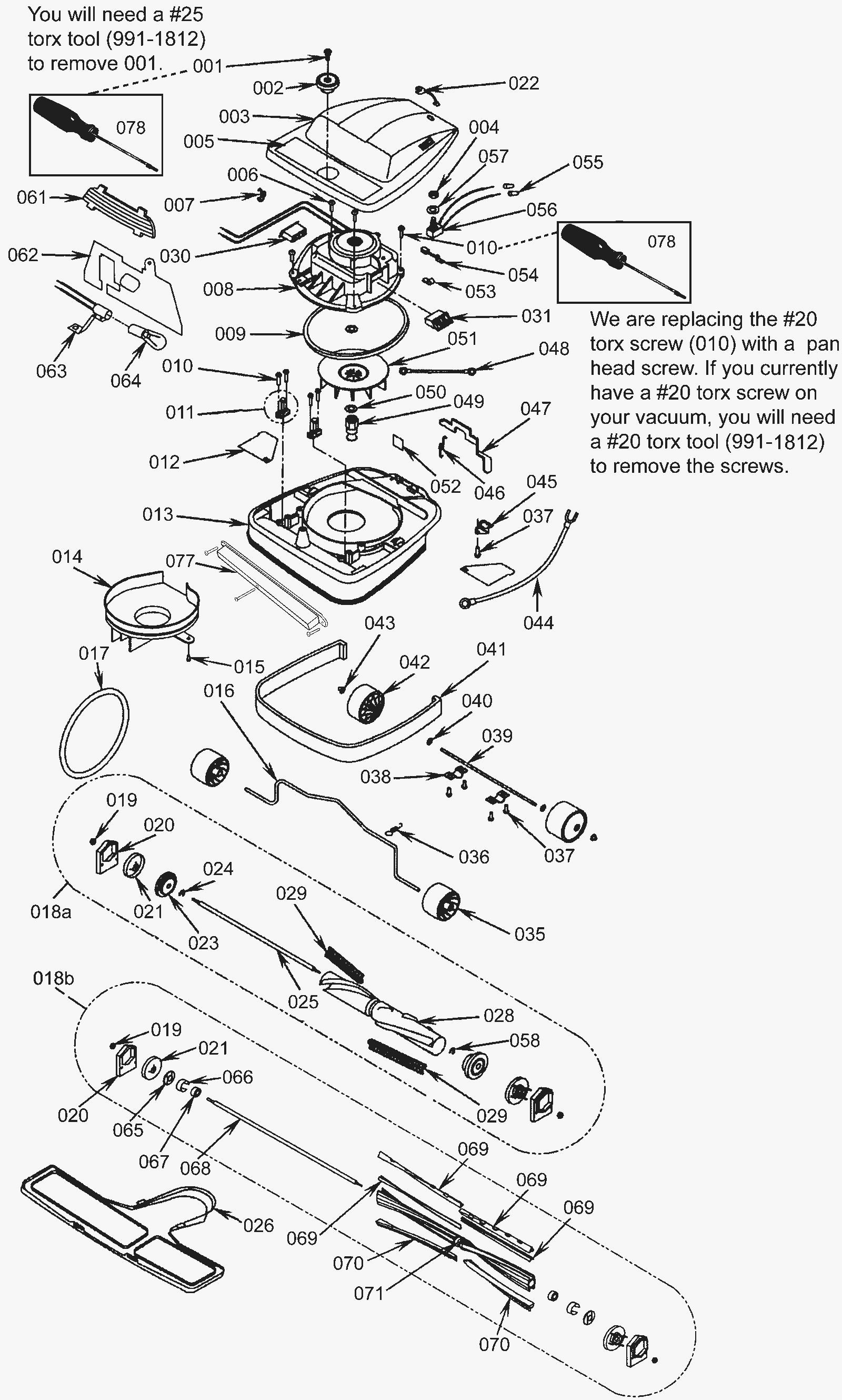

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
182-0003
|
Shoulder screw |
1 |
|
|
002 |
182-0117
|
Knob assembly (OBSOLETE) |
1 |
|
|
003a |
272-5001
|
Motor hood (gray) |
1 |
(for Reliavac 12 DC) |
|
003b |
182-0127
|
Motor hood and name plate assembly (red) |
1 |
(for Sanitaire) |
|
003c |
N/A
|
Not available |
1 |
(Motor hood with light lens) |
|
003d |
183-0430
|
Motor hood (black) |
1 |
(for Tornado) |
|
003e |
182-0151
|
Hood assembly |
1 |
(Model 888 only) |
|
003f |
182-0181
|
Hood assembly |
1 |
(Model SC689) |
|
004 |
272-5225
|
Switch nut |
1 |
|
|
005a |
N/A
|
Not available |
1 |
(SelectVac decal) |
|
005b |
182-0120
|
Sanitaire decal (OBSOLETE) |
1 |
|
|
006 |
182-0008
|
Motor mounting screw |
1 |
|
|
007 |
182-0124
|
Hood spring |
2 |
|
|
008 |
182-0009
|
120V vacuum motor assembly |
1 |
(includes 009) |
|
009 |
182-0010
|
Motor seal gasket |
2 |
(attaches to 014) |
|
010 |
182-0012
|
Screw 10-14 x .88 phillips pan plastite |
9 |
|
|
011 |
182-0013
|
Screw and clamp assembly |
2 |
|
|
012 |
182-0014
|
Wheel cover |
2 |
|
|
013a |
272-6258
|
Base assembly (gray) |
1 |
(for Advac and Reliavac 12 DC, fits all gray bases) |
|
013b |
182-0126
|
Base assembly without furniture guard (red) |
1 |
(for Sanitaire) |
|
013c |
183-0431
|
Base assembly (black) |
1 |
(for Tornado) |
|
013d |
182-0184
|
Base assembly |
1 |
(for Eureka model 888H and 888H-1 only) |
|
013e |
272-8561
|
Reliavac 12DC base assembly instruction sheet |
1 |
|
|
014 |
182-0113
|
Fan scroll cover |
1 |
(see reference 009 for gasket) |
|
015 |
182-0012
|
Screw 10-14 x .88 phillips pan plastite |
2 |
|
|
016 |
182-0035
|
Front axle |
1 |
|
|
017 |
991-0026
|
Brush roll belt rubber (black) |
1 |
|
|
018a |
182-8479
|
12 inch disturbulator assembly |
1 |
(SC887A, SC888H, 12, 12 DC, SC886) (OEM) (includes 019-021, 023-025, 028-029, and 058) |
|
018b |
172-8042
|
12 inch disturbulator assembly |
1 |
(12HP- Less expensive version is 182-0084 but it will not move as much air.) (includes 019-021, 065-071) |
|
018c |
182-0098
|
12 inch disturbulator assembly with cap covers |
1 |
(Models SC679J-1, SC679JGS, SC679JGS-1, SC689A, and SC689A-1) (OEM) |
|
018d |
991-9140
|
Brush roll (OBSOLETE) |
1 |
(NON-OEM for 182-0084) |
|
018e |
991-8599
|
12 inch disturbulator assembly with cap covers(OBSOLETE) |
1 |
(NON-OEM for 182-0098) |
|
019 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
020 |
182-0052
|
Cap |
2 |
|
|
021 |
182-0051
|
Disturbulator cap |
2 |
|
|
022 |
182-0017
|
Strain relief bushing |
1 |
|
|
023 |
182-0050
|
Bearing retainer (includes bearing) |
2 |
|
|
024 |
182-0038
|
Ring clip |
2 |
|
|
025 |
182-0039
|
Shaft |
1 |
|
|
026a |
182-0041
|
12 inch bottom plate assembly |
1 |
|
|
026b |
182-0040
|
Foam tape |
1 |
|
|
028 |
182-0036
|
Disturbulator tube |
1 |
|
|
029 |
182-8477
|
Orange bristle strip set |
1 |
|
|
030 |
182-0132
|
Right side air inlet duct |
1 |
|
|
031 |
182-0133
|
Left side air inlet duct |
1 |
|
|
035 |
182-0047
|
Front wheel |
2 |
|
|
036 |
182-0046
|
Axle spring |
1 |
|
|
037 |
182-0034
|
Screw 10-14 x 1/2 pan head plastite |
5 |
|
|
038 |
182-0033
|
Axle clamp |
2 |
|
|
039a |
182-0142
|
Wheel and axle assembly w/ hardware |
1 |
(includes 039b, 040 and 042) |
|
039b |
182-0043
|
Rear axle |
1 |
(040 is included. You will need to order 2 of 043. 043 is NOT included.) |
|
040 |
182-0044
|
Washer |
2 |
|
|
041 |
182-0141
|
12 inch bumper |
1 |
|
|
042 |
182-0045
|
Rear wheel |
2 |
|
|
043 |
182-0032
|
Push nut |
2 |
|
|
044 |
182-0129
|
Wire and terminal assembly |
1 |
|
|
045 |
182-0119
|
Bag clip retainer bracket |
1 |
|
|
046 |
182-0011
|
Foot pedal spring |
1 |
|
|
047 |
182-0023
|
Foot pedal |
1 |
|
|
048 |
182-0129
|
Wire and terminal assembly |
1 |
|
|
049 |
182-0072
|
Motor pulley |
1 |
|
|
050 |
182-0070
|
Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) |
2 |
|
|
051a |
182-0071
|
Fan |
1 |
|
|
051b |
272-9477
|
Pulley and fan kit (green) |
1 |
(lifetime warranty) |
|
052 |
N/A
|
Not available |
1 |
(Moving parts decal) (included in base assembly) |
|
053 |
182-0125
|
P clamp |
1 |
|
|
054 |
991-5101
|
Carbon brush (sold individually) |
2 |
|
|
055 |
998-0062
|
Wire nut (blue) |
3 |
|
|
056 |
182-0118
|
Push switch |
1 |
|
|
057 |
182-0123
|
Washer lock |
1 |
|
|
058 |
182-0049
|
Washer felt |
2 |
|
|
061a |
182-0152
|
Lens and housing assembly (OBSOLETE) |
1 |
(includes 061b) |
|
061b |
182-8102
|
Hood lens (OBSOLETE) |
1 |
|
|
062 |
182-0154
|
Light shield (OBSOLETE) |
1 |
|
|
063 |
182-0153
|
Headlight socket assembly |
1 |
|
|
064 |
992-9513
|
15watt double bulb |
1 |
|
|
065 |
172-8042
|
12 inch disturbulator assembly |
2 |
|
|
066 |
272-5169
|
Retaining ring (OBSOLETE) |
2 |
|
|
067 |
N/A
|
Not available |
2 |
(Ball bearing) |
|
068 |
182-0039
|
Shaft |
1 |
|
|
069 |
272-6280
|
12 inch beater bar assembly |
1 |
|
|
070 |
182-0362
|
12 inch bristle strip set |
1 |
|
|
071 |
N/A
|
Not available |
1 |
(Pulley) |
|
077a |
182-0784
|
12 inch magnet strip |
1 |
|
|
077b |
992-3111
|
12 inch magnet strip |
1 |
|
|
078 |
991-1812
|
Multi torx tool T9 - T40 (OBSOELTE) |
1 |
|
|
N/S |
272-6281
|
Light lens kit |
1 |
(Nilfisk OEM) |
|
N/S |
182-0116
|
Left side cam |
1 |
(included in base assembly) |
|
N/S |
272-6259
|
Wheel assembly |
1 |
(Nilfisk OEM) |
|
N/S |
272-6256
|
Base hardware kit |
1 |
(Nilfisk OEM) |
|
N/S |
182-0115
|
Right side cam |
1 |
(included in base assembly) |
|
N/S |
272-1682
|
Upright attachment kit (OBSOLETE) |
1 |
|
|
N/S |
272-6260
|
Air duct assembly |
1 |
(Nilfisk OEM) |
|
N/S |
182-0029
|
Cam rivet |
2 |
(included in base assembly) |
|
N/S |
992-1010
|
16 inch magnet strip |
1 |
|
|
