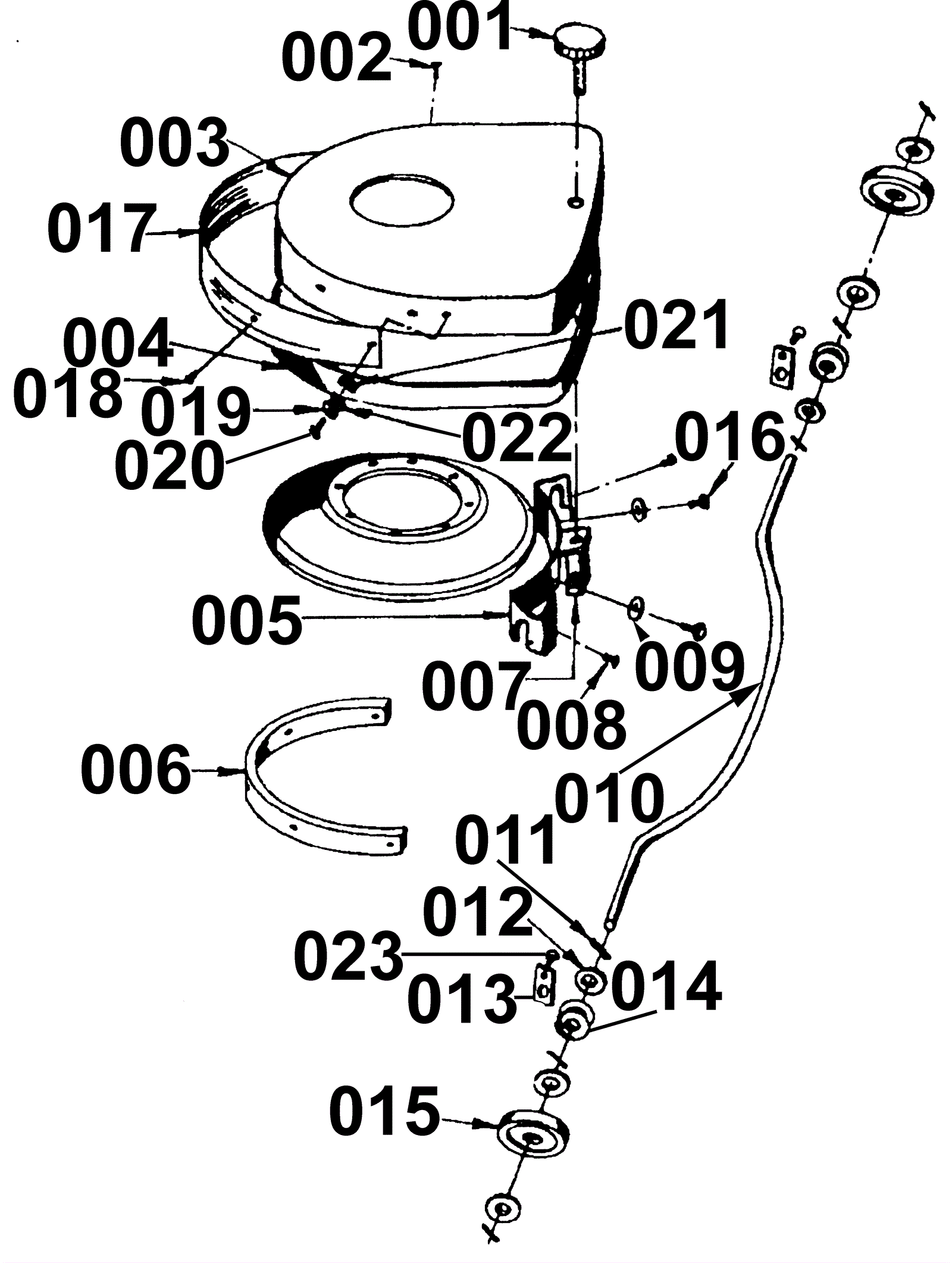

KF2500E Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 172-6595 Load adjust knob assembly (OBSOLETE) $47.30 1 usually ships 1-5 days
002 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 5 ships same day
003 N/A Not available Call for price 1 (Brush cover) usually ships 3-26 days
004 N/A Not available Call for price 1 (Vinyl extrision) usually ships 3-26 days
005 N/A Not available Call for price 1 Axle bracket weldment usually ships 3-26 days
006 172-7546 Steel bar (OBSOLETE) $107.25 1 usually ships 1-5 days
008 999-1164 Bolt 1/4-28 x 5/8 hex head stainless steel $0.99 2 ships same day
009 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 2 ships same day
010 172-7621 Axle (OBSOLETE) $151.94 1 usually ships 17-28 days
011 172-4337 Cotter pin 15/16 x 1/2 $11.75 6 usually ships 1-5 days
012 999-0120 Washer 3/8 SAE flat $0.99 6 ships same day
013 172-7691 Axle bushing bracket- 2500 high speed (OBSOLETE) $41.25 2 usually ships 1-5 days
014 172-7404 Grommet $12.31 2 usually ships 17-28 days
015 181-0317 Wheel $37.05 2 usually ships 17-28 days
016 999-0435 Screw 1/4-20 x 5/8 socket head alloy plain finish $0.99 2 ships same day
017 N/A Not available Call for price 1 Strip-formed guard usually ships 3-26 days
018 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 2 ships same day
019 999-0377 Washer 6 SAE flat plain finish $0.99 2 ships same day
020 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
021 999-0308 Nut 8-32 plain $0.99 2 ships same day
022 N/A Not available Call for price 2 Washer usually ships 3-26 days
023 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
