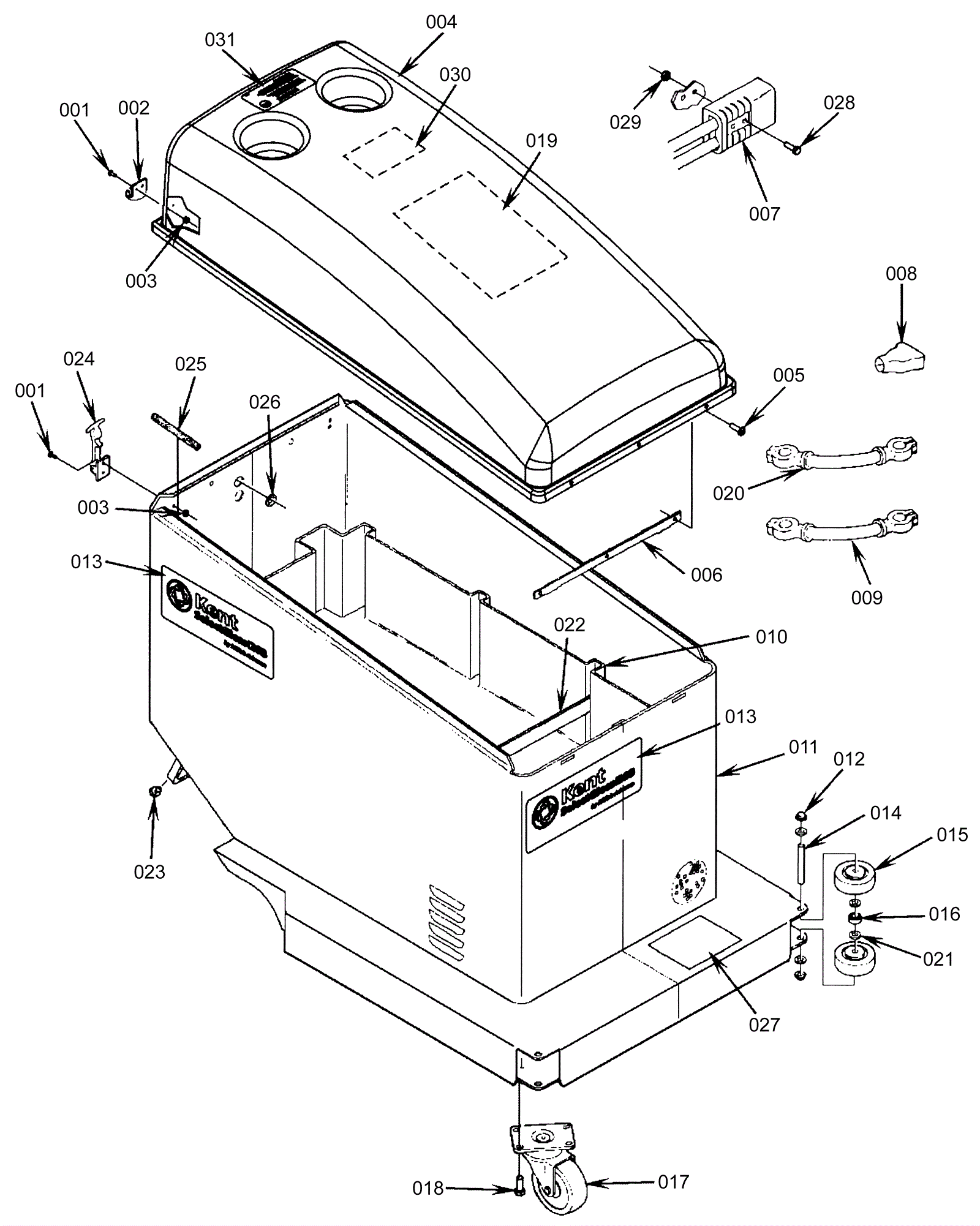

SELECTGLOSS 20B Chassis And Shroud Assembly

#PartDescriptionPriceReqNotesAvailability
000 181-1337 Shroud assembly (OBSOLETE) $673.53 1 usually ships 1-5 days
001 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated $0.99 8 ships same day
002 172-9713 Latch and keeper $37.61 2 usually ships 17-28 days
003 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 8 ships same day
004 181-0855 Shroud (OBSOLETE) $799.70 1 usually ships 1-5 days
005 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 3 ships same day
006 181-0857 Bracket $36.07 1 usually ships 1-5 days
007 181-0858 Dual connector assembly (OBSOLETE) $290.92 1 usually ships 17-28 days
008 172-0223 Battery cable boot $9.26 12 ships same day
009 172-0221 Battery cable assembly - clamp type $26.52 2 usually ships 17-28 days
010 181-0985 Battery tray $825.00 1 usually ships 1-5 days
011 181-1043 Chassis weldment (OBSOLETE) $1,019.92 1 usually ships 1-5 days
012 172-4142 Nut 3/8 push cap $10.85 4 usually ships 17-28 days
013 181-1057 SelectGloss 20B decal (OBSOLETE) $13.20 3 usually ships 1-5 days
014 181-1060 Pin $11.99 2 usually ships 17-28 days
015 172-0274 Guide wheel $16.50 4 usually ships 17-28 days
016 172-2569 Bushing $52.69 2 usually ships 17-28 days
017 172-2275 Caster wheel $115.52 2 usually ships 1-5 days
018 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 6 ships same day
019 181-1331 Maintenance decal (OBSOLETE) $18.26 1 usually ships 1-5 days
020 172-0222 Battery cable assembly - clamp type (OBSOLETE) $10.52 3 usually ships 17-28 days
021 272-1670 Washer 3/8 bowed $10.85 8 usually ships 17-28 days
022 181-1332 Battery retaining strap $61.41 1 usually ships 1-5 days
023 172-8189 Bumper $13.40 2 usually ships 1-5 days
024 172-9713 Latch and keeper $37.61 2 usually ships 17-28 days
025 181-1333 Trim $13.40 2 usually ships 1-5 days
026 172-0343 Grommet $12.31 2 usually ships 17-28 days
027 181-1334 Pad replacement decal $59.87 1 usually ships 1-5 days
028 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 2 ships same day
029 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
030 N/A Not available Call for price 1 (Wear items decal) usually ships 3-26 days
031 181-1336 Important decal (OBSOLETE) $7.81 1 usually ships 1-5 days
N/S 162-5063 36V 20amp battery charger with SB175 large gray plug $544.67 1 ships same day
N/S 272-0036 Red battery cable 4 gauge (OBSOLETE) $16.20 usually ships 17-28 days
N/S 272-0037 Black battery cable 4 gauge (OBSOLETE) $5.94 usually ships 1-5 days
N/S 162-0002 12V 185Ah wet battery (SNSR) $646.73 2 ships same day
N/S 162-0047 12V 215Ah AGM battery (Group J185) $907.50 2 ships same day
