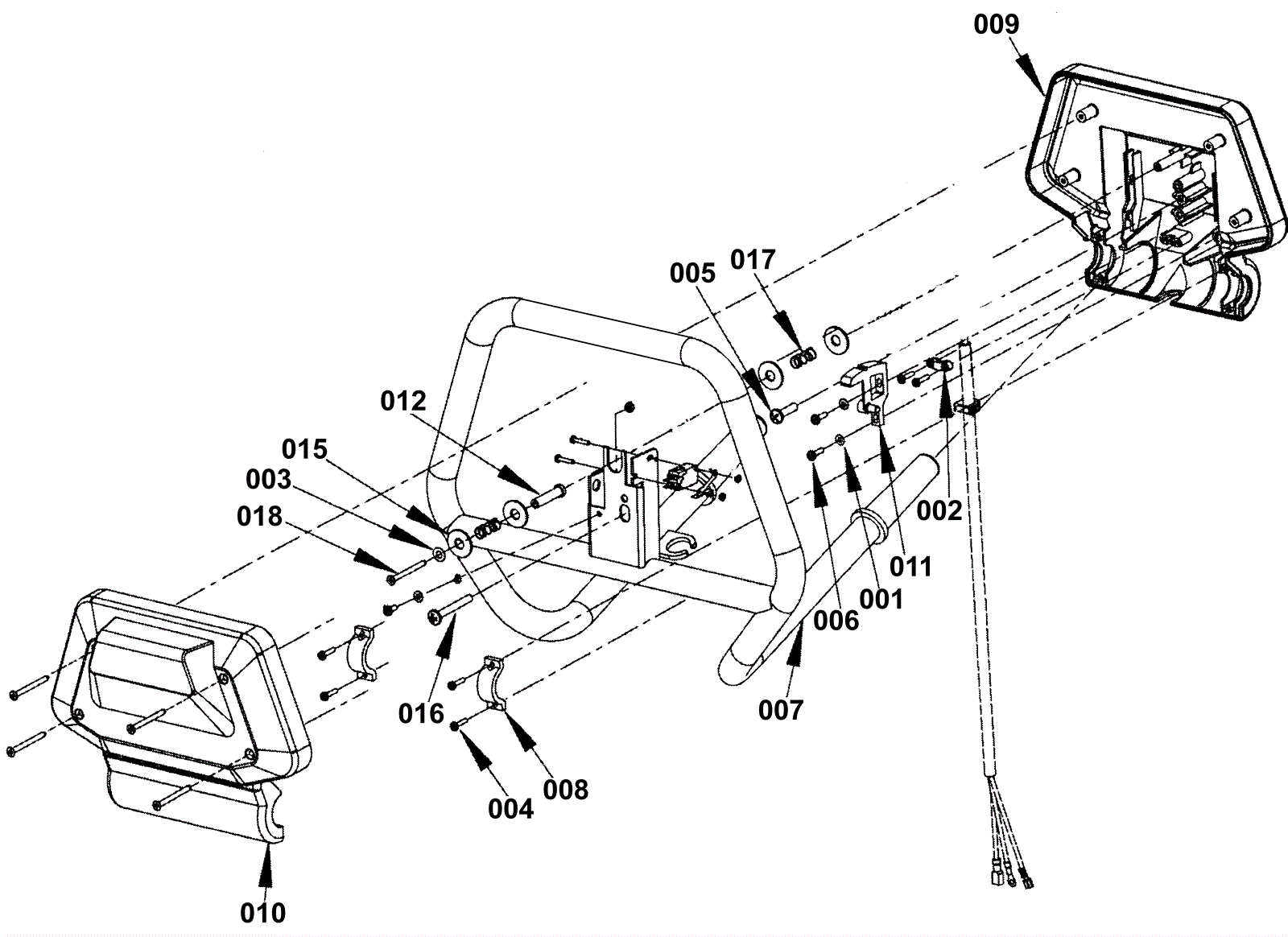

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-9089
|
Washer M4 flat stainless steel |
4 |
|
|
002 |
272-2693
|
Clamp (OBSOLETE) |
1 |
|
|
003 |
172-3762
|
Washer 6 X 12 1/2 flat (OBSOLETE) |
1 |
|
|
004 |
999-0738
|
Screw M3-.5 x 16mm pan head phillips zinc |
1 |
|
|
005 |
999-0518
|
Bolt M6-1 x 25mm hex head full thread zinc |
1 |
|
|
006 |
272-1957
|
Screw M4-.7 x 14mm |
2 |
|
|
007 |
272-1954
|
Handle bar (OBSOLETE) |
1 |
|
|
008 |
272-1958
|
Clamp |
2 |
|
|
009 |
172-4493
|
Rear switch housing |
1 |
|
|
010 |
272-1948
|
Front switch housing (OBSOLETE) |
1 |
|
|
011 |
272-6318
|
Micro switch cam |
1 |
|
|
012 |
272-1951
|
Sleeve |
1 |
|
|
015 |
272-1950
|
Washer M5 x 25mm plastic |
4 |
|
|
016 |
999-1991
|
Screw M6-1.0 x 50mm pan head phillips zinc |
1 |
|
|
017 |
172-2036
|
Compression spring |
2 |
|
|
018 |
272-1947
|
Screw flat head |
5 |
|
|
