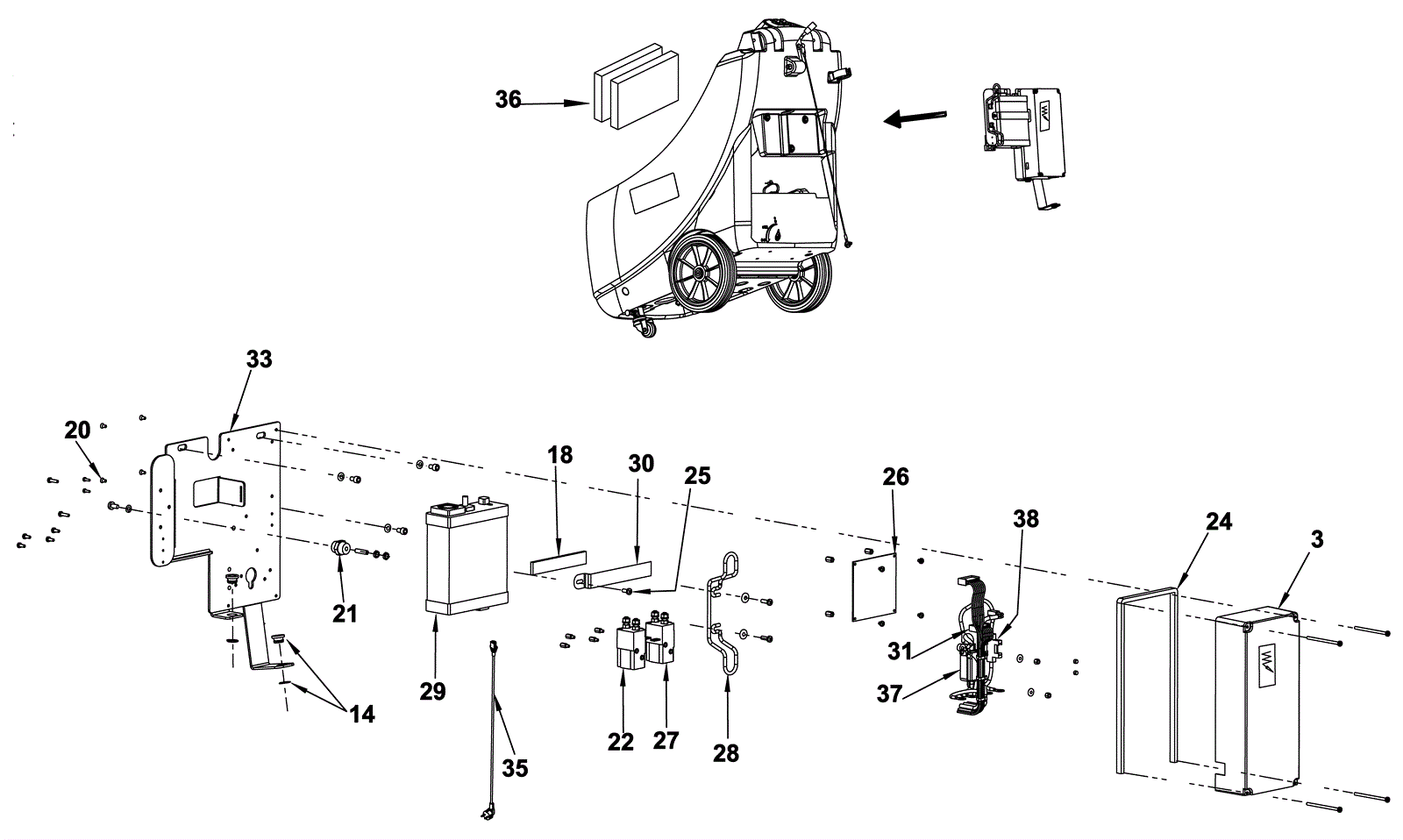

| # | Part | Description |
Req | Notes | Availability |
|---|
3 |
272-5509
|
Electronic cover card |
1 |
|
|
14 |
272-5512
|
Cable guide and retaining ring |
2 |
|
|
18 |
172-3820
|
Seal (OBSOLETE) |
1 |
|
|
20 |
172-3788
|
Screw M4x8 |
4 |
|
|
21 |
272-9579
|
Insulator |
1 |
|
|
22 |
272-7142
|
Electromagnetic switch |
1 |
|
|
24 |
272-5511
|
750mm gasket |
1 |
|
|
26 |
181-0957
|
Electronic card |
1 |
|
|
27 |
272-7141
|
24V switch |
1 |
|
|
28 |
272-0659
|
On-board charger cord wrap |
1 |
|
|
30a |
N/A
|
Not available |
1 |
(Bracket) |
|
30b |
170-9261
|
Battery charger bracket |
1 |
|
|
31a |
272-5515
|
Electronic card harness (OBSOLETE) |
1 |
|
|
31b |
272-5516
|
Electronic card harness (OBSOLETE) |
1 |
|
|
33 |
N/A
|
Not available |
1 |
(Electrical components fitting plate) |
|
35 |
272-9290
|
Onboard charger cord |
1 |
|
|
36 |
272-5517
|
Battery spacer |
2 |
|
|
37 |
181-0966
|
Fuse holder |
1 |
|
|
38 |
472-1367
|
HOLDER FUSE THERMOPL. UL 94-V0 |
1 |
|
|
N/S |
172-3006
|
Machine harness (OBSOLETE) |
1 |
|
|
N/S |
181-0962
|
5 amp fuse |
1 |
|
|
N/S |
272-6292
|
40amp brush fuse strip |
1 |
|
|
N/S |
272-7144
|
30amp fuse |
1 |
|
|
N/S |
272-5520
|
Power cable (OBSOLETE) |
1 |
|
|
N/S |
272-5521
|
Outlet cable (OBSOLETE) |
1 |
|
|
N/S |
272-5522
|
Cooling fan (OBSOLETE) |
1 |
|
|
N/S |
172-0223
|
Battery cable boot |
4 |
|
|
N/S |
272-5519
|
Battery harness |
1 |
|
|
N/S |
172-3007
|
Battery cable interconnect |
1 |
|
|
N/S |
272-5523
|
Wiring system hardware kit |
1 |
|
|
N/S |
181-0963
|
40amp fuse |
1 |
|
|
N/S |
372-1151
|
24V 8amp onboard battery charger |
1 |
|
|
N/S |
272-5525
|
Battery charger cover |
1 |
|
|
N/S |
372-1151
|
24V 8amp onboard battery charger |
1 |
|
|
N/S |
272-5527
|
Battery charger cap (OBSOLETE) |
1 |
|
|
N/S |
272-9142
|
24V 8amp battery charger (OBSOLETE) |
1 |
|
|
