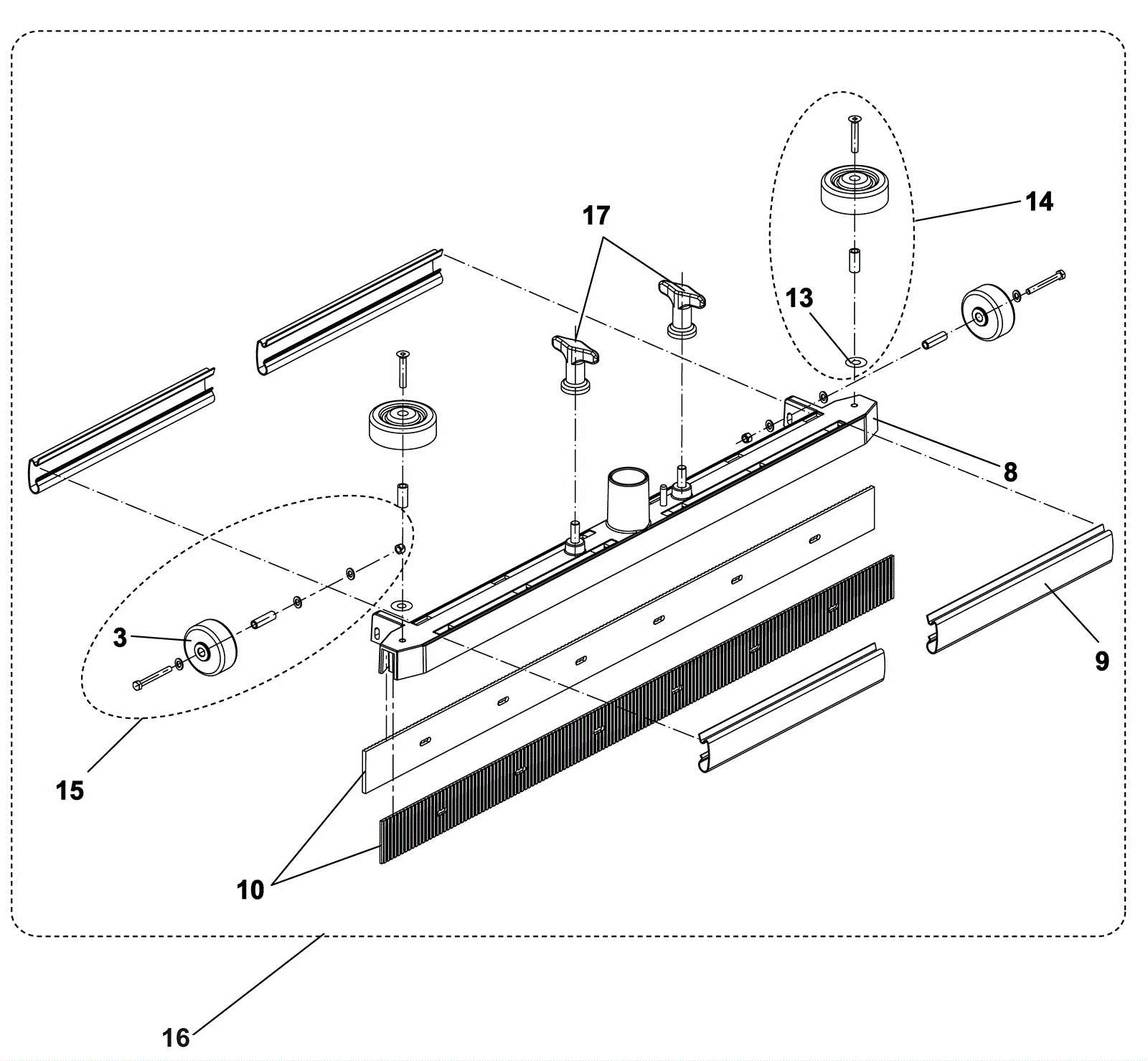

| # | Part | Description |
Req | Notes | Availability |
|---|
3 |
272-5476
|
Wheel |
2 |
|
|
8 |
272-5488
|
Squeegee weldment |
1 |
|
|
9 |
272-5319
|
Squeegee blade profile (pkg of 2) |
2 |
|
|
10 |
272-5318
|
Squeegee blade kit |
1 |
|
|
13 |
272-5489
|
Washer M6 x 18mm flathead stainless steel |
2 |
|
|
14 |
181-0937
|
Squeegee bumper roller kit |
1 |
|
|
15 |
272-5490
|
Squeegee wheel kit |
1 |
|
|
16 |
270-0105
|
Squeegee assembly |
1 |
(includes 3, 8-10 and 13-15) |
|
17 |
272-6579
|
Squeegee fixing kit |
1 |
|
|
N/S |
272-5491
|
Squeegee hardware kit |
1 |
|
|
N/S |
N/A
|
Not available |
1 |
(Curved squeegee kit) |
|
N/S |
N/A
|
Not available |
1 |
(Curved squeegee kit installation instructions) |
|
