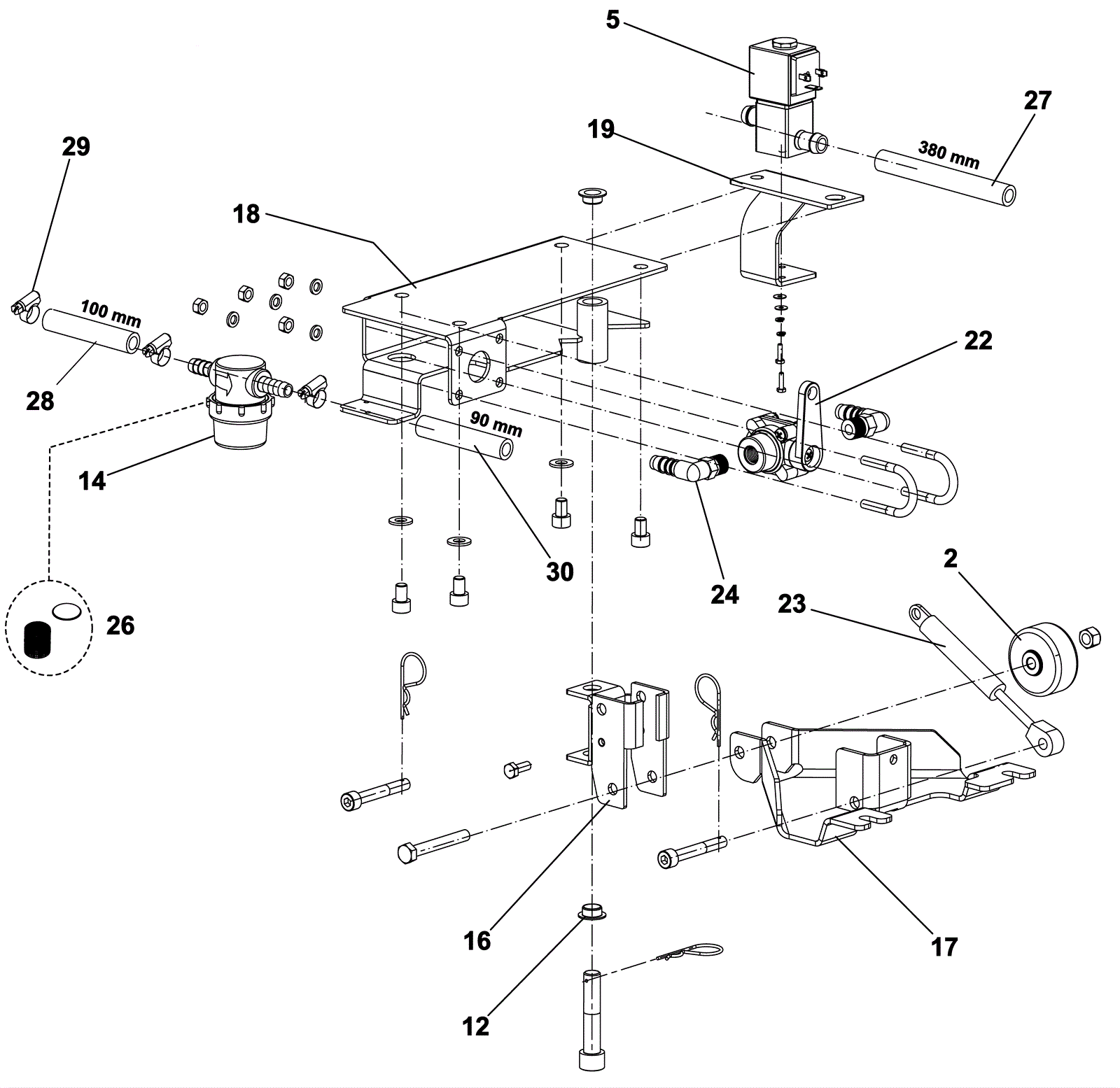

RAZOR SV17 Solution Assembly

#PartDescriptionPriceReqNotesAvailability
2 272-5476 Wheel $46.00 1 ships same day
5 272-5487 24V solenoid valve $160.86 1 ships same day
12 172-3717 Flanged bearing $15.48 2 usually ships 17-28 days
14 181-0924 Solution filter assembly $46.00 1 ships same day
16 170-9252 Bracket $69.30 1 usually ships 1-5 days
17 170-9253 Support (OBOLETE) $319.10 1 usually ships 17-28 days
18 170-9254 Plate $121.00 1 usually ships 1-5 days
19 272-5480 Bracket $69.96 1 usually ships 1-5 days
22 270-0104 Valve kit (OBSOLETE) $215.00 1 usually ships 17-28 days
23 270-0409 Gas spring $81.60 1 ships same day
24 272-5481 Rubber elbow holder $13.76 2 usually ships 17-28 days
26 181-0923 Solution screen and gasket kit $21.42 1 ships same day
27 272-5483 Hose 12 x 380mm $48.18 1 usually ships 17-28 days
28 272-7108 100mm hose $49.63 1 usually ships 17-28 days
29 272-2669 Hose clamp (OBSOLETE) $6.16 3 usually ships 17-28 days
30 272-5484 Hose 10 x 90mm $10.85 1 usually ships 17-28 days
N/S 272-5485 Connector $10.56 1 usually ships 1-5 days
N/S 181-1010 Solenoid valve kit (OBSOLETE) $850.19 1 usually ships 17-28 days
N/S 272-5486 Solution system hardware kit $79.84 1 usually ships 1-5 days
N/S N/A Not available Call for price 1 (Solenoid valve kit installation instructions) usually ships 3-26 days
