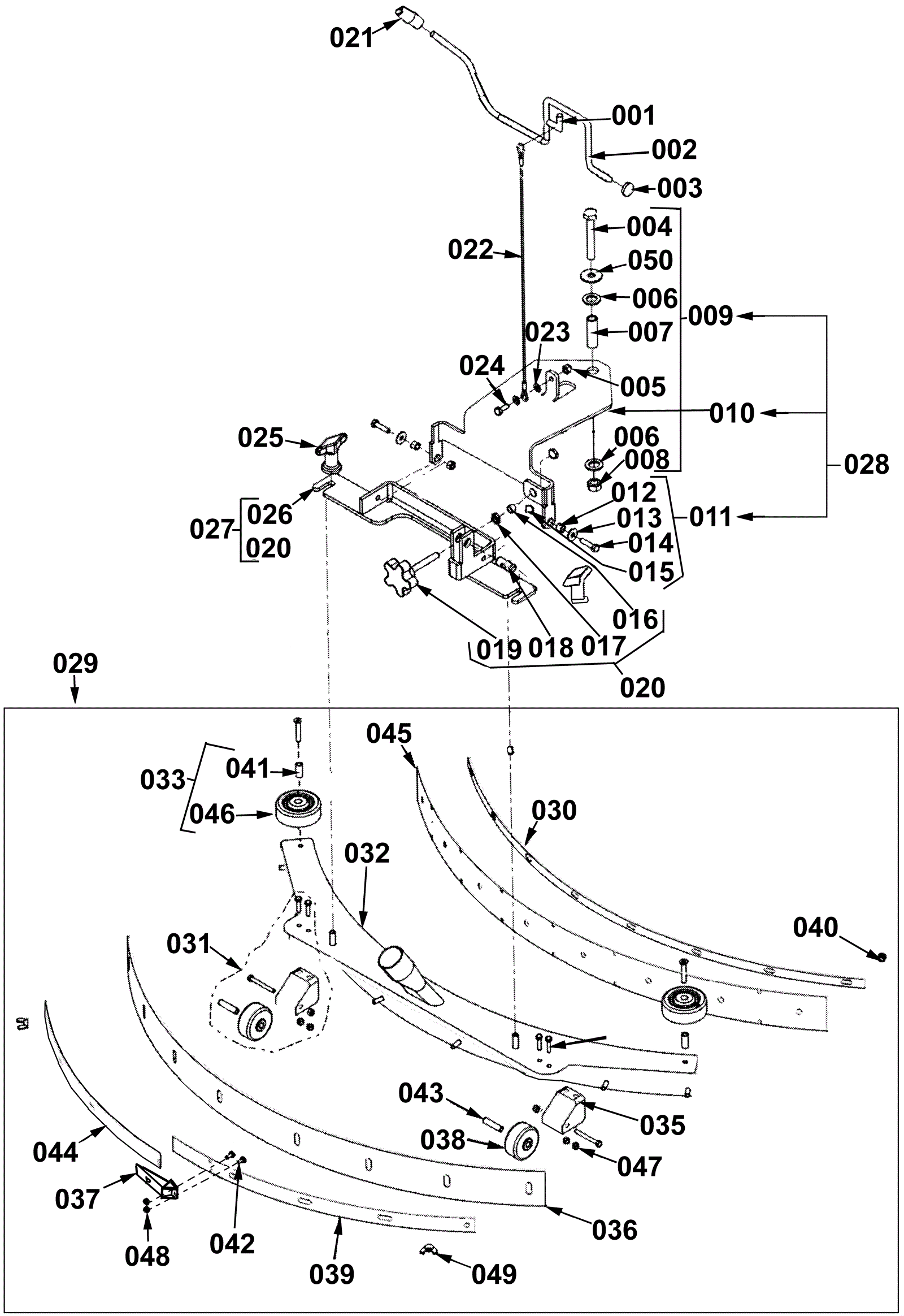

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
272-8031
|
Plug |
1 |
|
|
002 |
272-1991
|
Squeegee lever (OBSOLETE) |
1 |
|
|
003 |
272-1992
|
Cap (OBSOLETE) |
1 |
|
|
004 |
999-1263
|
Bolt M10-1.5 x 70mm hex head |
1 |
|
|
005 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
006 |
272-2000
|
Washer M15 x 25mm plain nylon |
2 |
|
|
007 |
272-2002
|
Spacer (OBSOLETE) |
1 |
|
|
008 |
272-2682
|
Nut (OBSOLETE) |
1 |
|
|
009 |
272-1997
|
Fixture kit (OBSOLETE) |
1 |
(includes 004 thru 008) |
|
010 |
272-1996
|
Squeegee support plate (OBSOLETE) |
1 |
|
|
011 |
272-1999
|
Squeegee support hardware kit |
1 |
(includes 012 thru 015) |
|
012 |
272-2022
|
Spacer (OBSOLETE) |
2 |
|
|
013 |
N/A
|
Not available |
2 |
(Washer M7 thick rubber) |
|
014 |
272-1937
|
Screw M6-1 x 25mm hex head |
2 |
|
|
015 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
016 |
272-2007
|
Spacer |
1 |
|
|
017 |
272-4756
|
Nut |
2 |
|
|
018 |
272-2009
|
Pin |
1 |
|
|
019 |
272-2005
|
Knob (OBSOLETE) |
1 |
|
|
020 |
272-2008
|
Adjustment screw kit |
1 |
(includes 016 thru 019) |
|
021 |
272-1990
|
Ball grip |
1 |
|
|
022 |
272-1993
|
Squeegee lift cable |
1 |
|
|
023 |
N/A
|
Not available |
2 |
(Washer M7 thick rubber) |
|
024 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
|
025 |
172-4099
|
Nut 5/16-18 thumb |
2 |
|
|
026 |
272-2004
|
Squeegee mounting bracket |
1 |
|
|
027 |
272-2003
|
Squeegee mounting weldment assembly (OBSOLETE) |
1 |
(includes 020 thru 026) |
|
028 |
272-1995
|
Linkage arm assembly (OBSOLETE) |
1 |
(includes 009 thru 011) |
|
029 |
272-2020
|
Squeegee assembly |
1 |
(includes 030 thru 049) |
|
030 |
272-2683
|
Front squeegee strap (OBSOLETE) |
1 |
|
|
031 |
181-0936
|
Squeegee wheel kit |
1 |
(includes 034, 035, 038, 043, 047) |
|
032 |
181-0928
|
Squeegee weldment (OBSOLETE) |
1 |
|
|
033 |
181-0937
|
Squeegee bumper roller kit |
1 |
(includes 041 and 046) |
|
034 |
172-4207
|
Screw M5 x 20mm hex head stainless steel (OBSOLETE) |
1 |
|
|
035 |
272-2017
|
Wheel bracket (OBSOLETE) |
2 |
|
|
036a |
272-2026
|
Squeegee blade kit gum rubber |
1 |
|
|
036b |
994-0062
|
Squeegee blade 33 inch gum rubber rear (tan) |
1 |
(NON-OEM) |
|
036c |
991-3110
|
20 inch squeegee blade kit Linatex |
1 |
(NON-OEM) |
|
037 |
172-0094
|
Latch |
1 |
|
|
038 |
N/A
|
Not available |
2 |
Vacuum transition mounting bracket |
|
039 |
272-6638
|
Left rear strap (OBSOLETE) |
1 |
|
|
040 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
8 |
|
|
041 |
170-9256
|
Spacer (OBSOLETE) |
2 |
|
|
042 |
999-9101
|
Screw M4-.7 x 10mm pan head stainless steel |
2 |
|
|
043 |
181-0929
|
Spacer (OBSOELTE) |
2 |
|
|
044 |
172-0498
|
Right rear strap (OBSOLETE) |
1 |
|
|
045 |
994-0061
|
Squeegee blade 31 inch neoprene front (black) |
1 |
|
|
046 |
172-0274
|
Guide wheel |
2 |
|
|
047 |
272-0770
|
Nut M5 self-locking (OBSOLETE) |
6 |
|
|
048 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
049 |
272-0772
|
Nut M6 wing (pkg 5) |
2 |
|
|
050 |
999-1262
|
Washer M10 flat |
1 |
|
|
