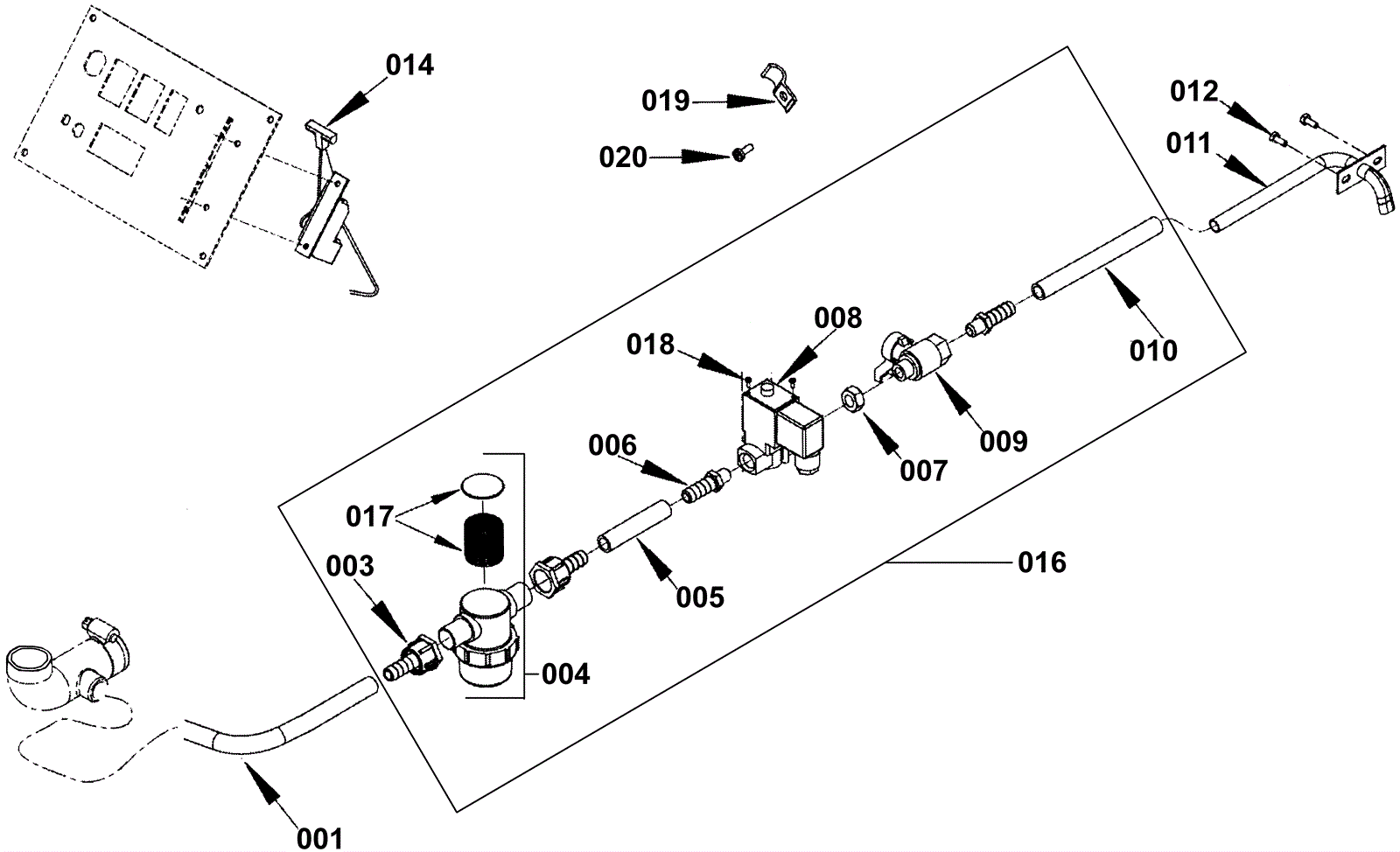

Solution Assembly

#PartDescription ReqNotesAvailability
001 N/A Not available 1 Hose
003 181-0924 Solution filter assembly 2 (Hosebarb no longer sold alone.)
004 181-0924 Solution filter assembly 1 (includes 002, 003 and 017)
005 172-4229 Hose 1
006 272-1978 Rubber barb 2
007 272-7117 Nut 1
008 181-0921 24V solenoid valve 1
009 N/A Not available 1 (Ball valve)
010 172-4485 Hose (OBSOLETE) 1
011 272-1970 Hose assembly 1
012 172-3796 Screw M4-.7 x 8mm 2
014a 181-0951 Handle for lever 1
014b 272-1961 Lever with cable (OBSOLETE) 1
016 272-1979 Solenoid valve assembly 1 (includes 002 thru 010 and 018)
017 181-0923 Solution screen and gasket kit 1
018 N/A Not available 2 (Screw M4-.7 x 10mm flat head phillips)
020 172-3784 Screw M6-1 x 8mm hex head (OBSOLETE) 1
