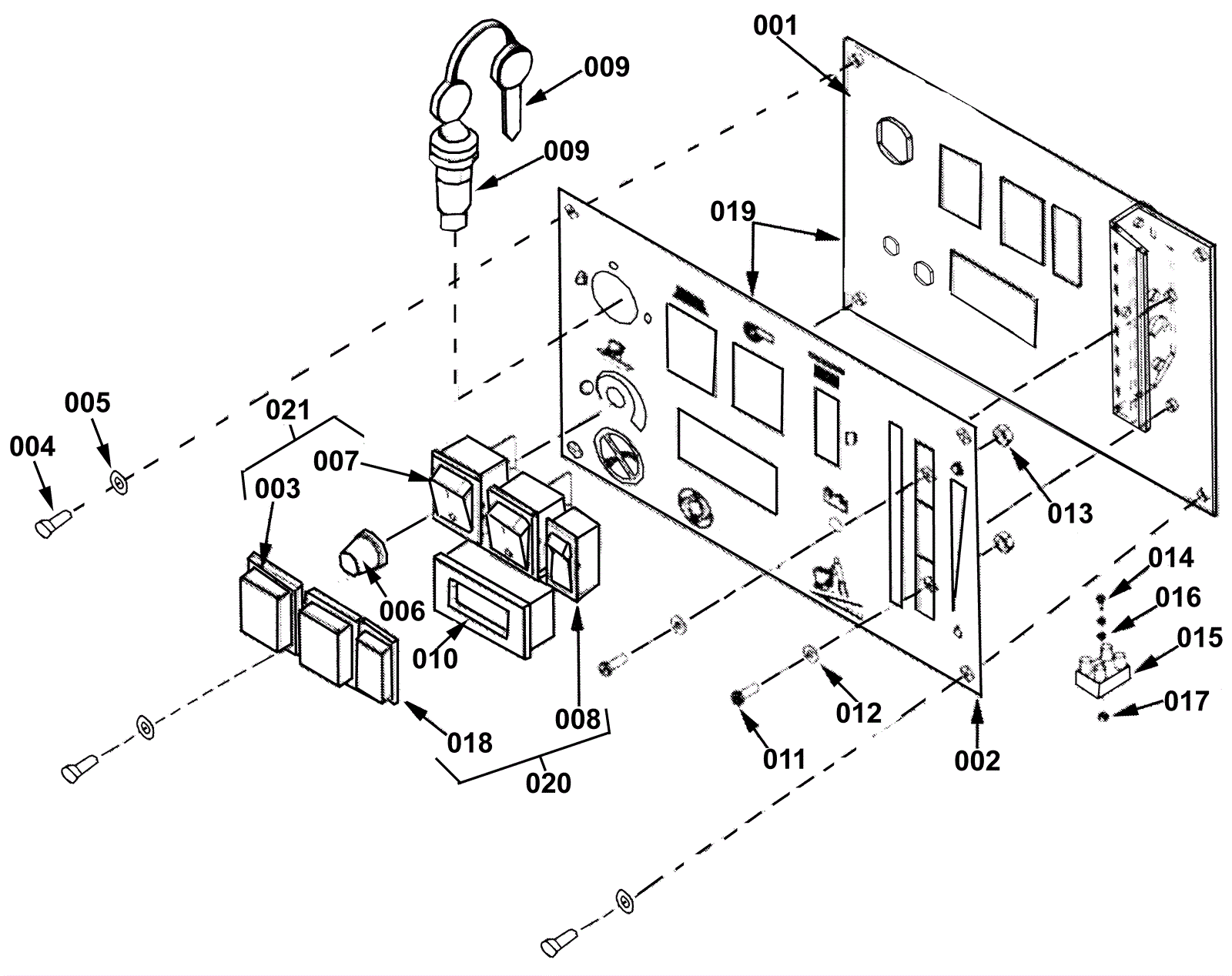

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
172-2388
|
Control panel (OBSOLETE) |
1 |
|
|
002a |
172-2389
|
BA5321 decal (OBSOLETE) |
1 |
|
|
002b |
172-2390
|
BA5321D decal (OBSOLETE) |
1 |
|
|
003 |
172-0805
|
Switch boots with seal (OBSOLETE) |
2 |
|
|
004 |
172-2391
|
Screw M3-.5 x 12mm (OBSOLETE) |
4 |
|
|
005 |
999-9089
|
Washer M4 flat stainless steel |
4 |
|
|
006 |
272-2566
|
Knob (OBSOLETE) |
1 |
|
|
007 |
272-2708
|
Switch kit |
2 |
(pump and vacuum) |
|
008 |
172-2393
|
Rocker switch (OBSOLETE) |
1 |
|
|
009a |
172-1853
|
Key switch assembly |
1 |
|
|
009b |
172-2408
|
Key |
1 |
|
|
010 |
272-9274
|
24V hour meter |
1 |
|
|
011 |
172-2395
|
Screw M4-.7 x 10 cylinder head |
2 |
|
|
012 |
172-2396
|
Washer 4 x 9 flat (OBSOLETE) |
2 |
|
|
013 |
999-0869
|
Nut M4-.7 hex coarse thread plain finish |
2 |
|
|
014 |
999-1221
|
Screw M3-.5 x 25mm pan head stainless steel |
1 |
|
|
015 |
172-2399
|
Terminal block (OBSOLETE) |
1 |
|
|
016 |
172-2400
|
Washer (OBSOLETE) |
2 |
|
|
017 |
999-0768
|
Nut M3-.5 hex coarse thread plain finish |
1 |
|
|
018 |
172-2402
|
Bracket assembly (OBSOLETE) |
1 |
|
|
019a |
N/A
|
Not available |
1 |
(with traction) |
|
019b |
172-2404
|
Switch panel (OBSOLETE) |
1 |
(without traction) |
|
020 |
172-2407
|
Switch kit |
1 |
(includes 008 and 018) |
|
022 |
172-2408
|
Key |
1 |
|
|
KIT |
172-2405
|
Control panel kit (OBSOLETE) |
1 |
(BA5321) |
|
KIT |
172-2406
|
Control panel kit (OBSOLETE) |
1 |
(BA5321D) |
|
