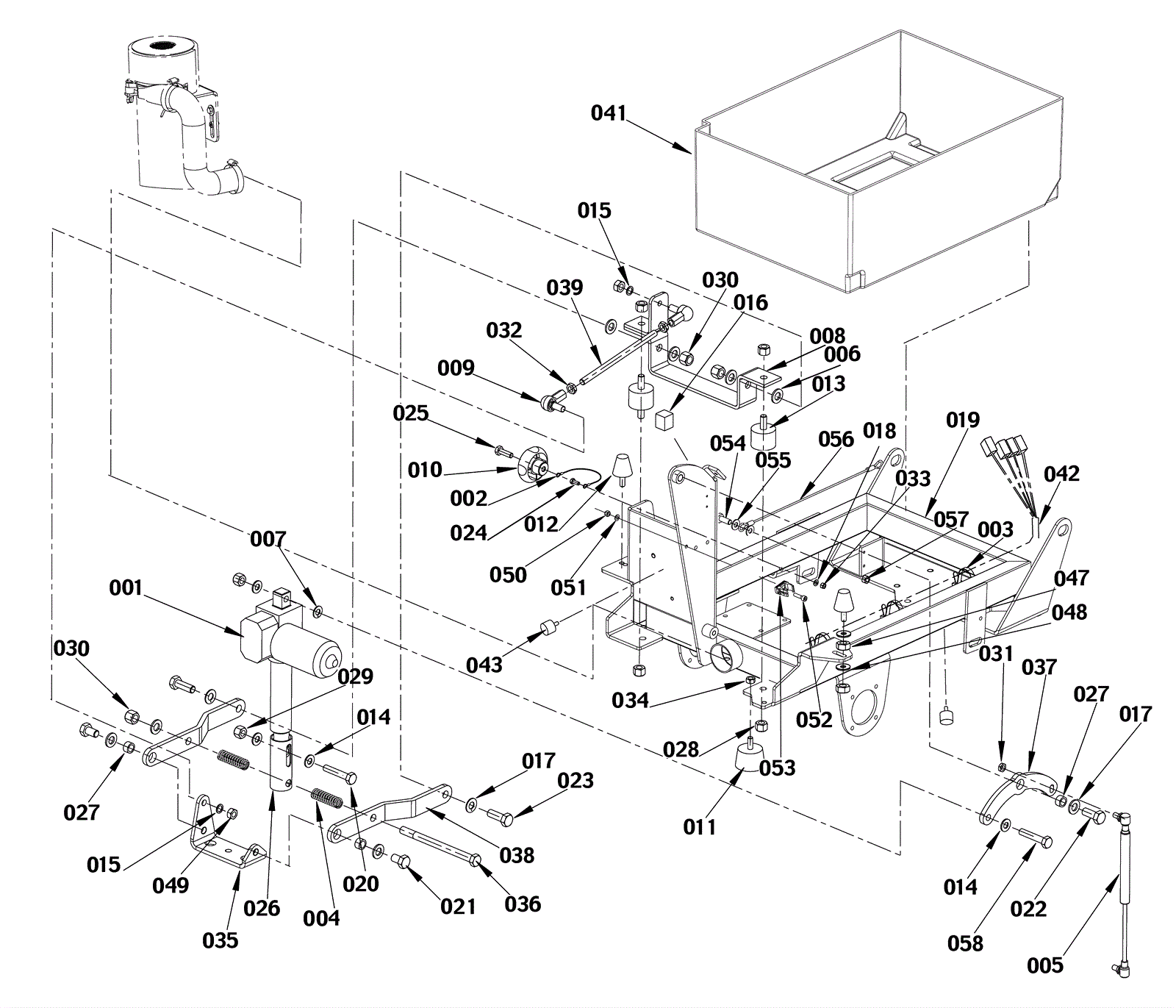

Razorplus 28C Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 272-0815 Actuator 24v $792.00 1 usually ships 1-5 days
002 272-0830 Handwheel kit $15.95 1 (Cable) usually ships 1-5 days
003 272-0816 Clamp $10.01 3 usually ships 1-5 days
004 272-0831 Hardware fixing kit $136.40 2 (Spring) usually ships 1-5 days
005 272-0817 Spring (OBSOLETE) $73.04 1 usually ships 1-5 days
006 172-4496 Washer $8.80 2 usually ships 16-41 days
008 272-0818 Support (OBSOLETE) $64.02 1 usually ships 1-5 days
009 272-0829 Bar thread kit $53.90 2 (Articulated head) usually ships 1-5 days
010 272-0830 Handwheel kit $15.95 1 (Handwheel) usually ships 1-5 days
011 272-0819 Vibration damping (OBSOLETE) $5.94 1 (Only used on Disk models) usually ships 16-41 days
012 272-0820 Vibration damping (OBSOLETE) $23.65 2 usually ships 1-5 days
013 272-0821 Vibration damping $22.48 2 usually ships 1-5 days
016 991-2102 50amp charger plug SB50 only (red) $13.95 1 ships same day
018 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
019 272-0822 Chassis (OBSOLETE) $441.94 1 usually ships 1-5 days
024 999-1212 Screw 10-32 x 1/2 hex head stainless steel $0.99 1 (Screw) ships same day
025 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 (Screw) ships same day
026 272-0823 Jack motor tube $25.30 1 usually ships 1-5 days
027a 272-0831 Hardware fixing kit $136.40 2 (Spacer - Available in both the Hardware fixing kit or the Lever kit) usually ships 1-5 days
027b 272-0832 Lever kit (OBSOLETE) $59.77 2 (Spacer - Available in both the Hardware fixing kit or the Lever kit) usually ships 1-5 days
028 272-8254 Nut M10 self lock hex head $10.71 4 usually ships 1-5 days
033 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 (Nut) ships same day
034 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 1 (Only used on Disk models) ships same day
035 272-0825 Bracket $52.80 1 usually ships 1-5 days
037 272-0832 Lever kit (OBSOLETE) $59.77 1 (Lever) usually ships 1-5 days
038 272-0826 Lever (OBSOLETE) $32.45 2 usually ships 1-5 days
039 272-0829 Bar thread kit $53.90 1 (Threaded bar) usually ships 1-5 days
040 272-0829 Bar thread kit $53.90 1 (Includes items 009, 015, 032, and 039) usually ships 1-5 days
041 272-0828 Battery container (OBSOLETE) $122.17 1 usually ships 1-5 days
042 272-0687 Machine harness (OBSOLETE) $433.36 1 usually ships 1-5 days
043 272-0827 Vibration damping (OBSOLETE) $13.75 2 usually ships 1-5 days
044 272-0830 Handwheel kit $15.95 1 (Includes items 002, 010, 018, 024, 025 and 033) usually ships 1-5 days
045 272-0831 Hardware fixing kit $136.40 1 (Includes items 004, 014, 015, 017, 020, 021, 023, 027, 029, 030, 036-049) usually ships 1-5 days
046 272-0832 Lever kit (OBSOLETE) $59.77 1 (Includes items 007, 014, 017, 022, 027, 031, 037 and 058) usually ships 1-5 days
047 272-0833 Nut m8 hex low (OBSOLETE) $6.29 2 usually ships 1-5 days
048 999-1267 Washer M8 flat zinc $0.99 2 ships same day
050 272-0770 Nut M5 self-locking (OBSOLETE) $9.24 1 (Only used on Cylindrical models) usually ships 1-5 days
051 999-9100 Washer M5 flat stainless steel $5.83 1 (Only used on Cylindrical models) ships same day
052 999-0886 Screw M5-.8 x 20mm pan head slotted zinc $0.99 1 (Only used on Cylindrical models) ships same day
053 272-0834 Hose clamp (OBSOLETE) $7.65 1 (Only used on Cylindrical models) usually ships 1-5 days
054 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 1 ships same day
055 999-1267 Washer M8 flat zinc $0.99 2 ships same day
056 272-0835 Cable tank block (OBSOLETE) $9.47 1 usually ships 1-5 days
057 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 (Only used on Cylindrical models) ships same day
