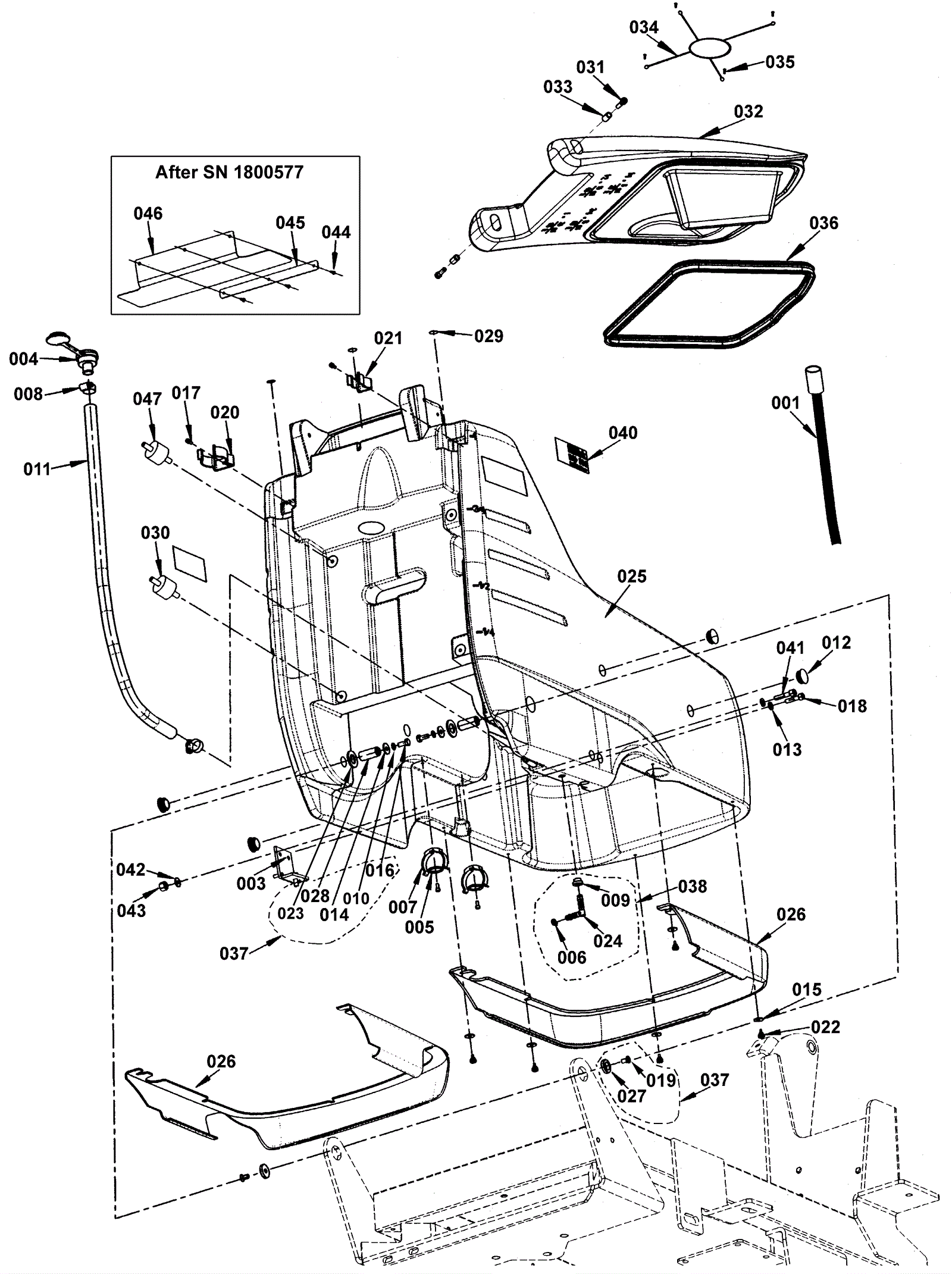

Razorplus 28C Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 272-9646 Hose filling $51.28 1 (Optional) usually ships 16-41 days
003 272-0848 Tank fixing bracket (OBSOLETE) $18.81 1 usually ships 1-5 days
004 272-0849 Solution hose plug $22.41 1 usually ships 16-41 days
005 172-4470 O-ring (OBSOLETE) $10.52 2 usually ships 16-41 days
006 272-0861 Solution tank elbow kit (OBSOLETE) $16.28 1 (Clamp) usually ships 1-5 days
007 172-8903 Hose clamp $10.52 2 usually ships 16-41 days
008 172-4693 Hose clamp $11.99 2 usually ships 16-41 days
009 272-0861 Solution tank elbow kit (OBSOLETE) $16.28 1 (Gasket) usually ships 1-5 days
011 272-0850 Solution hose (OBSOLETE) $23.87 1 usually ships 16-41 days
012 172-4695 Locking tank cap $16.50 4 usually ships 16-41 days
013 999-1267 Washer M8 flat zinc $0.99 2 ships same day
014 999-0412 Washer #8 SAE flat $0.99 2 ships same day
015 999-9100 Washer M5 flat stainless steel $5.83 5 ships same day
016 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
017 272-0619 Screw m5 x 12 socket head (OBSOLETE) $6.29 4 usually ships 1-5 days
018 170-9065 28 inch plate weldment $358.11 1 usually ships 16-41 days
020 172-4857 Hose clamp $11.99 1 usually ships 16-41 days
021 172-5086 Clamp $10.52 1 usually ships 1-5 days
022 272-0853 Handwheel m5 x 10 $10.23 5 usually ships 1-5 days
024 272-0861 Solution tank elbow kit (OBSOLETE) $16.28 1 (Elbow) usually ships 1-5 days
025 272-0620 Recovery tank kit (OBSOLETE) $505.22 1 usually ships 1-5 days
026a 272-0855 Front bumper for disk deck $79.20 1 usually ships 1-5 days
026b 272-0856 Front bumper for cylindrical deck (OBSOLETE) $95.48 1 usually ships 1-5 days
027 272-0860 Tank fitting kit (OBSOLETE) $63.77 2 (Bushing) usually ships 1-5 days
028 272-0860 Tank fitting kit (OBSOLETE) $63.77 2 (Pin) usually ships 1-5 days
029 272-0847 Razor Plus decal kit (OBSOLETE) $37.95 2 (Water faucet decal) usually ships 1-5 days
030 272-8070 Rubber buffer $13.40 2 usually ships 16-41 days
031 999-1300 Screw M6-1 x 25mm socket head stainless steel $1.10 2 usually ships 1-5 days
032 272-0858 Tank cover (OBSOLETE) $160.97 1 usually ships 16-41 days
033 172-4473 Sleeve $10.52 2 usually ships 16-41 days
034 272-0859 Rubber band (OBSOLETE) $16.83 1 usually ships 1-5 days
035 272-1957 Screw M4-.7 x 14mm $9.35 4 usually ships 1-5 days
036 181-2002 Recovery tank lid gasket $53.54 1 ships same day
037 272-0860 Tank fitting kit (OBSOLETE) $63.77 1 (Includes items 010, 014, 016, 019, 023, 027 and 028) usually ships 1-5 days
038 272-0861 Solution tank elbow kit (OBSOLETE) $16.28 1 (Includes items 006, 009, and 024) usually ships 1-5 days
040 272-0847 Razor Plus decal kit (OBSOLETE) $37.95 2 (Razor Plus decal) usually ships 1-5 days
041 272-7154 Screw M8 x 50mm $11.99 1 usually ships 16-41 days
042 999-1267 Washer M8 flat zinc $0.99 1 ships same day
043 272-8021 Vacuum hose assembly with cuff (OBSOLETE) $36.70 1 usually ships 16-41 days
044 272-0862 Screw M9 x 16mm thread forming (OBSOLETE) $7.92 3 (For machiens after SN 1800577) usually ships 16-41 days
045 272-0863 Rubber fixing plate (OBSOLETE) $16.31 1 (For machiens after SN 1800577) usually ships 1-5 days
046 272-0864 Water protection rubber $13.22 1 (For machiens after SN 1800577) usually ships 1-5 days
047 272-7155 Column plate support $16.39 2 usually ships 16-41 days
N/S 272-3540 Solution drain hose $52.69 1 usually ships 16-41 days
