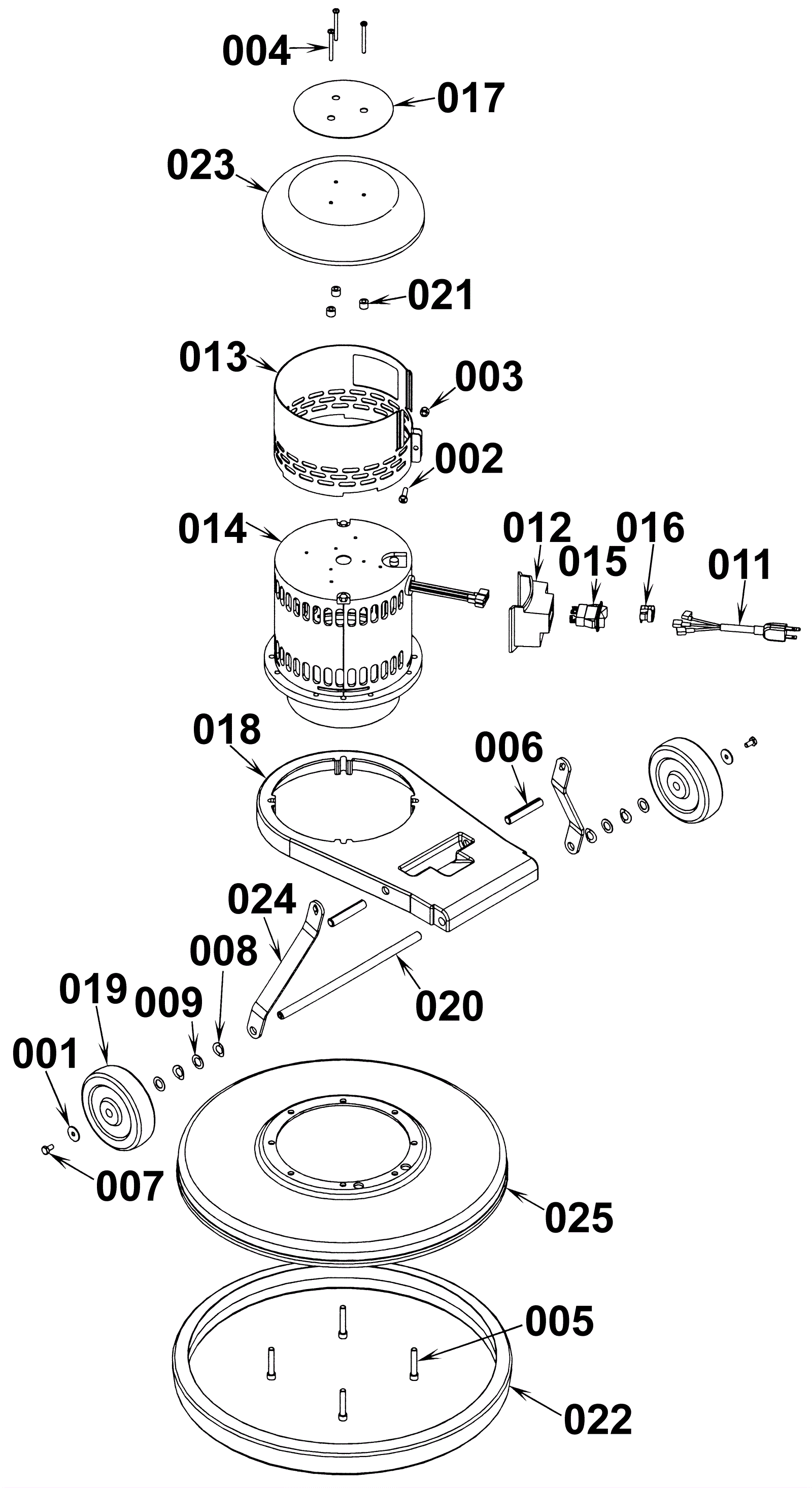

SELECTLINE 20TS Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 172-0553 Washer 17/64 x 1/16 flat $9.60 2 usually ships 16-41 days
002 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 1 ships same day
003 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
004 999-1818 Screw 10-32 x 2 pan head phillips stainless steel $1.80 3 ships same day
005 999-0446 Screw 5/16-18 x 1 3/4 round head slotted zinc plated $0.99 6 ships same day
006 172-0893 Spacer pin 1/2 x 2 3/4 $8.43 2 usually ships 1-5 days
007 272-9727 Screw 1/4-20 x 1/2 hex head lock $10.90 2 usually ships 1-5 days
008 172-4550 Washer 33/64 x 1/64 bowed $10.90 4 usually ships 16-41 days
009 181-0109 Washer 17/32 x 7/8 x 1/32 flat $9.56 4 usually ships 16-41 days
011 172-0894 Cord set (OBSOLETE) $41.00 1 usually ships 16-41 days
012 172-0895 Switch housing (OBSOLETE) $41.58 1 usually ships 1-5 days
013 172-0896 Screen (OBSOLETE) $499.50 1 usually ships 1-5 days
014 181-0781 Gearbox only (OBSOLETE) $729.43 1 usually ships 1-5 days
015 172-8217 Rocker switch (OBSOLETE) $44.38 1 usually ships 16-41 days
016 172-4595 Strain relief $12.18 1 usually ships 16-41 days
017a N/A Not available Call for price 1 (17SL2) usually ships 3-26 days
017b N/A Not available Call for price 1 (20SL2) usually ships 3-26 days
018 172-0913 Floor machine frame (OBSOLETE) $51.84 1 usually ships 1-5 days
019 172-3050 5 inch wheel $24.23 2 usually ships 7-17 days
020 172-3049 Axle (OBSOLETE) $46.00 1 usually ships 16-41 days
021 181-0176 Phenolic spacer $12.18 3 usually ships 1-5 days
022a 172-0914 Bumper 17 inch floor machine (OBSOLETE) $57.66 1 (17FM) usually ships 16-41 days
022b 172-0915 20 inch bumper $77.49 1 (20FM) usually ships 16-41 days
023 172-0916 Motor drip cover (OBSOLETE) $20.74 1 usually ships 1-5 days
024 172-0917 Connecting leg (OBSOLETE) $204.91 2 usually ships 1-5 days
025a 172-0918 Brush cover 17 inch (OBSOLETE) $63.72 1 (17 inch) usually ships 1-5 days
025b 172-0919 Brush cover 20 inch (OBSOLETE) $388.80 1 (20 inch) usually ships 1-5 days
N/S 172-0898 Motor assembly 2 speed 115 volts (OBSOLETE) $1,380.24 1 usually ships 1-5 days
