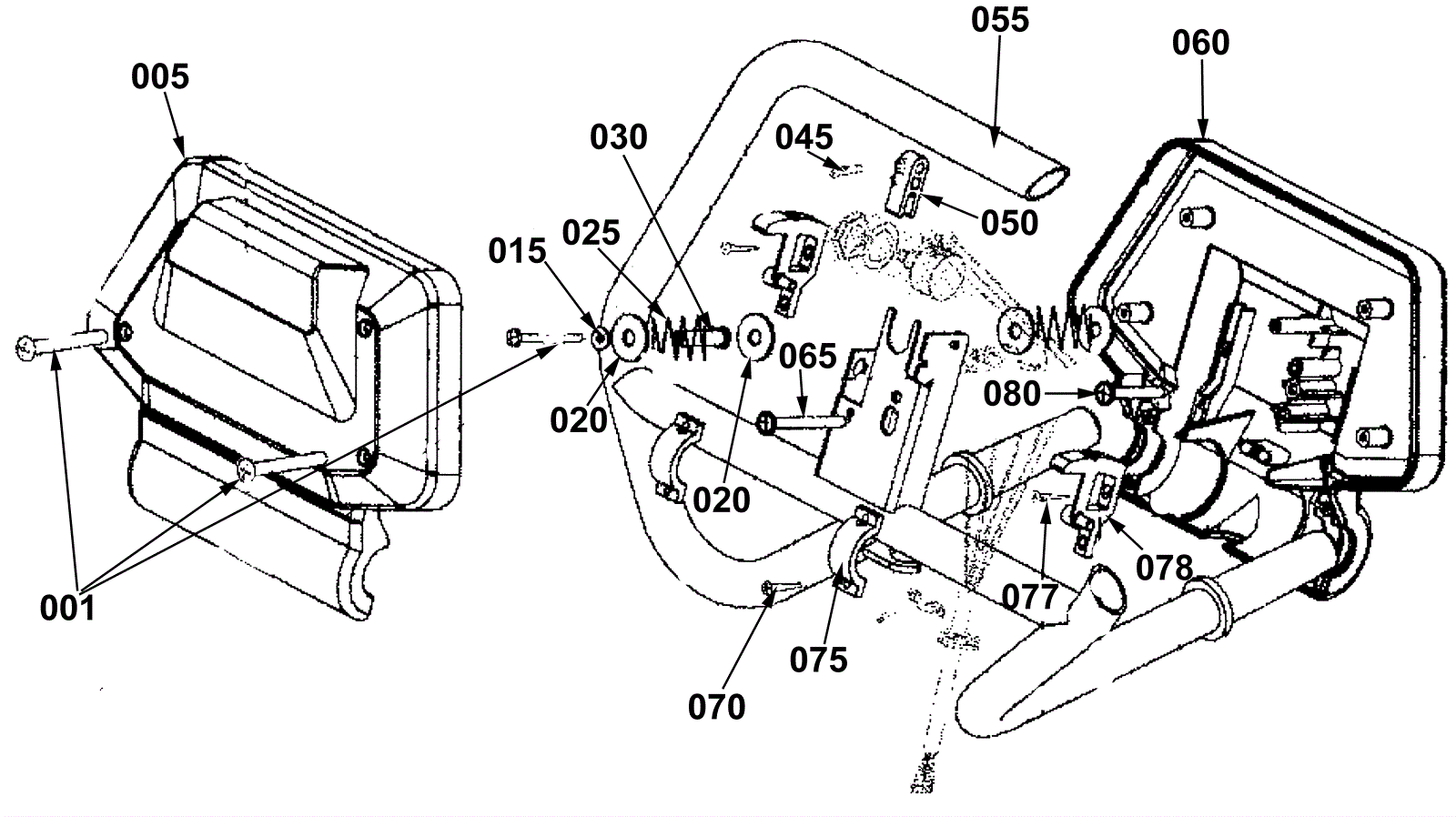

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
272-1947
|
Screw flat head |
$10.01
|
4 |
|
usually ships 16-41 days |
005 |
272-1948
|
Front switch housing (OBSOLETE) |
$19.80
|
1 |
|
usually ships 16-41 days |
015 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
1 |
|
ships same day |
020 |
272-1950
|
Washer M5 x 25mm plastic |
$11.99
|
4 |
|
usually ships 1-5 days |
025 |
172-2036
|
Compression spring |
$11.99
|
2 |
|
usually ships 16-41 days |
030 |
272-1951
|
Sleeve |
$13.40
|
1 |
|
usually ships 1-5 days |
045 |
999-0537
|
Screw 10-24 x 1/4 socket head shoulder |
$1.65
|
1 |
|
ships same day |
050 |
172-2047
|
U clamp |
$10.56
|
1 |
(potentiometer is for drive models only) |
usually ships 16-41 days |
055 |
272-1954
|
Handle bar (OBSOLETE) |
$184.14
|
1 |
|
usually ships 1-5 days |
060 |
172-4493
|
Rear switch housing |
$36.07
|
1 |
|
usually ships 16-41 days |
065 |
999-1991
|
Screw M6-1.0 x 50mm pan head phillips zinc |
$1.03
|
1 |
|
usually ships 11-24 days |
070 |
272-1957
|
Screw M4-.7 x 14mm |
$9.35
|
2 |
|
usually ships 1-5 days |
075 |
272-1958
|
Clamp |
$11.99
|
2 |
|
ships same day |
077a |
999-0738
|
Screw M3-.5 x 16mm pan head phillips zinc |
$0.99
|
4 |
BA 5321D |
ships same day |
077b |
999-0738
|
Screw M3-.5 x 16mm pan head phillips zinc |
$0.99
|
1 |
BA 5321 |
ships same day |
078a |
272-6318
|
Micro switch cam |
$15.07
|
2 |
BA 5321D |
usually ships 16-41 days |
078b |
272-6318
|
Micro switch cam |
$15.07
|
1 |
BA 5321 |
usually ships 16-41 days |
080 |
999-0518
|
Bolt M6-1 x 25mm hex head full thread zinc |
$0.99
|
1 |
|
ships same day |
