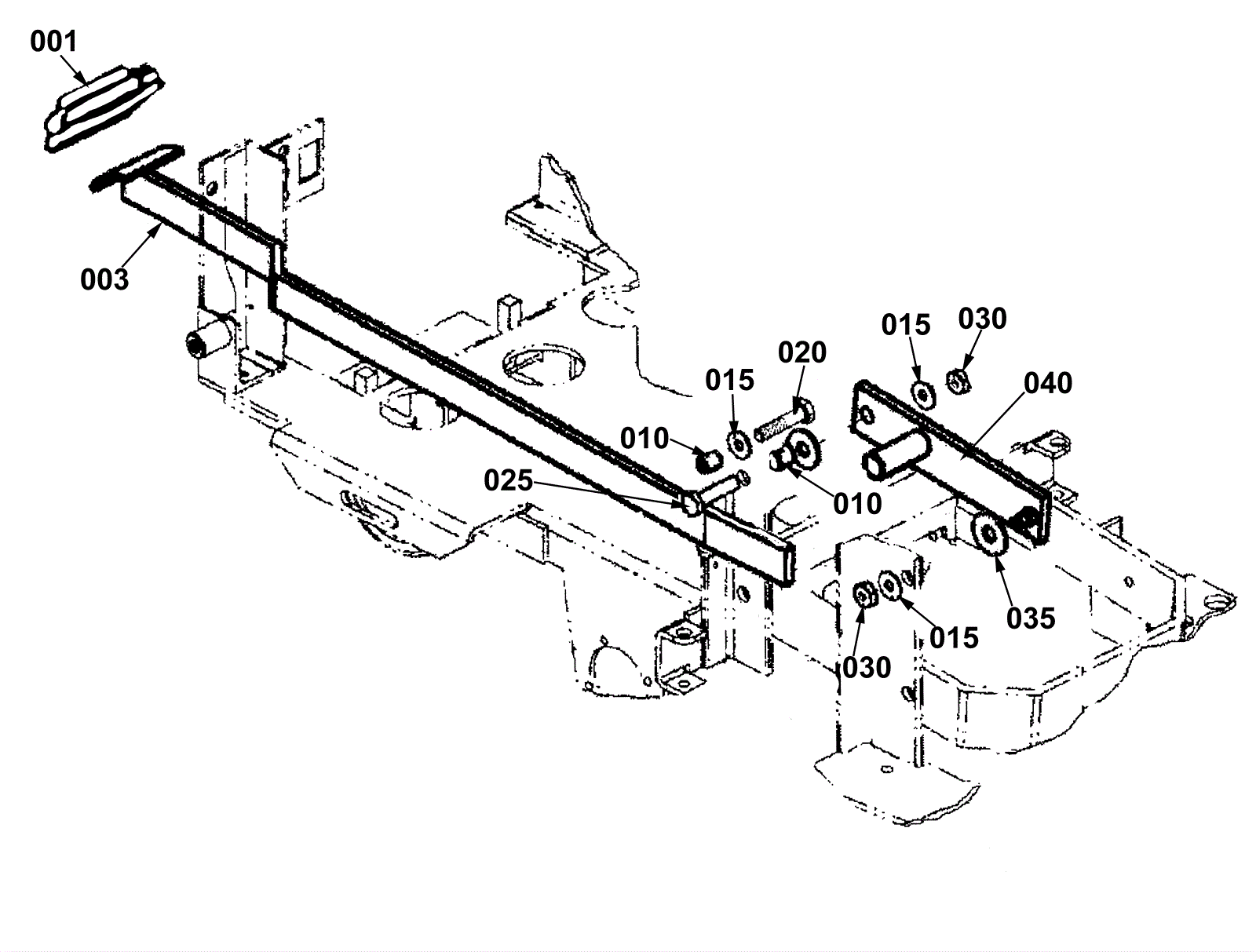

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
272-1983
|
Rubber pedal pad |
$100.80
|
1 |
|
ships same day |
003a |
272-1984
|
Pedal weldment |
$125.08
|
1 |
|
usually ships 1-5 days |
003b |
272-1985
|
Pedal assembly |
$84.96
|
1 |
Includes 001 & 003a |
usually ships 1-5 days |
010 |
272-8092
|
Spacer |
$12.18
|
2 |
|
usually ships 1-5 days |
015 |
999-1267
|
Washer M8 flat zinc |
$0.99
|
3 |
|
ships same day |
020 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
$0.90
|
1 |
|
ships same day |
025 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
$0.90
|
1 |
|
ships same day |
030 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
$0.99
|
2 |
|
ships same day |
035 |
172-4496
|
Washer |
$8.00
|
2 |
|
usually ships 6-18 days |
040 |
272-1989
|
Lever |
$69.12
|
1 |
|
usually ships 1-5 days |
