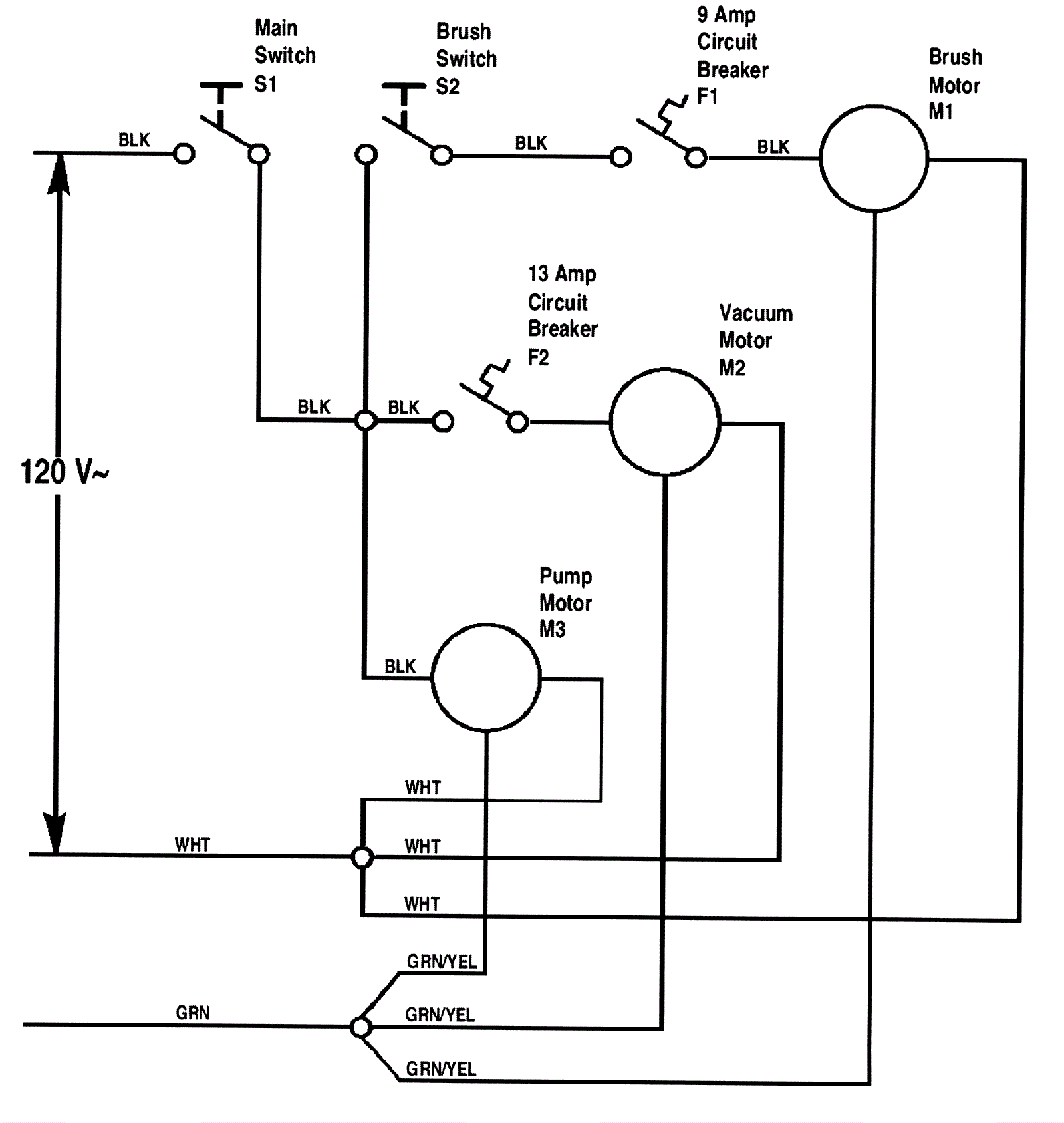

SELECTRAC 17 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
F1 172-4010 Circuit breaker 9amp $108.64 usually ships 1-5 days
F2 172-4020 13 amp circuit breaker (OBSOLETE) $57.31 usually ships 1-5 days
M1 N/A Not available Call for price (Brush motor) usually ships 3-26 days
M2 181-0981 120V 3 stage vacuum motor $658.46 usually ships 17-28 days
M3 172-4057 Pump motor $576.50 usually ships 17-28 days
S1 172-4013 Rocker switch $64.53 usually ships 17-28 days
S2 172-4012 Terminal block $9.26 usually ships 17-28 days
