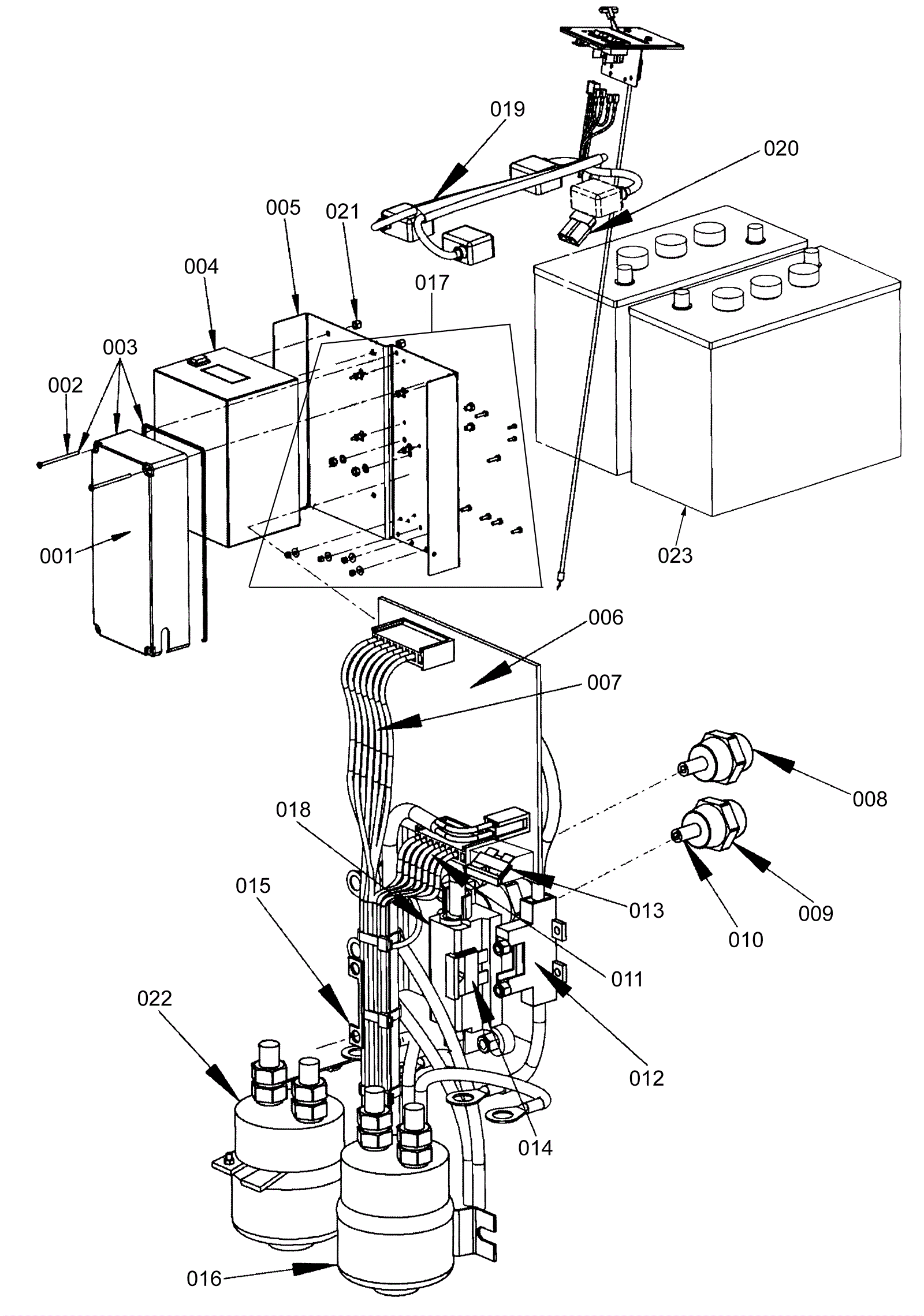

RAZOR17B Wiring Assembly

#PartDescriptionPriceReqNotesAvailability
001 272-5509 Electronic cover card $69.07 1 usually ships 13-18 days
002 N/A Not available Call for price 2 (Screw) usually ships 3-26 days
003 N/A Not available Call for price 1 (Cover assembly) usually ships 3-26 days
004 181-0956 24V onboard battery charger (OBSOLETE) $1,650.00 1 usually ships 13-18 days
005 181-1728 Support (OBSOLETE) $58.21 1 usually ships 1-5 days
006 181-0957 Electronic card $249.19 1 ships same day
007 N/A Not available Call for price 1 (Machine harness) usually ships 3-26 days
008 272-9579 Insulator $20.91 1 usually ships 13-18 days
009 181-1725 Insulator (OBSOLETE) $5.94 1 usually ships 1-5 days
010 181-1726 Dowel $8.80 2 usually ships 1-5 days
011 N/A Not available Call for price 1 (Electronic card harness) usually ships 3-26 days
012 472-1367 HOLDER FUSE THERMOPL. UL 94-V0 $40.44 1 usually ships 13-18 days
013 181-0962 5 amp fuse $5.50 1 usually ships 13-18 days
014 181-0963 40amp fuse $12.89 1 usually ships 13-18 days
015 181-0964 50amp fuse $14.41 1 usually ships 13-18 days
016 181-0965 Contactor $151.33 1 usually ships 13-18 days
017 181-1727 Electronic card fixing kit (OBSOLETE) $7.84 1 usually ships 1-5 days
018 181-0966 Fuse holder $34.23 1 usually ships 13-18 days
019 N/A Not available Call for price 1 (Battery harness) usually ships 3-26 days
020 991-2102 50amp charger plug SB50 only (red) $16.27 1 usually ships 18-24 days
021 172-3667 Nut M6 self locking (OBSOLETE) $8.25 4 usually ships 1-5 days
022 181-0970 Contactor (OBSOLETE) $312.82 1 usually ships 13-18 days
023 162-0011 12V 105Ah wet battery (SNSR) $291.50 2 ships same day
023 162-0042 12V 115Ah AGM battery (Group 31) (SNSR) $500.50 2 usually ships 27-29 days
