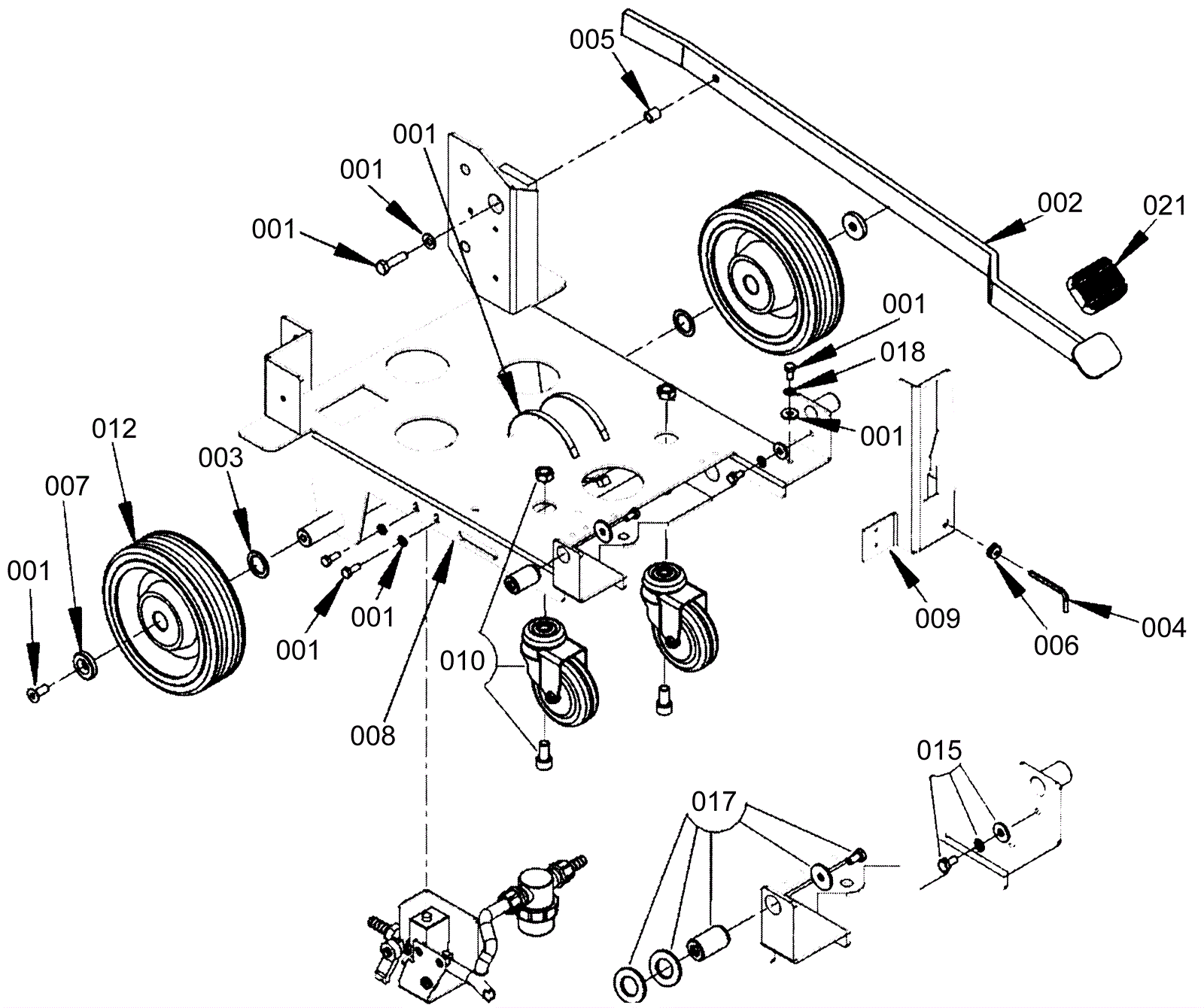

RAZOR17B Chassis Assembly

#PartDescription ReqNotesAvailability
001 181-0919 Chassis system hardware kit (OBSOLETE) 1 Cannot purchase hardware separately. usually ships 13-16 days
002 N/A Not available 1 (Brush lifting pedal) usually ships 3-26 days
003 172-5085 Spacer(OBSOLETE) 2 usually ships 13-16 days
004 272-8091 Allen wrench 1 usually ships 1-5 days
005 272-8092 Spacer 2 usually ships 1-5 days
006 181-0896 Handle adjuster kit 1 usually ships 13-16 days
007 272-8089 Spacer 2 usually ships 13-16 days
008 N/A Not available 1 usually ships 3-26 days
009 172-5081 Guide (OBSOLETE) 1 usually ships 13-16 days
010 181-0900 Rear wheel caster kit (OBSOLETE) 1 usually ships 13-16 days
012 181-0909 Front wheel 2 usually ships 13-16 days
015 181-0900 Rear wheel caster kit (OBSOLETE) 1 usually ships 13-16 days
017 181-0911 Left tank support kit (OBSOLETE) 1 usually ships 1-5 days
018 999-0051 Washer #6 medium split lock 2 usually ships 11-14 days
021 181-0917 Pedal cover 1 usually ships 13-16 days
