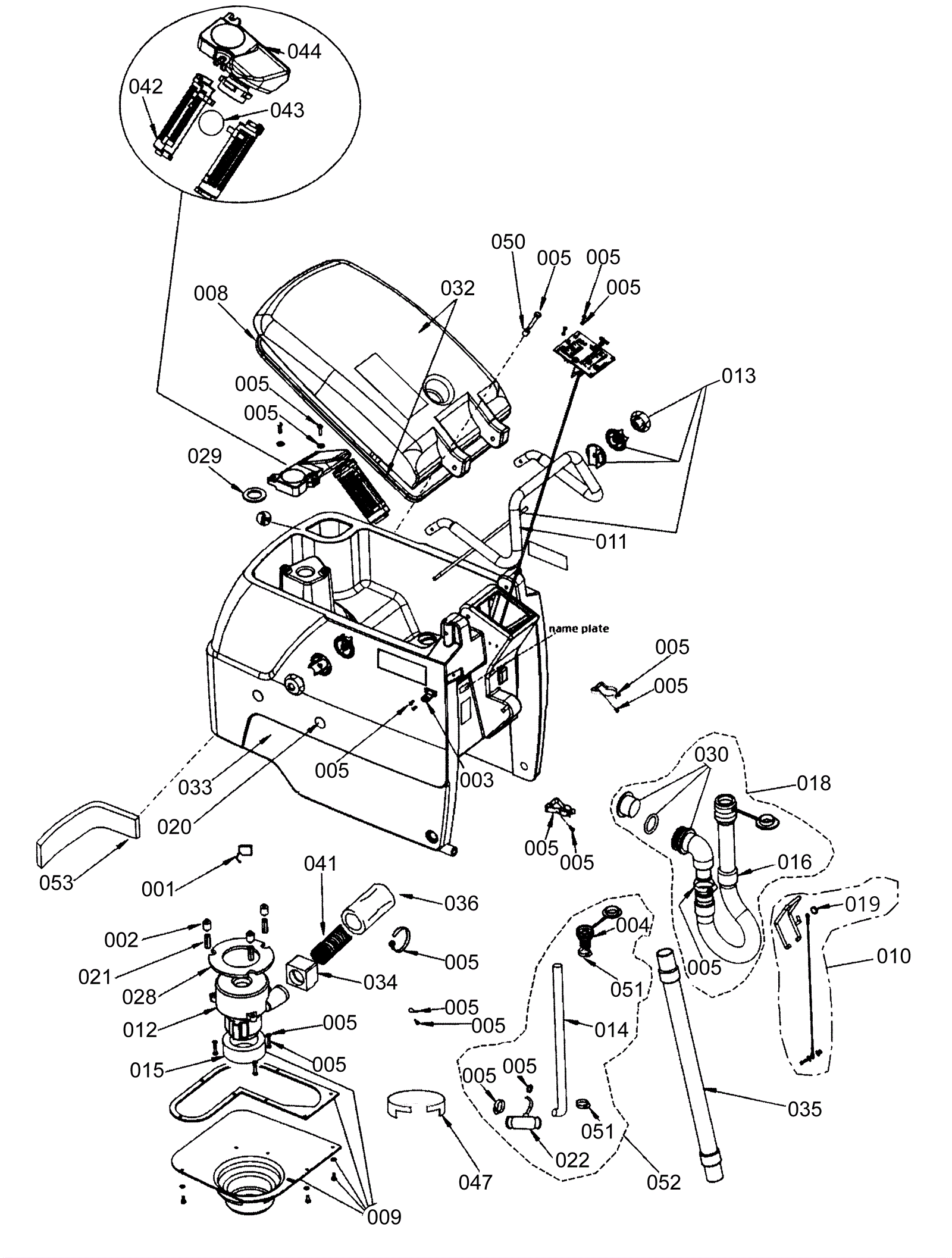

RAZOR17B Tank System Assembly

#PartDescriptionPriceReqNotesAvailability
001 181-0886 Carbon brush (OBSOLETE) $6.89 2 usually ships 1-5 days
002 181-1722 Buffer (OBSOLETE) $5.94 3 usually ships 1-5 days
003 172-4237 Hose bracket (OBSOLETE) $20.99 1 usually ships 1-5 days
004 272-0849 Solution hose plug $23.01 1 usually ships 17-28 days
005 N/A Not available Call for price 1 (Tank system hardware kit) usually ships 3-26 days
008 181-2002 Recovery tank lid gasket $54.98 1 usually ships 17-28 days
009 N/A Not available Call for price 1 (Acoustic cover kit) usually ships 3-26 days
010 181-0893 Squeegee lift kit (OBSOLETE) $78.94 1 usually ships 17-28 days
011 172-5082 Handle bar (OBSOLETE) $77.33 1 usually ships 1-5 days
012 181-0895 24V 3 stage vacuum motor kit with connector $429.00 1 usually ships 1-5 days
013 181-0896 Handle adjuster kit $88.99 1 ships same day
014 181-0916 Fresh water hose kit $137.90 1 ships same day
015 172-5088 Acoustic insulation (OBSOLETE) $8.25 1 usually ships 1-5 days
016 272-9628 Drain hose kit $60.19 1 Recovery ships same day
018 272-1973 Drain hose assembly (OBSOLETE) $196.55 1 Includes items 006, 016 and 030 usually ships 17-28 days
019 272-1159 Plastic clamp $10.85 1 ships same day
020 172-4695 Locking tank cap $16.95 4 usually ships 17-28 days
021 272-8071 Spacer (OBSOLETE) $10.52 3 usually ships 17-28 days
022 N/A Not available Call for price 1 (Elbow) usually ships 3-26 days
028 272-8072 Vacuum motor gasket $26.04 1 usually ships 17-28 days
029 272-5298 Gasket $12.31 1 ships same day
030 181-0904 Elbow drain hose kit (OBSOLETE) $58.95 1 usually ships 17-28 days
032 181-0905 Tank lid with gasket (OBSOLETE) $215.03 1 usually ships 17-28 days
033 181-0906 Tank (OBSOLETE) $485.89 1 usually ships 1-5 days
034 272-8073 Acoustic insulation (OBSOLETE) $23.39 1 usually ships 1-5 days
035 181-0908 Suction hose $72.63 1 usually ships 17-28 days
036 181-1724 Acoustic insulation hose (OBSOLETE) $13.42 1 usually ships 1-5 days
041 181-1719 Flexible hose (OBSOLETE) $5.94 1 usually ships 1-5 days
042 172-0517 Float cage half (2 required for full float cage) $18.38 2 ships same day
043 172-0192 Float ball $10.52 1 usually ships 18-27 days
044 270-0363 Float mount (OBSOLETE) $77.55 1 usually ships 17-28 days
047 181-1720 Acoustic insulation (OBSOLETE) $5.94 1 usually ships 1-5 days
050 181-0914 Spacer $11.99 1 usually ships 1-5 days
051 172-4693 Hose clamp $12.31 2 usually ships 17-28 days
052 181-0916 Fresh water hose kit $137.90 1 (Solution) The T piece the hoses connect to is no longer available. This kit is used to eliminate that part. ships same day
053 181-1721 Insulation gasket (OBSOLETE) $6.66 1 usually ships 1-5 days
