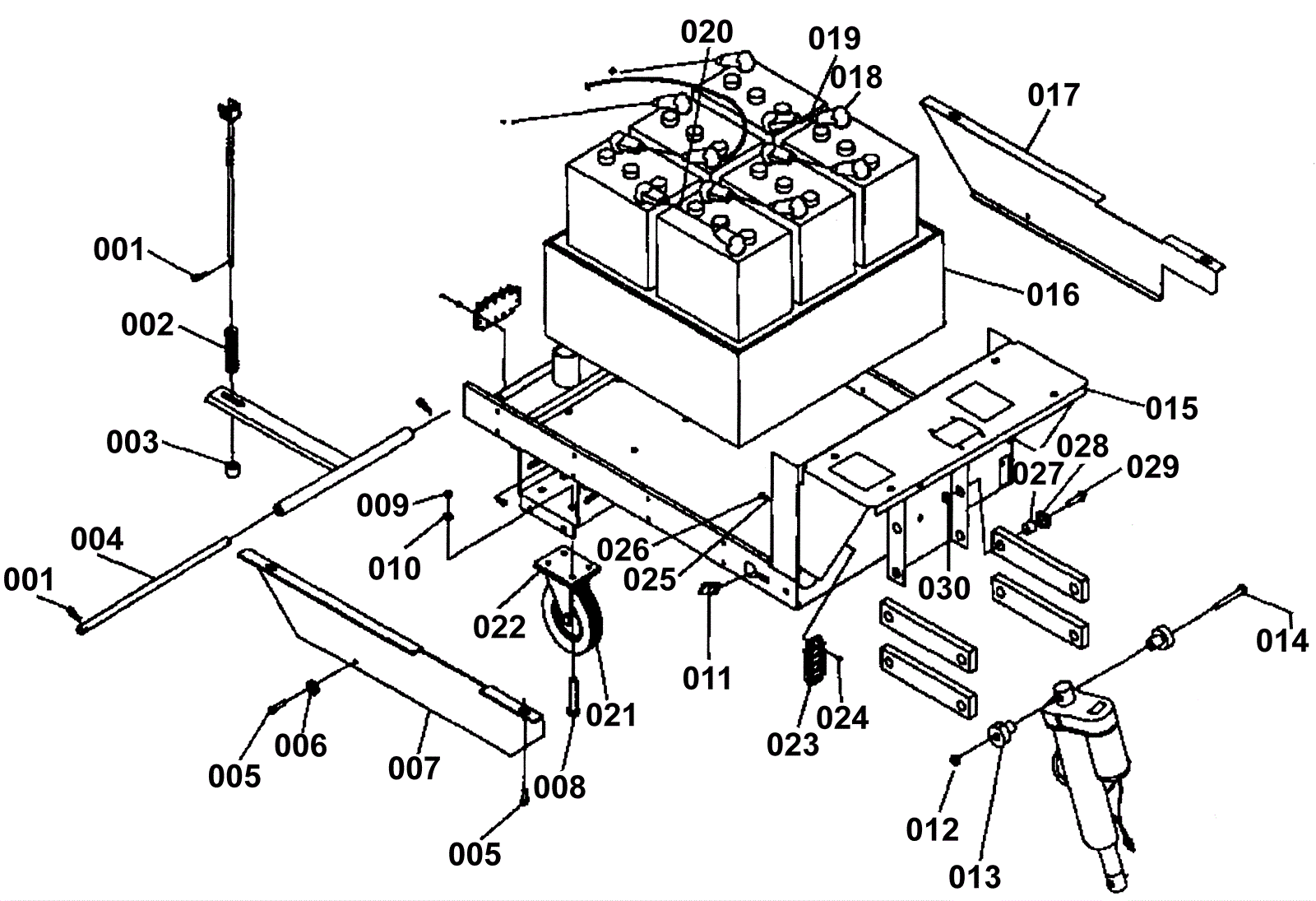

SELECTSCRUB KA39 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 997-2509 Cotter pin 1/8 x 3/4 stainless steel $0.99 3 ships same day
002 N/A Not available Call for price 1 (Compression spring) usually ships 3-26 days
003 N/A Not available Call for price 1 (Spacer) usually ships 3-26 days
004 181-0046 Shaft stainless steel $20.22 1 usually ships 1-5 days
006 N/A Not available Call for price 6 (Washer 17/64 x 33/64 external star lock) usually ships 3-26 days
007 N/A Not available Call for price 1 (Lower right skirt) usually ships 3-26 days
008 172-4033 3/8 inch retaining ring $9.60 8 usually ships 16-41 days
009 172-0513 Pop rivet $10.90 8 usually ships 16-41 days
010 N/A Not available Call for price 8 (Washer) usually ships 3-26 days
011 272-0487 2 position rocker switch $27.53 4 ships same day
012 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
013 N/A Not available Call for price 2 (Sleeve bushing) usually ships 3-26 days
014 172-6079 Retaining ring $9.60 1 usually ships 1-5 days
015 N/A Not available Call for price 1 (Upper chassis weldment) usually ships 3-26 days
016 N/A Not available Call for price 1 (Battery box) usually ships 3-26 days
017 N/A Not available Call for price 1 (Left lower skirt) usually ships 3-26 days
019 181-0027 Wire assembly (OBSOLETE) $25.39 4 usually ships 1-5 days
020 181-0026 Wire assembly (OBSOLETE) $30.07 1 usually ships 1-5 days
021 N/A Not available Call for price 2 (Wheel axle kit) usually ships 3-26 days
022 172-8073 Caster wheel $127.94 2 usually ships 16-41 days
023 172-2030 Terminal block with (4) 50amp terminals (OBSOLETE) $24.16 2 usually ships 1-5 days
024 999-0400 Screw 10-24 x 1 pan head phillips zinc plated $0.99 8 ships same day
025 999-0053 Washer #10 split lock plain finish $0.99 8 ships same day
026 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 8 ships same day
027 181-0035 Stainless steel Spacer (OBSOLETE) $8.30 4 usually ships 1-5 days
028 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
029 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 4 ships same day
030 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 4 ships same day
