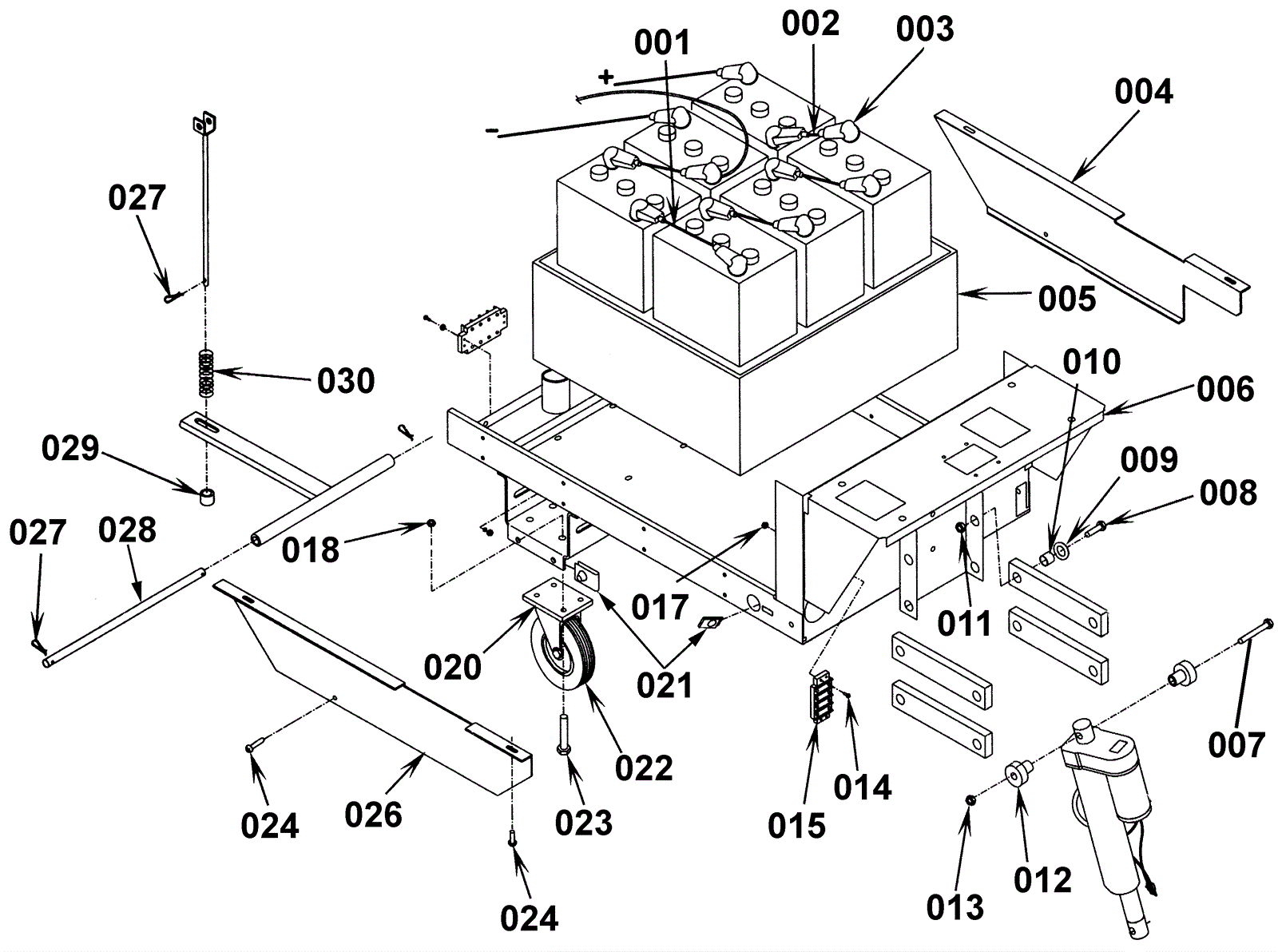

SELECTSCRUB KA33 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 181-0026 Battery jumper cable $33.08 1 usually ships 1-5 days
002 181-0027 Wire assembly (OBSOLETE) $27.93 4 usually ships 1-5 days
003 172-0223 Battery cable boot $9.26 12 ships same day
004 N/A Not available Call for price 1 (Left lower skirt) usually ships 3-26 days
005 N/A Not available Call for price 1 (Battery box) usually ships 3-26 days
006 N/A Not available Call for price 1 (Upper chassis weldment) usually ships 3-26 days
007 181-0032 Screw 3/8 hex cap $12.31 1 usually ships 1-5 days
008 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 4 ships same day
009 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
010 181-0035 Stainless steel Spacer (OBSOLETE) $9.13 4 usually ships 1-5 days
011 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 4 ships same day
012 N/A Not available Call for price 2 (Sleeve bushing) usually ships 3-26 days
013 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
014 999-0400 Screw 10-24 x 1 pan head phillips zinc plated $0.99 8 ships same day
015 172-2030 Terminal block with (4) 50amp terminals (OBSOLETE) $26.58 2 usually ships 1-5 days
017 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 8 ships same day
018 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 8 ships same day
020 181-0041 Wheel & Axle kit (OBSOLETE) $204.60 2 usually ships 1-5 days
021 172-2049 Nut 1/4- 20 $12.31 4 usually ships 1-5 days
022 172-8073 Caster wheel $144.53 2 usually ships 17-28 days
023 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 8 ships same day
026 N/A Not available Call for price 1 (Right lower skirt) usually ships 3-26 days
027 997-2509 Cotter pin 1/8 x 3/4 stainless steel $0.99 3 ships same day
028 181-0046 Shaft stainless steel $22.24 1 usually ships 1-5 days
029 N/A Not available Call for price 1 (Spacer) usually ships 3-26 days
030 N/A Not available Call for price 1 (Compression spring) usually ships 3-26 days
