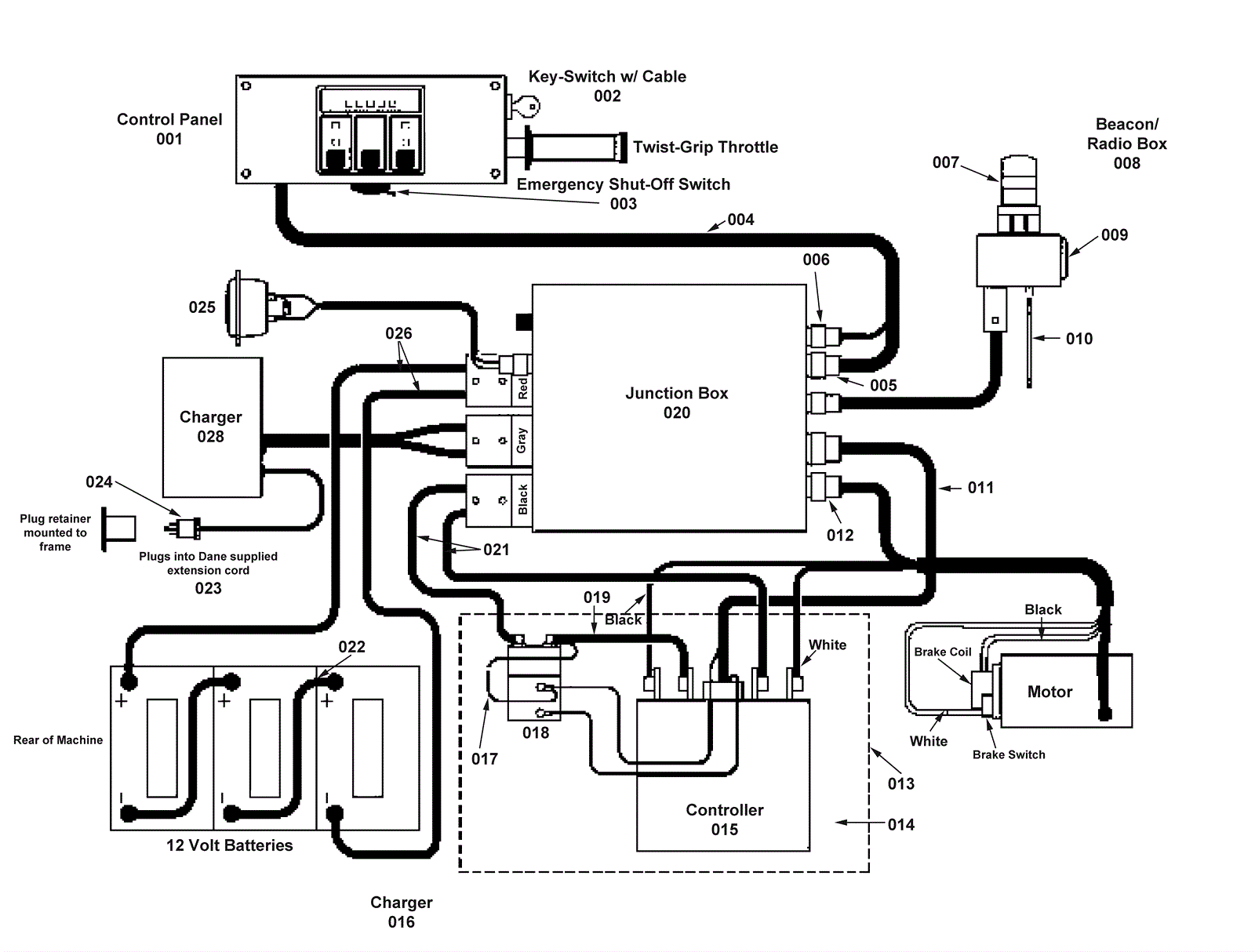

QUICKART 2000 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 179-2010 Control panel assembly (OBSOLETE) $522.40 usually ships 24-25 days
002 179-2016 Key switch with 2 new style keys $59.57 usually ships 24-25 days
003a 179-2208 Emergency stop switch red $158.03 (before SN 2781) usually ships 24-25 days
003b 179-2011 Emergency stop button with cable $123.93 (after SN 2780) usually ships 1-5 days
004 179-2024 Circuit cable $51.35 usually ships 1-5 days
005 179-2224 Cable housing $1.85 usually ships 1-5 days
006 179-2225 Cable housing $0.99 usually ships 1-5 days
007 N/A Not available Call for price (Strobe light assembly) usually ships 3-26 days
008 179-2056 New style beacon tower assembly $1,166.09 usually ships 1-5 days
009 179-2227 Brake light assembly (red) $50.42 usually ships 1-5 days
010 179-2062 Antenna $44.29 (after SN 986) usually ships 24-25 days
011 179-2228 Cable assembly $47.47 usually ships 1-5 days
012 179-2229 Terminal $0.99 usually ships 1-5 days
013 N/A Not available Call for price (Mounting plate) usually ships 3-26 days
014 179-2007 Motor control assembly $1,707.93 usually ships 1-5 days
015 N/A Not available Call for price (Controller) usually ships 3-26 days
016 179-2002 Clip light battery charger $918.12 usually ships 24-25 days
017 N/A Not available Call for price (Cable) usually ships 3-26 days
018 179-2233 Contactor $113.83 usually ships 1-5 days
019 179-2234 Controller/contactor cable $19.93 usually ships 1-5 days
020 179-2008 Junction box $1,166.09 usually ships 1-5 days
021 179-2235 Controller/juntion box cable $28.66 usually ships 1-5 days
022 179-2236 Interconnect cord (red) $6.33 usually ships 1-5 days
023a 179-2193 16/3 extension cord 10 foot $18.35 (OEM) usually ships 1-5 days
023b 991-5002 16/3 extension cord 50 foot (yellow) $54.17 (NON-OEM) ships same day
023c 991-5006 16/3 replacement power cord 50 foot (yellow) $49.95 (NON-OEM) ships same day
024 179-2082 Charger cord with white plug $84.65 usually ships 24-25 days
025 179-2012 Horn assembly with harness $162.01 usually ships 1-5 days
026 179-2054 Battery pack to junction box cable $72.55 usually ships 24-25 days
028 179-2002 Clip light battery charger $918.12 usually ships 24-25 days
N/S 179-2237 Cable housing $0.99 usually ships 1-5 days
