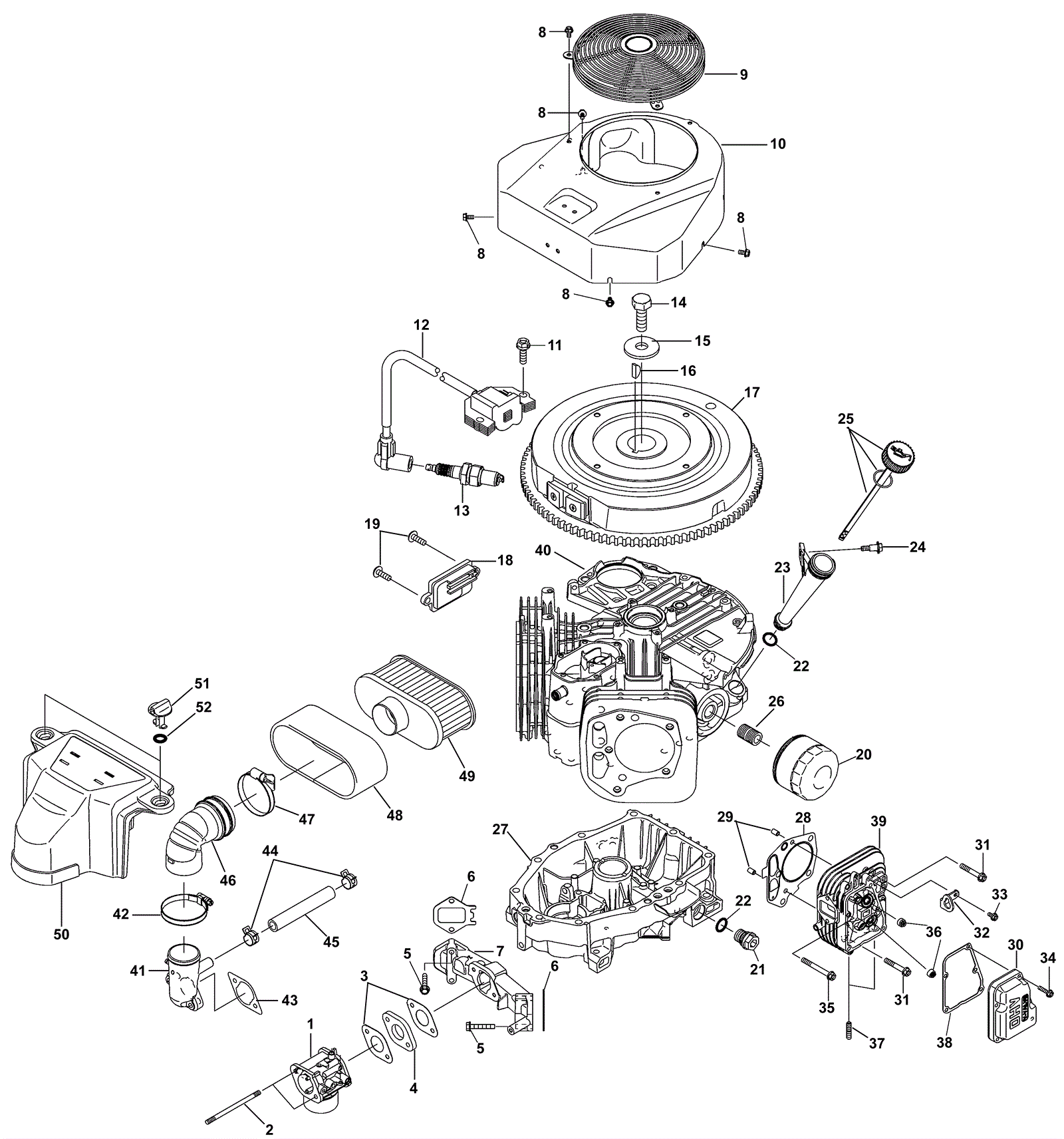

DIAMOND Kawasaki FX481V Engine Assembly

#PartDescriptionPriceReqNotesAvailability
1 178-0372 Carburetor assembly $363.73 1 usually ships 1-5 days
2 178-0373 Stud $3.58 2 usually ships 1-5 days
3 178-7102 Intake manifold gasket $4.05 2 usually ships 3-11 days
4 178-0166 Insulator $5.70 1 usually ships 3-11 days
5 178-0374 Bolt $0.99 4 usually ships 1-5 days
6 178-0266 Manifold gasket $3.43 2 ships same day
7 178-0375 Intake manifold $138.71 1 usually ships 1-5 days
8 178-0335 Bolt 6 x 12 $0.99 11 usually ships 1-5 days
9 178-0376 Guard $51.56 1 usually ships 1-5 days
10 178-0377 Fan housing $173.95 1 usually ships 3-11 days
11 178-0123 Flanged bolt $4.20 4 usually ships 3-11 days
12a 178-0264 Ignition coil assembly Kawasaki FS481V $104.92 2 ships same day
12b 991-7143 Ignition coil assembly $158.15 2 usually ships 5-16 days
13a 166-0008 Spark plug (Kawasaki FS481V) $5.99 2 ships same day
13b 166-0008 Spark plug (Kawasaki FS481V) $5.99 2 ships same day
14 178-0329 Bolt 12 x 30 $5.26 1 usually ships 1-5 days
15 178-0135 Washer $2.46 1 usually ships 1-5 days
16 178-0137 Woodruff key $2.95 1 usually ships 3-11 days
17 178-7107 Flywheel assembly $218.52 1 usually ships 1-5 days
18 178-0023 Voltage regulator $77.57 1 ships same day
19 178-0331 Screw $0.99 2 usually ships 1-5 days
20a 178-0254 Oil filter $17.88 1 (OEM) ships same day
20b 991-6027 Oil filter $10.25 1 (NON-OEM) ships same day
20c 178-0378 Oil filter screen $4.97 1 usually ships 3-11 days
21 178-0112 Plug $6.20 1 usually ships 3-11 days
22 178-0016 O-ring $1.47 2 ships same day
23 178-0306 Dipstick tube $8.24 1 ships same day
24 178-0120 Recoil startert bolt (includes spacer) $4.47 1 usually ships 3-11 days
25 189-3090 Oil dipstick $16.94 1 ships same day
26 178-0379 Joint $2.60 1 usually ships 1-5 days
27 178-0322 Crankcase cover $170.89 1 usually ships 3-11 days
28 178-0261 Cylinder head gasket (FS481V engine only) $27.39 2 ships same day
29 178-0273 Dowell pin $0.99 6 usually ships 3-11 days
30a 178-7141 Rocker case (cylinder #1) $17.27 1 usually ships 1-5 days
30b 178-7112 Rocker case (cylinder #2) $17.27 1 usually ships 3-11 days
31 178-0272 Head bolt $3.30 14 usually ships 3-11 days
32 178-0339 Lift hook $3.15 1 usually ships 1-5 days
33 178-0335 Bolt 6 x 12 $0.99 7 usually ships 1-5 days
34 178-0124 Bolt 6 x 25 flange $0.99 10 usually ships 3-11 days
35 178-0271 Head bolt $1.79 6 usually ships 3-11 days
36 178-0032 Valve stem seal $8.53 4 usually ships 3-11 days
37 178-0380 Bolt $2.09 4 usually ships 1-5 days
38 178-0262 Rocker case gasket $5.50 2 ships same day
39a 178-0258 Right (while operating) bare cylinder head #1 $233.09 1 ships same day
39b 178-0259 Left (while operating) bare cylinder head #2 $232.99 1 ships same day
40 178-0336 Crankcase complete $589.83 1 usually ships 3-11 days
41 189-5157 Intake pipe $19.03 1 usually ships 11-24 days
42 178-0283 Hose clamp $8.69 1 usually ships 1-5 days
43 178-7140 Air cleaner gasket $6.15 1 usually ships 3-11 days
44 178-0381 Clamp $2.24 2 usually ships 1-5 days
45 178-0382 Tube $1.97 1 usually ships 1-5 days
46 178-0282 Hose $15.52 1 usually ships 3-11 days
47 178-0281 Hose clamp $4.91 1 usually ships 3-11 days
48a 178-0255 Air pre-filter $6.29 1 (OEM) ships same day
48b 991-6028 Air pre-filter $5.70 1 (NON-OEM) ships same day
49a 178-0256 Air filter $21.38 1 (OEM) usually ships 3-11 days
49b 991-6029 Air filter $17.54 1 (NON-OEM) ships same day
50 178-0279 Air filter case $33.37 1 ships same day
51 178-0277 Thumb nut $1.98 2 usually ships 11-24 days
52 178-0278 O-ring $1.47 2 usually ships 3-11 days
N/S 178-0043 Top oil seal (upper crankshaft - Kawasaki) $2.79 1 ships same day
N/S 178-0260 Bottom oil seal $14.61 1 usually ships 3-11 days
N/S 178-7179 Starter $312.20 1 usually ships 1-5 days
