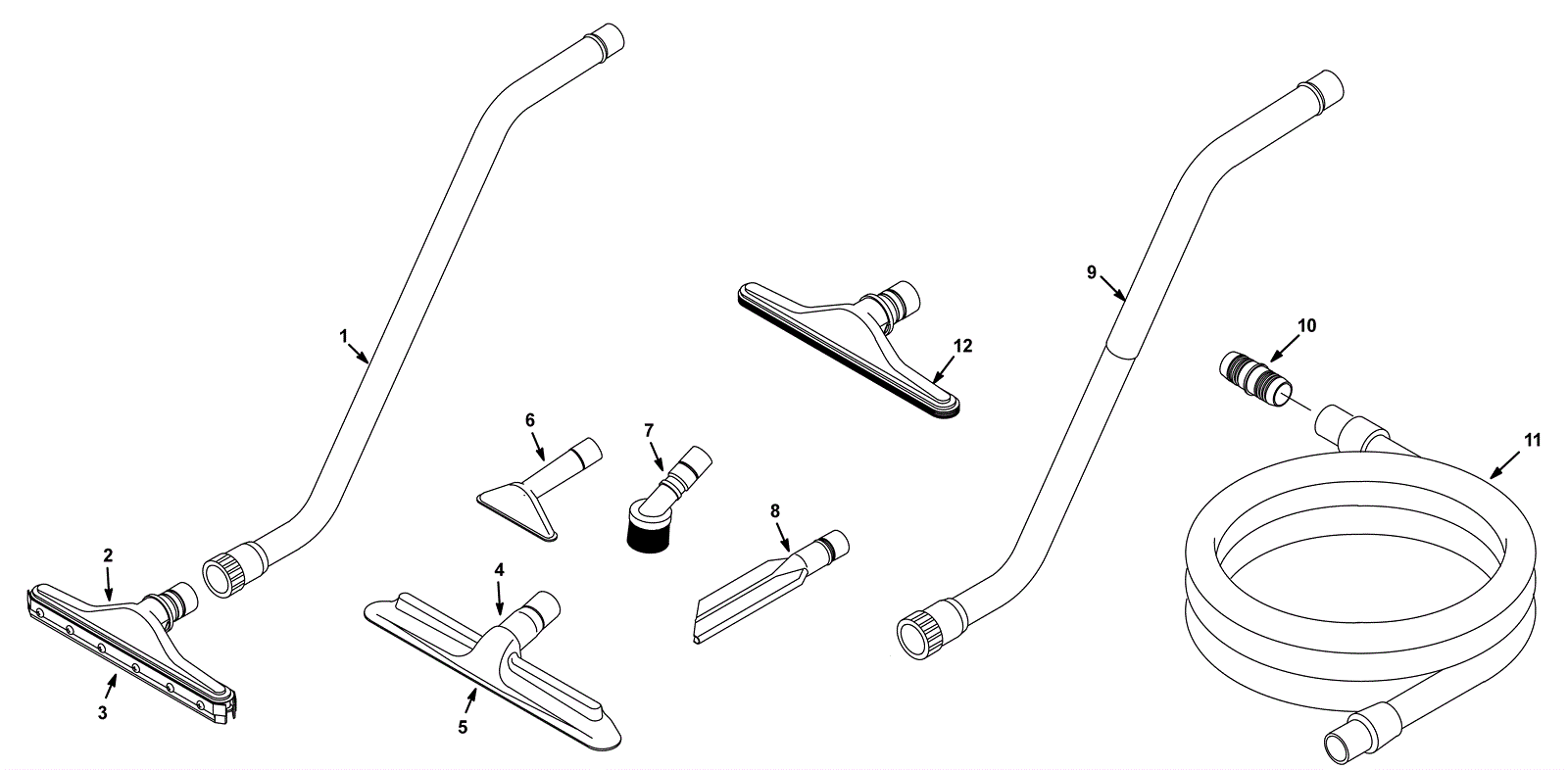

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
175-1501
|
Wet/dry carpet tool assembly |
1 |
(includes 1-8) |
|
0b |
175-6582
|
Dry pickup carpet tool kit |
1 |
(includes 1, 4-7) |
|
0c |
175-1506
|
Standard carpet tool assembly |
1 |
(includes 2-3, 9 and 12) |
|
0d |
175-2632
|
Wet pick-up carpet tool assembly |
1 |
(includes 1-3, 10 and 11) |
|
1a |
175-2633
|
Aluminum double bend wand |
1 |
(includes 1b and 1c) |
|
1b |
175-5760
|
Locking ring |
1 |
|
|
1c |
175-5761
|
Coupling nut |
1 |
|
|
2 |
175-2634
|
14 inch squeegee floor tool |
1 |
(includes item 3) |
|
3 |
175-5762
|
Squeegee blade (pkg of 4) |
1 |
|
|
4 |
175-1505
|
15 inch floor and rug tool |
1 |
(includes 5) |
|
5 |
175-6581
|
Brush (OBSOLETE) |
1 |
|
|
6 |
175-1503
|
5 inch upholstery tool |
1 |
|
|
7 |
175-1502
|
3 inch round dusting brush |
1 |
|
|
8 |
175-1504
|
11 inch crevice tool |
1 |
|
|
9 |
175-1507
|
Two piece double bend chrome wand |
1 |
(includes 1b and 1c) |
|
10 |
175-8758
|
Connector |
1 |
|
|
11 |
175-2635
|
Vacuum hose 1 1/2 x 10 foot |
1 |
|
|
12 |
175-1508
|
14 inch scalloped carpet tool |
1 |
|
|
