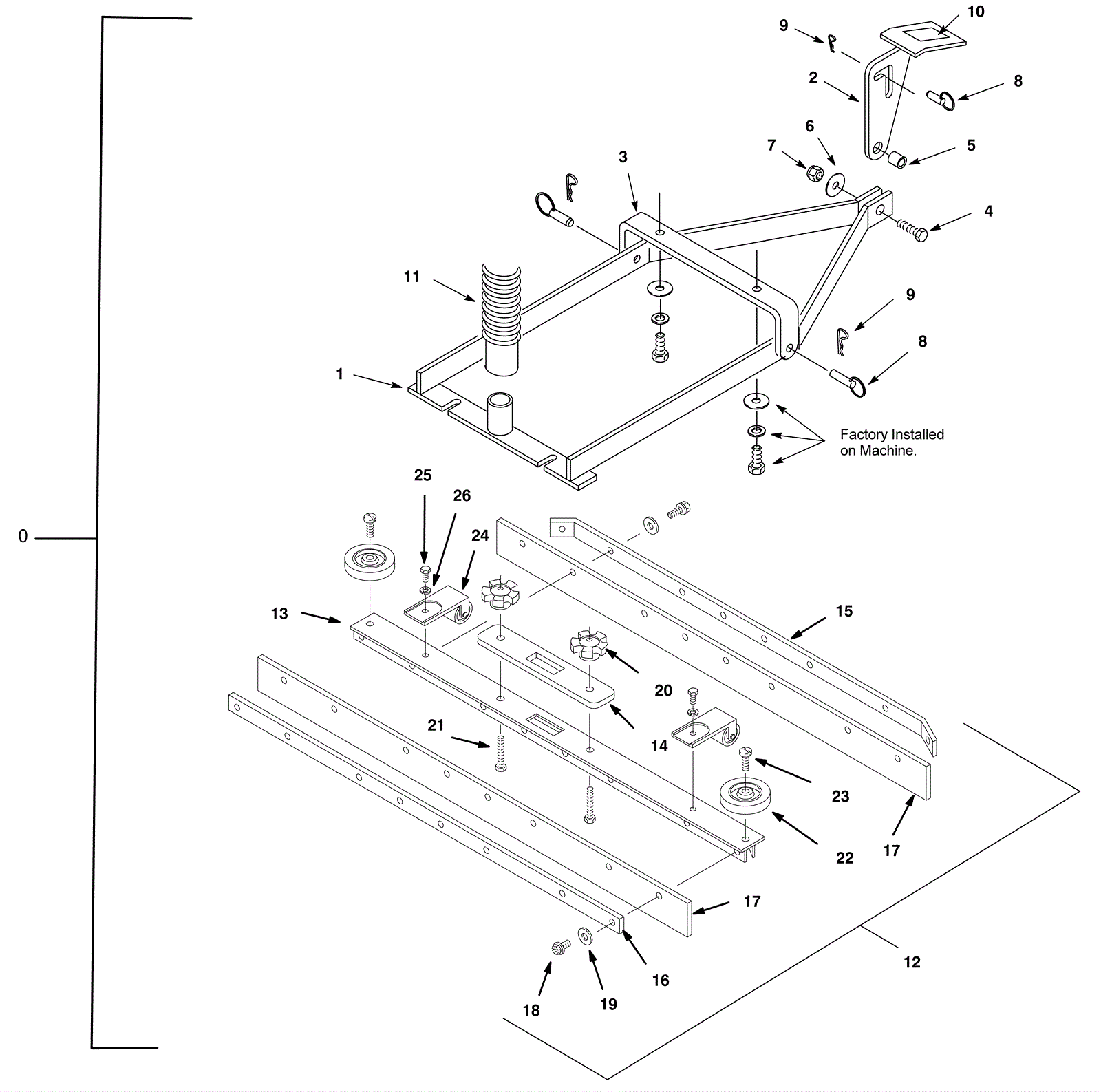

TYPHOON Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0a 175-9020 27 inch (680mm) squeegee and mount assembly $712.14 1 (includes 1-26) usually ships 5-16 days
0b 175-1500 34 inch (860mm) squeegee and mount assembly (OBSOLETE) $684.20 1 (includes 1-26) usually ships 5-16 days
0c 175-9004 40 inch (1010mm) squeegee and mount assembly (OBSOLETE) $502.70 1 (includes 1-26) usually ships 1-5 days
1 175-1509 Squeegee lift weldment $258.94 1 ships same day
2 175-1510 Lifting pedal $84.04 1 usually ships 5-16 days
3 175-1511 Squeegee mounting bracket $48.40 1 usually ships 5-16 days
4 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 1 ships same day
5 175-1512 Spacer $8.58 1 ships same day
6 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
7 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
8 175-1513 Clevis pin $3.96 3 ships same day
9 175-1514 Cotter hair pin $3.96 3 ships same day
10 175-2745 Non-slip pad $7.37 1 usually ships 5-16 days
11 175-0887 Vacuum hose 1 1/2 x 33 inch $45.76 1 usually ships 5-16 days
12a 175-0886 27 inch squeegee assembly $527.67 1 ships same day
12b 175-1515 34 inch (860mm) squeegee assembly $668.36 1 usually ships 5-16 days
12c 175-1516 40 inch (1010mm) squeegee assembly $641.19 1 usually ships 1-5 days
13a 175-1067 27 inch squeegee weldment $139.70 1 usually ships 5-16 days
13b 175-1517 34 inch (860mm) squeegee weldment $264.88 1 usually ships 5-16 days
13c 175-1070 40 inch squeegee weldment $286.33 1 usually ships 1-5 days
14 175-1055 Gasket $13.42 1 ships same day
15a 175-1069 27 inch rear squeegee plate $34.21 1 ships same day
15b 175-1518 34 inch (860mm) rear squeegee plate $92.07 1 usually ships 5-16 days
15c 175-1519 40 inch (1010mm) rear squeegee plate $117.48 1 usually ships 1-5 days
16a 175-1059 27 inch (680mm) front squeegee plate $27.72 1 usually ships 5-16 days
16b 175-1520 34 inch (860mm) front squeegee plate $76.67 1 usually ships 1-5 days
16c 175-1521 40 inch (1010mm) front squeegee plate $70.84 1 usually ships 1-5 days
17a 175-2036 Squeegee blade 27 inch (680mm) urethane $37.73 2 ships same day
17b 175-2980 Squeegee blade 33 inch (840 mm) urethane $56.10 2 ships same day
17c 175-2026 Squeegee blade 40 inch (1010mm) urethane $64.46 2 usually ships 5-16 days
18 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 18 ships same day
19 999-0053 Washer #10 split lock plain finish $0.99 18 (before Oct 2003) ships same day
20 175-2812 Knob $9.35 2 ships same day
21 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
22 175-0117 Guide wheel with bushing $9.68 2 ships same day
23 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel $1.65 2 ships same day
24 175-3091 Squeegee roller assembly $36.96 2 ships same day
25 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 2 ships same day
26 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
