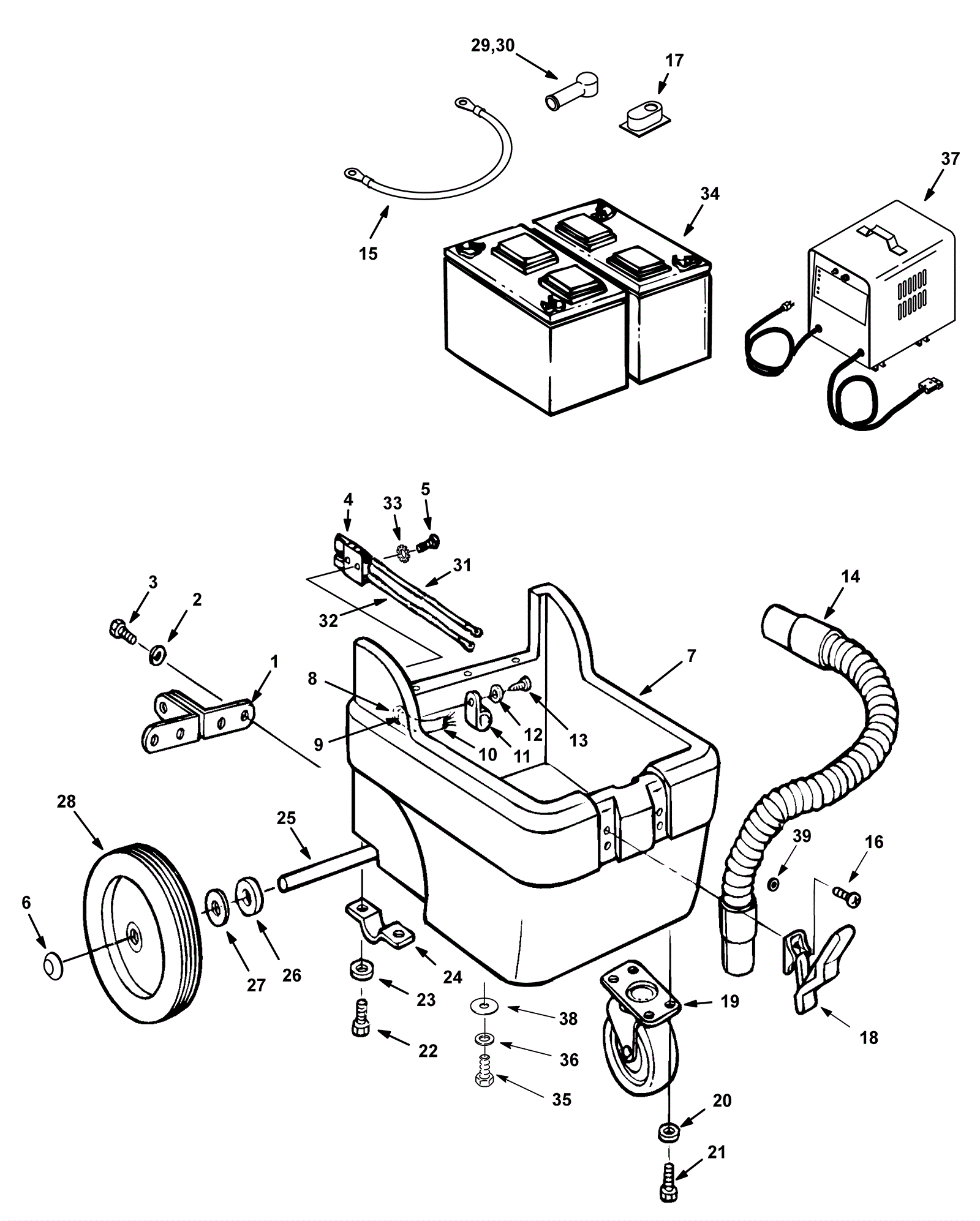

Base Assembly

#PartDescription ReqNotesAvailability
1 175-1551 Bracket 2
2 999-0632 Washer 1/4 split lock stainless steel 4
3 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 4
4 991-9284 50amp charger plug SB50 with pins (red) 1
5 999-1109 Screw 6-32 x 3/4 pan head phillips stainless steel 2
6a 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 2 (before Oct 2003)
6b 175-6097 Hub cap 2 (after Oct 2003)
7 175-6599 Battery base housing 1
8 175-0085 Strain relief bushing 1
9 175-6600 Grommet 1
10 175-6601 Wire assembly 14/2 x 45 inches (OBSOLETE) 1
11 175-0028 Clamp (OBSOLETE) 1
12 999-0393 Washer 3/16 flat aluminum 1
13 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 1
14a 175-7966 Vacuum hose with short cuffs 1
14b 991-5139 Vacuum hose with short cuffs 1 (NON-OEM)
15a 998-0010 Battery jumper cable - ring type (red) 1
15b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 1 (NON-OEM)
16 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 4
17 175-2121 Battery terminal cover (clear) 4
18a 175-3369 Hood latch 2
18b 991-8561 Rubber draw latch with keeper 2
19 175-0888 4 inch swivel caster wheel 2
20a 999-0553 Washer 5/16 medium split lock stainless steel 4 (before Oct 2003)
20b 999-0553 Washer 5/16 medium split lock stainless steel 8 (after Oct 2003)
21a 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4 (before Oct 2003)
21b 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 8 (after Oct 2003)
22 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 4
23 999-0632 Washer 1/4 split lock stainless steel 4
24 175-6098 Axle bracket 2
25 175-6603 Axle (OBSOLETE) 1
26 999-0187 Washer 1/2 flat plain finish 2
27 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
28 175-1902 Wheel 2
29 175-1103 Battery cable boot (black) 2
30 175-1103 Battery cable boot (black) 2
31 175-6604 Wire assembly #14 x 17 inch (OBSOLETE) 1
32 175-6605 Wire assembly #14 x 22 inch (OBSOLETE) 1
33 999-0148 Washer #6 external star lock zinc plated 2
34 162-0011 12V 105Ah wet battery (SNSR) 2
35 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
36 999-0034 Washer 3/8 split lock plain finish 2
37 162-9002 24V 25amp battery charger w/ small SB50 red plug (OBSOLETE) 1
38 999-0617 Washer 3/8 x 1 flat stainless steel 2 (before Oct 2003)
39 999-1083 Washer #8 internal star lock stainless steel 4 (before Oct 2003)
