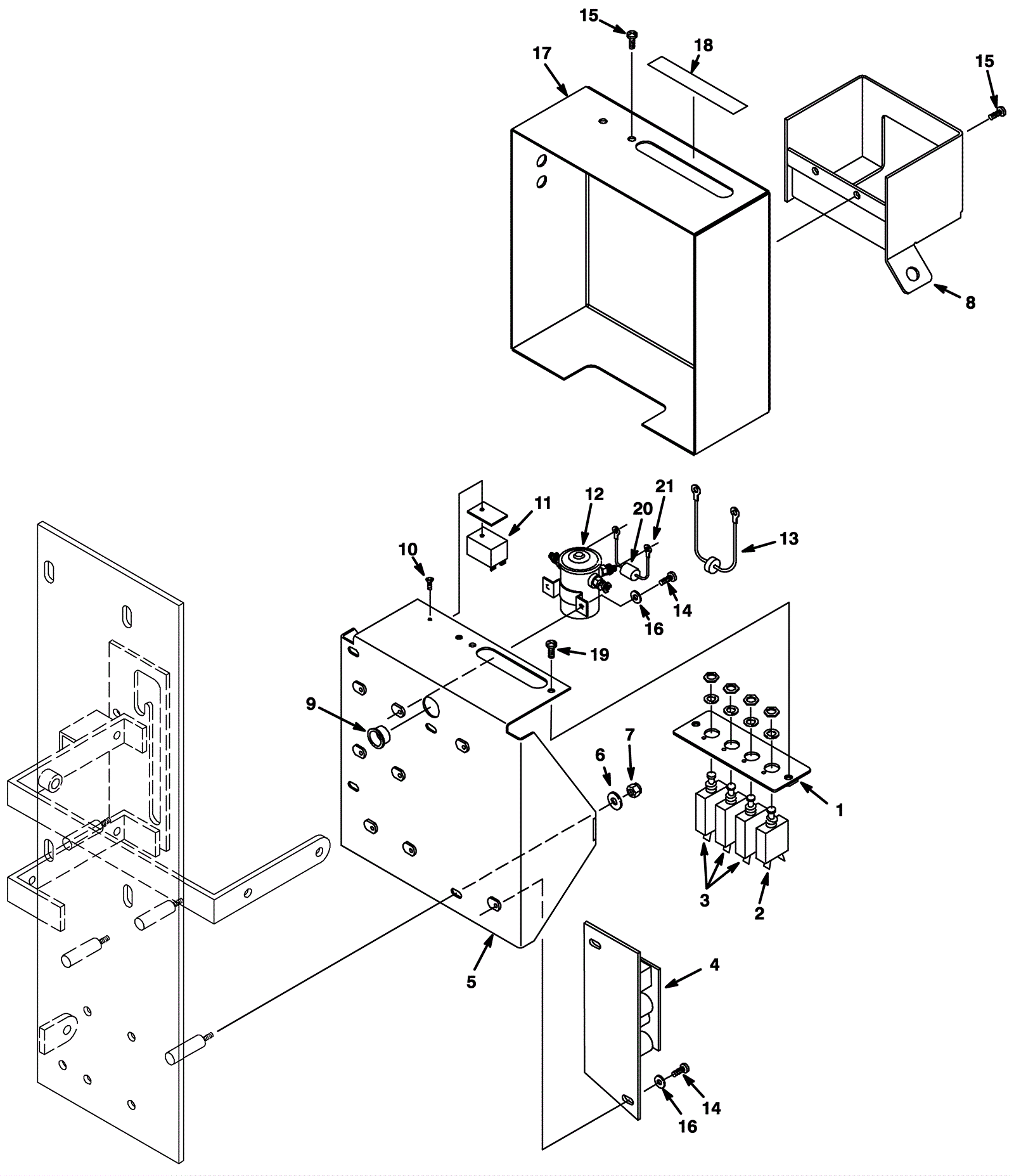

SPEEDSCRUB 3301 Electrical Panel Assembly - FaST Model

#PartDescriptionPriceReqNotesAvailability
1 275-5747 Circuit breaker bracket $34.39 1 usually ships 1-5 days
2 175-2761 10amp circuit breaker $108.68 1 usually ships 5-16 days
3 175-2762 35amp circuit breaker $136.51 3 usually ships 5-16 days
4 175-2763 Speed control assembly (OBSOLETE) $754.60 1 usually ships 5-16 days
5 275-5748 Electrical panel weldment $119.35 1 usually ships 1-5 days
6 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
7 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 4 ships same day
8 275-5749 Detergent box bracket $92.95 1 usually ships 1-5 days
9 175-2755 Snap bushing $3.08 1 usually ships 1-5 days
10 175-2943 Screw 4-40 x 3/8 (OBSOLETE) $0.99 1 usually ships 1-5 days
11 175-2756 24V flasher $87.01 1 usually ships 5-16 days
12 175-2023 24V solenoid contactor $62.15 3 ships same day
13 175-1182 Diode with ring terminals (large) $14.41 1 usually ships 5-16 days
14 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 8 ships same day
15 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 3 ships same day
16 999-0006 Washer 3/16 flat zinc plated $0.99 8 ships same day
17 275-5750 Electrical panel cover $231.88 1 usually ships 1-5 days
18 175-2759 Circuit breaker decal $49.61 1 usually ships 5-16 days
19 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 ships same day
20 175-2757 Diode with ring terminals (small) $11.11 3 usually ships 5-16 days
21 175-0924 #10 ring terminal $3.08 6 usually ships 5-16 days
