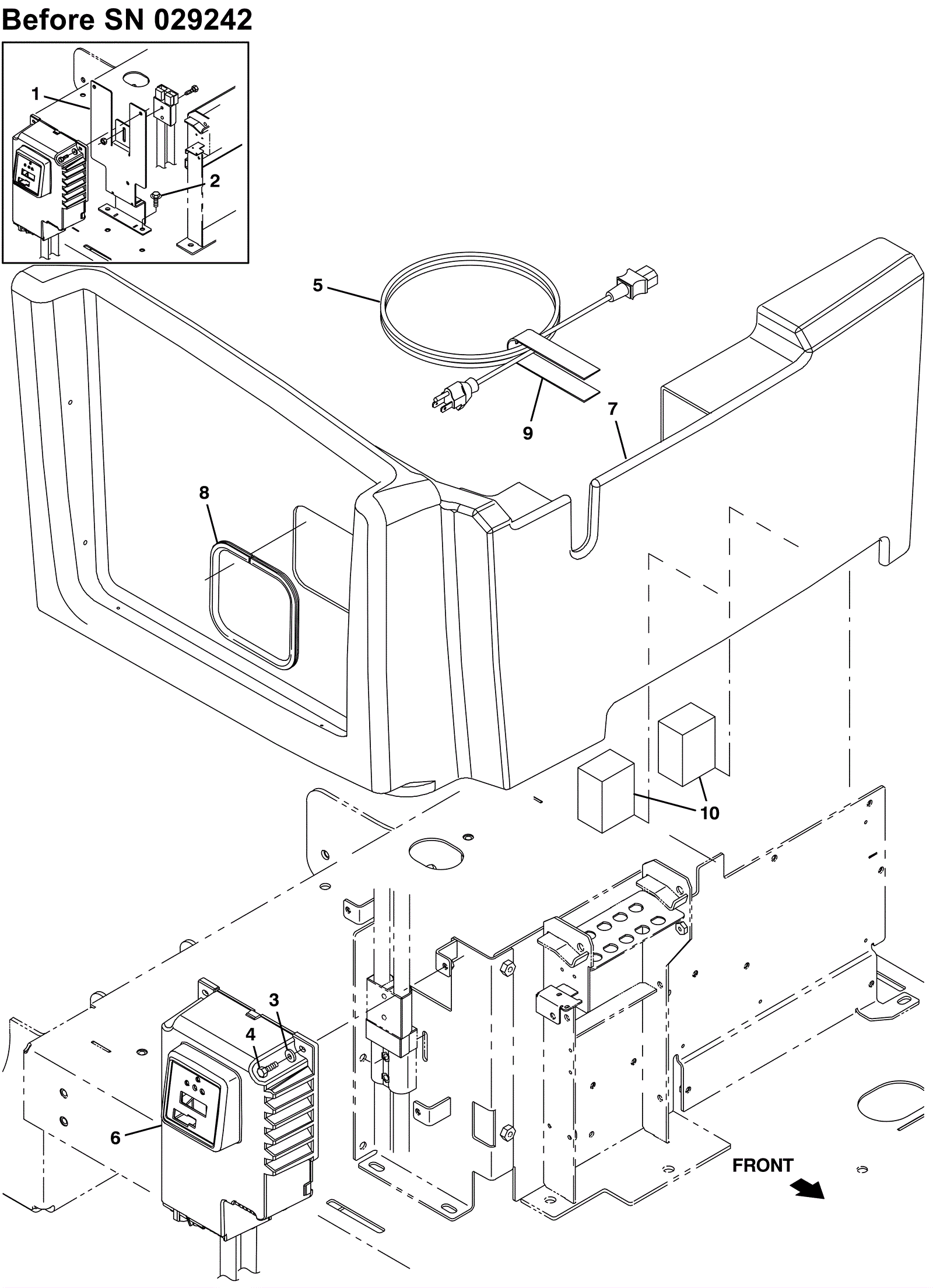

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-5700
|
Charger mounting bracket weldment (Tennant Industrial) |
1 |
(before SN 029242) |
|
2 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
2 |
(before SN 029242) |
|
3 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
4 |
275-0923
|
Screw M5 - 7/8 hex lock |
3 |
|
|
5a |
275-1585
|
16/3 charger power cord 15 foot (black) |
1 |
(OEM) |
|
5b |
991-8576
|
16/3 power cord 15 foot (black) |
1 |
(NON-OEM) |
|
6a |
675-9480
|
36V 20amp charger |
1 |
(includes 6b) |
|
6b |
275-1584
|
15amp fuse |
1 |
|
|
7 |
275-5702
|
Charger seat shroud (Tennant Industrial) |
1 |
|
|
8 |
275-8075
|
Trim |
1 |
|
|
9 |
275-7799
|
Fastener |
1 |
|
|
10 |
275-5703
|
Rubber seal |
2 |
|
|
