| # | Part | Description |
Req | Notes | Availability |
|---|

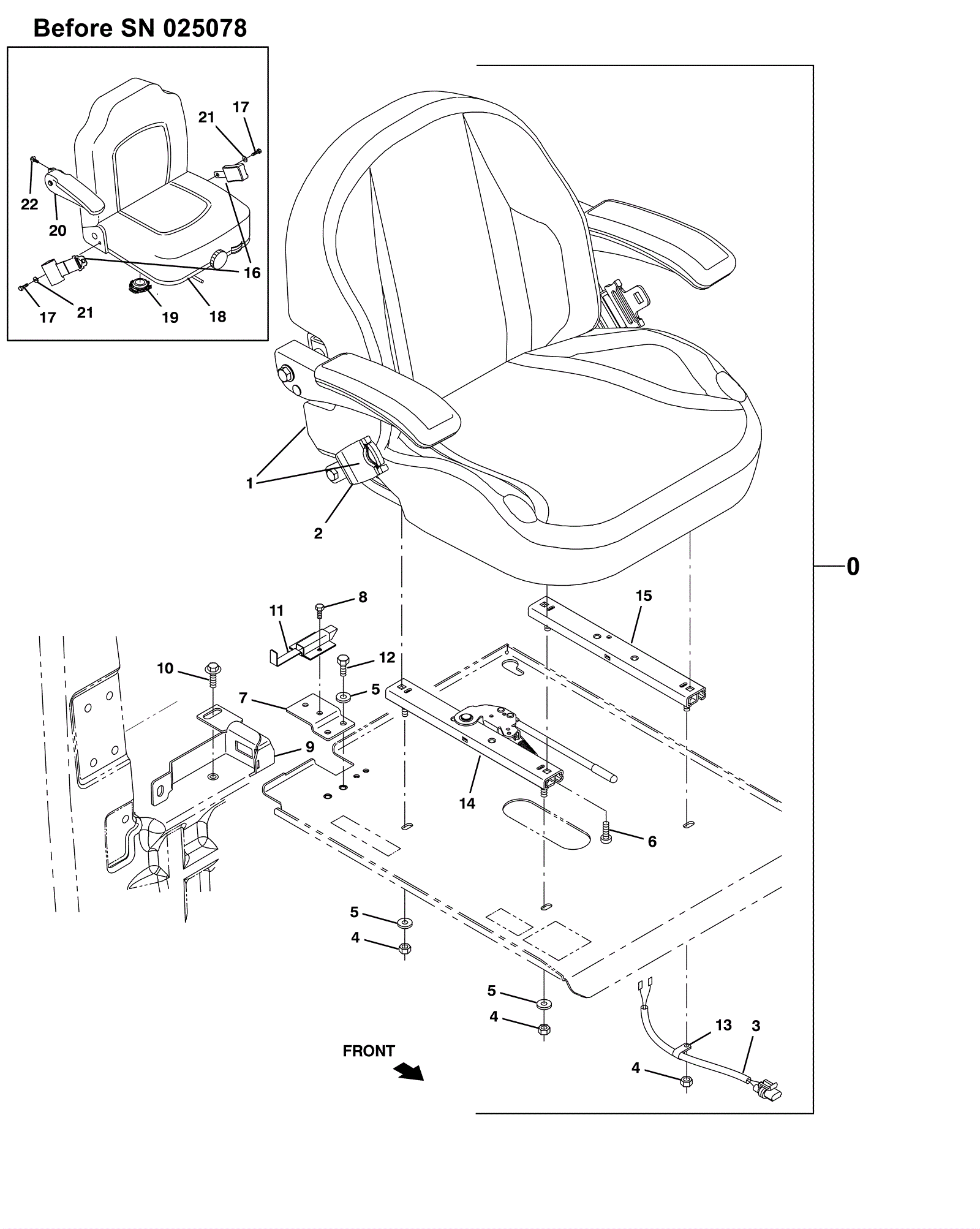

0 |
275-5699
|
Deluxe seat kit (Tennant Industrial) |
1 |
(includes 1-15) |
|
1 |
275-7592
|
Deluxe seat with armrests and seatbelt |
1 |
(after SN 025079) (includes 2) |
|
2 |
375-6965
|
Retractable seatbelt (orange) |
1 |
(after SN 025079) |
|
3 |
175-3190
|
Seat harness |
1 |
|
|
4 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
4 |
|
|
5 |
999-0024
|
Washer 5/16 flat stainless steel |
5 |
|
|
6 |
275-9278
|
SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial) |
4 |
(after SN 025079) |
|
7 |
275-5694
|
Latch mounting bracket (Tennant Industrial) |
1 |
|
|
8 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
2 |
|
|
9 |
275-5695
|
Latch bracket weldment (Tennant Industrial) |
1 |
|
|
10 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
1 |
|
|
11 |
275-7586
|
Latch (Tennant Industrial) |
1 |
|
|
12 |
175-0852
|
Bolt 5mm-.8 x 12 hex head |
2 |
|
|
13 |
175-6768
|
P clamp (Tennant Industrial) |
1 |
|
|
14 |
275-2671
|
11 1/2 inch seat adjuster rail (Tennant Industrial) |
1 |
(after SN 025079) |
|
15 |
275-8069
|
11 1/2 inch seat adjuster rail (OBSOLETE)- SEE NOTE |
1 |
(after SN 025079) |
|
16 |
275-5697
|
Retractable seatbelt (Tennant Industrial) |
1 |
(before SN 025080) |
|
17 |
275-5698
|
Screw 7/16-20 x 1 grade 5 hex head (Tennant Industrial) |
2 |
(before SN 025080) |
|
18 |
275-0165
|
Suspension seat |
1 |
(before SN 025080) (includes 19) |
|
19 |
175-0596
|
Seat switch |
1 |
(before SN 025080) |
|
20 |
275-5696
|
Right hand armrest (Tennant Industrial) |
1 |
(before SN 025080) |
|
21 |
275-5693
|
Washer 5/11 x 1 x 2/16 flat (Tennant Industrial) |
2 |
(before SN 025080) |
|
22 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
(before SN 025080) |
|
