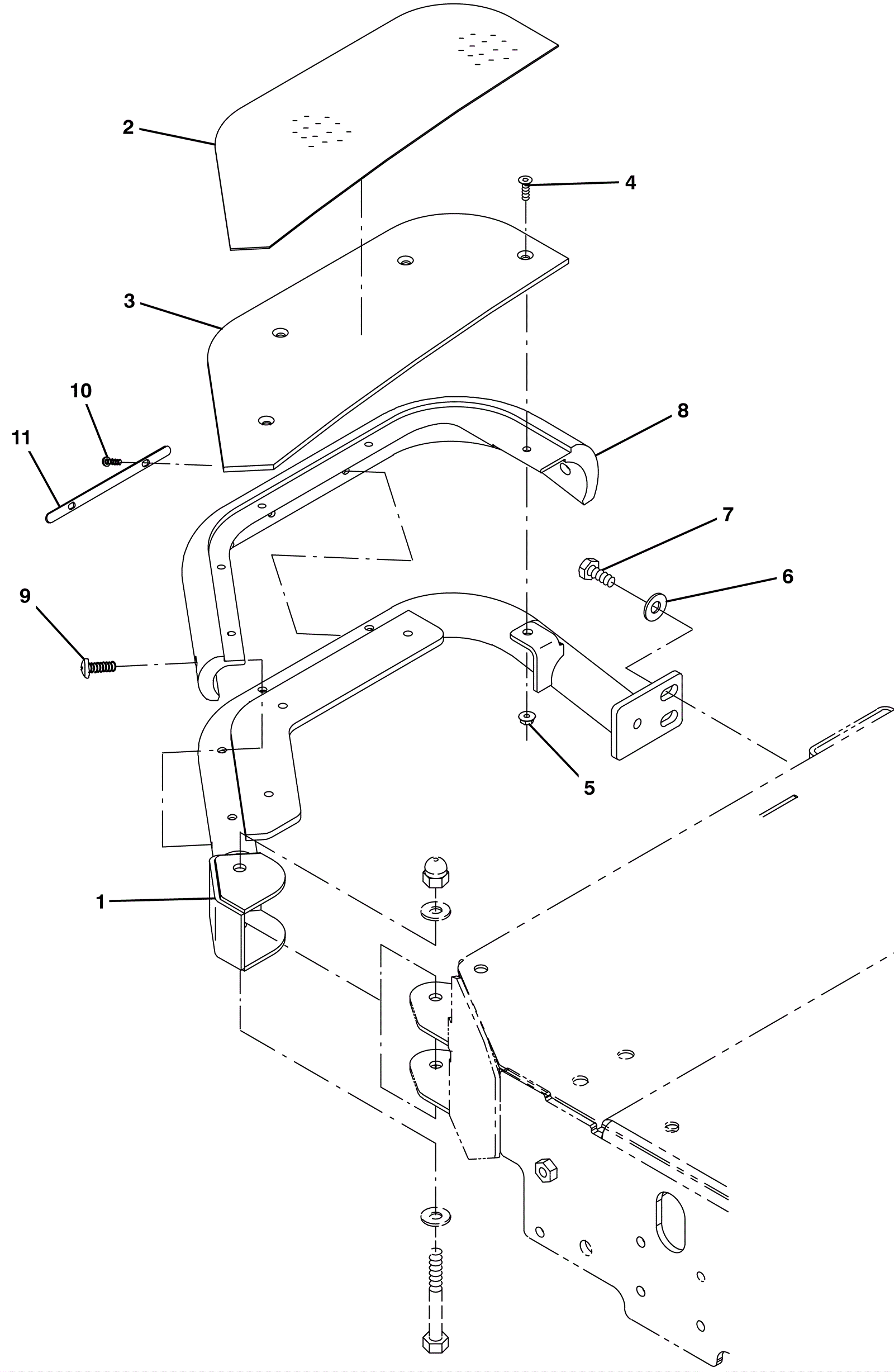

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-5687
|
Guard weldment (Tennant Industrial) |
1 |
|
|
2 |
275-5688
|
Non-skid step (Tennant Industrial) |
1 |
|
|
3 |
275-5689
|
Step plate (Tennant Industrial) |
1 |
|
|
4 |
175-0562
|
SCREW, FLT, SOC, M6 X 1.00 X 20, 10.9 (Tennant Industrial) |
4 |
|
|
5 |
999-6694
|
Nut M6-1 hex serrated flange stainless steel |
4 |
|
|
6 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
7 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
|
|
8 |
275-5690
|
Bumper (Tennant Industrial) |
1 |
|
|
9 |
275-5691
|
Screw M8-1.25 x 25mm pan head (black) (Tennant Industrial) |
2 |
|
|
10 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
2 |
|
|
11 |
275-5692
|
Bumper washer plate (Tennant Industrial) |
1 |
|
|
