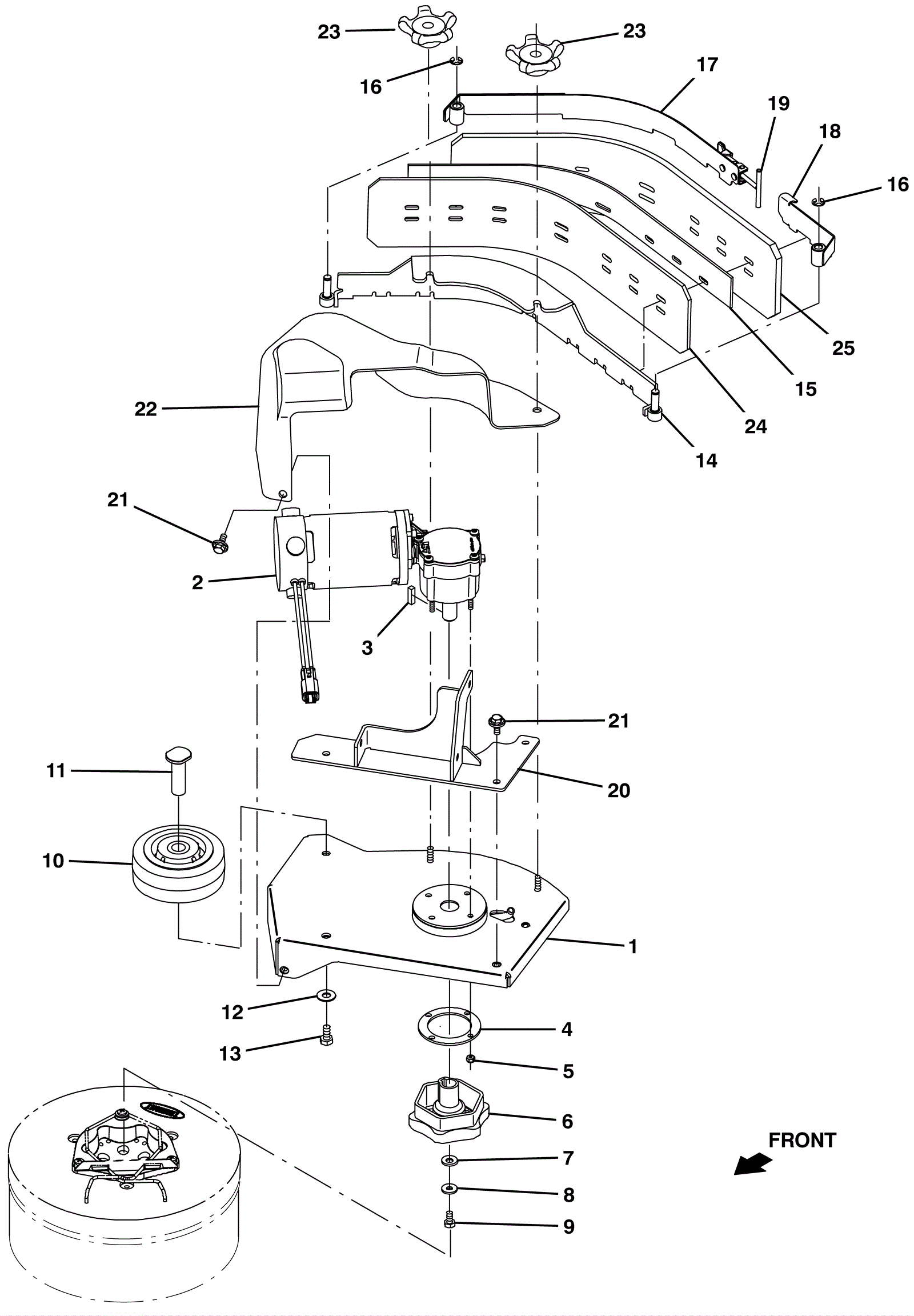

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-5657
|
Deck plate weldment (Tennant Industrial) |
1 |
|
|
2a |
275-7810
|
36V gear motor |
1 |
(includes 2b) |
|
2b |
275-7811
|
Motor brush kit |
1 |
|
|
3 |
175-5356
|
Square keyway |
1 |
|
|
4 |
275-8126
|
Support plate |
1 |
|
|
5 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
6 |
175-9525
|
Brush drive hub |
1 |
|
|
7 |
999-9097
|
Washer M8 flat stainless steel |
1 |
|
|
8 |
999-1407
|
Washer 5/16 belleville |
1 |
|
|
9 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
1 |
|
|
10 |
275-5658
|
Wheel (gray) (Tennant Industrial) |
1 |
|
|
11 |
275-5659
|
Wheel sleeve (Tennant Industrial) |
1 |
|
|
12 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
13 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
1 |
|
|
14 |
275-5660
|
Squeegee frame weldment (Tennant Industrial) |
1 |
|
|
15 |
275-5661
|
Squeegee spacer (Tennant Industrial) |
1 |
|
|
16 |
175-0814
|
Retaining ring (Tennant Industrial) |
2 |
|
|
17 |
275-5662
|
Front clamp weldment (Tennant Industrial) |
1 |
|
|
18 |
275-5663
|
Rear clamp weldment (Tennant Industrial) |
1 |
|
|
19 |
275-7396
|
Latch |
1 |
|
|
20 |
275-5664
|
Arm mount weldment (Tennant Industrial) |
1 |
|
|
21 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
22 |
275-5665
|
Motor cover (Tennnat Industrial) |
1 |
|
|
23 |
275-5632
|
Star knob assembly (Tennant Industrial) |
2 |
|
|
24a |
275-5666
|
Squeegee blade inner 36 inch linatex (Tennant Industrial) |
1 |
|
|
24b |
275-7369
|
Squeegee blade inner 36 inch urethane (Tennant Industrial) |
1 |
|
|
24c |
275-5667
|
Squeegee blade inner 36 inch gum rubber (Tennant Industrial) |
1 |
|
|
25a |
275-7368
|
Squeegee blade outer 36 inch linatex (Tennant Industrial) |
1 |
|
|
25b |
275-7370
|
Squeegee blade outer 36 inch urethane (Tennant Industrial) |
1 |
|
|
25c |
275-5668
|
Squeegee blade outer 36 inch gum rubber (Tennant Industrial) |
1 |
|
|
