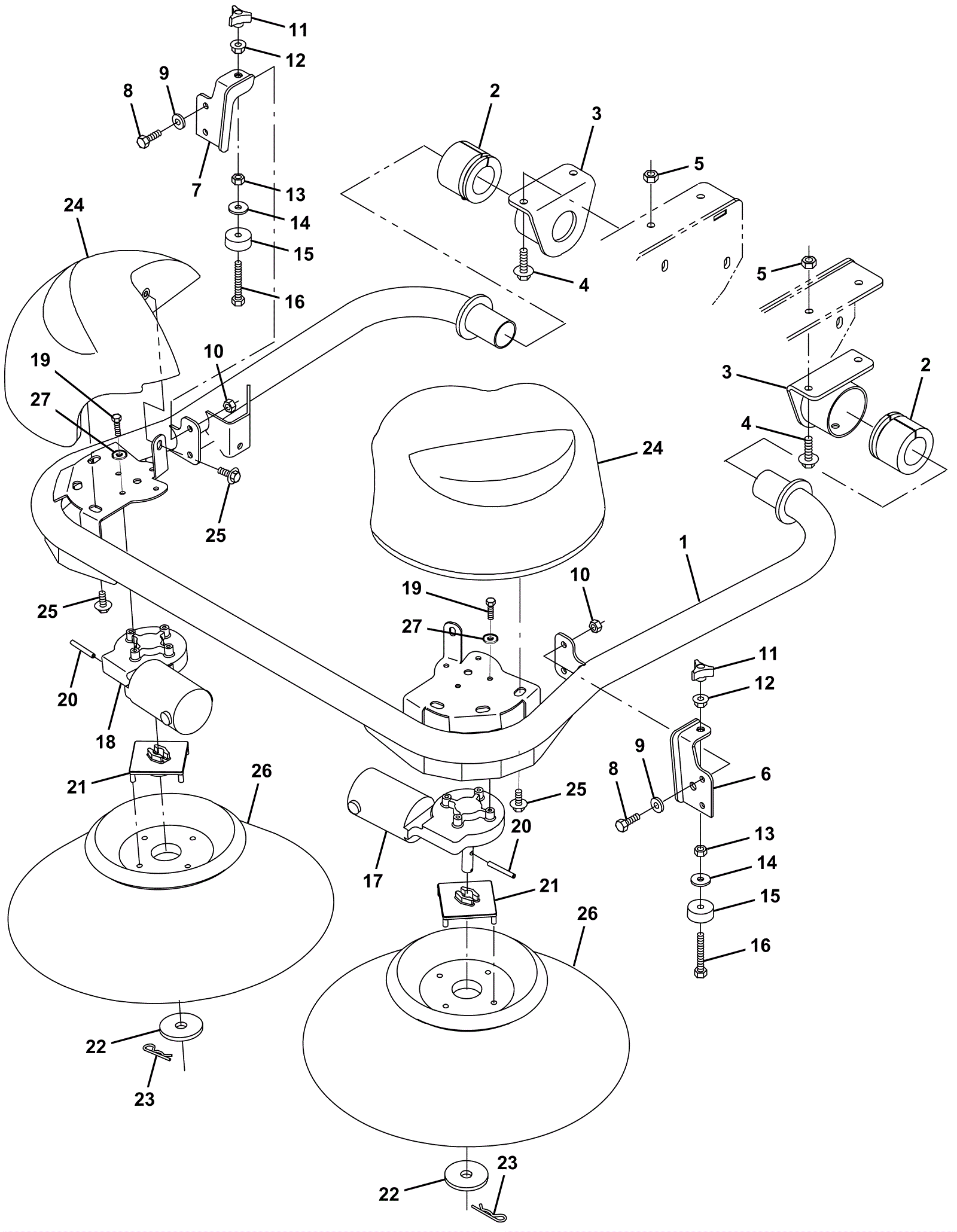

Pre-Sweep Side Brush Assembly

#PartDescription ReqNotesAvailability
1 275-5633 Side brush arm tube weldment (Tennant Industrial) 1
2 275-7707 Flex bushing (Tennant Industrial) 2
3 275-5634 Pivot housing weldment (Tennant Industrial) 2
4 275-2690 Screw M10-1 1/2 x 35mm hex head (Tennant Industrial) 4
5 999-9133 Nut M10-1.5 nut hex head stainless steel 4
6 275-5635 Left hand brush bracket weldment (Tennant Industrial) 1
7 275-5636 Right hand brush bracket weldment (Tennant Industrial) 1
8 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4
9 999-9097 Washer M8 flat stainless steel 4
10 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
11 175-2525 Knob 2
12 999-0665 Nut M8-1.25 flange lock 2
13 999-1424 Nut M8-1.25 hex stainless steel 2
14 175-7920 Washer M8 flat stainless steel 2
15 175-0745 BUMPER, RBR, 1.5D 0.63 0.31H (Tennant Industrial) 2
16 275-5637 Screw M8-1.25 x 80 hex head (Tennant Industrial) 2
17a 275-5638 36V left hand electric motor (Tennant Industrial) 1 (includes 17b-17e)
17b 275-0109 Carbon brush assembly 1
17c 175-9270 Brush cap 2
17d 175-9271 Brush holder 2
17e 175-9272 Clip 2
18 275-5639 36V right hand electric motor (Tennant Industrial) 1 (includes 17b-17e)
19 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 8
20 275-1660 PIN, ROLL, .250D X 2.00L, .250/.256 (Tennant Industrial) 2
21 275-7983 Brush adapter plate (Tennant Industrial) 2
22 275-7984 Washer (Tennant Industrial) (OBSOLETE) 2
23 175-2106 Cotter hair pin 2
24 275-5640 Cover (Tennant Industrial) 2
25 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 8
26 275-1971 Polypropylene side broom (Tennant Industrial) 2
27 999-1261 Washer M6 flat stainless steel 8
