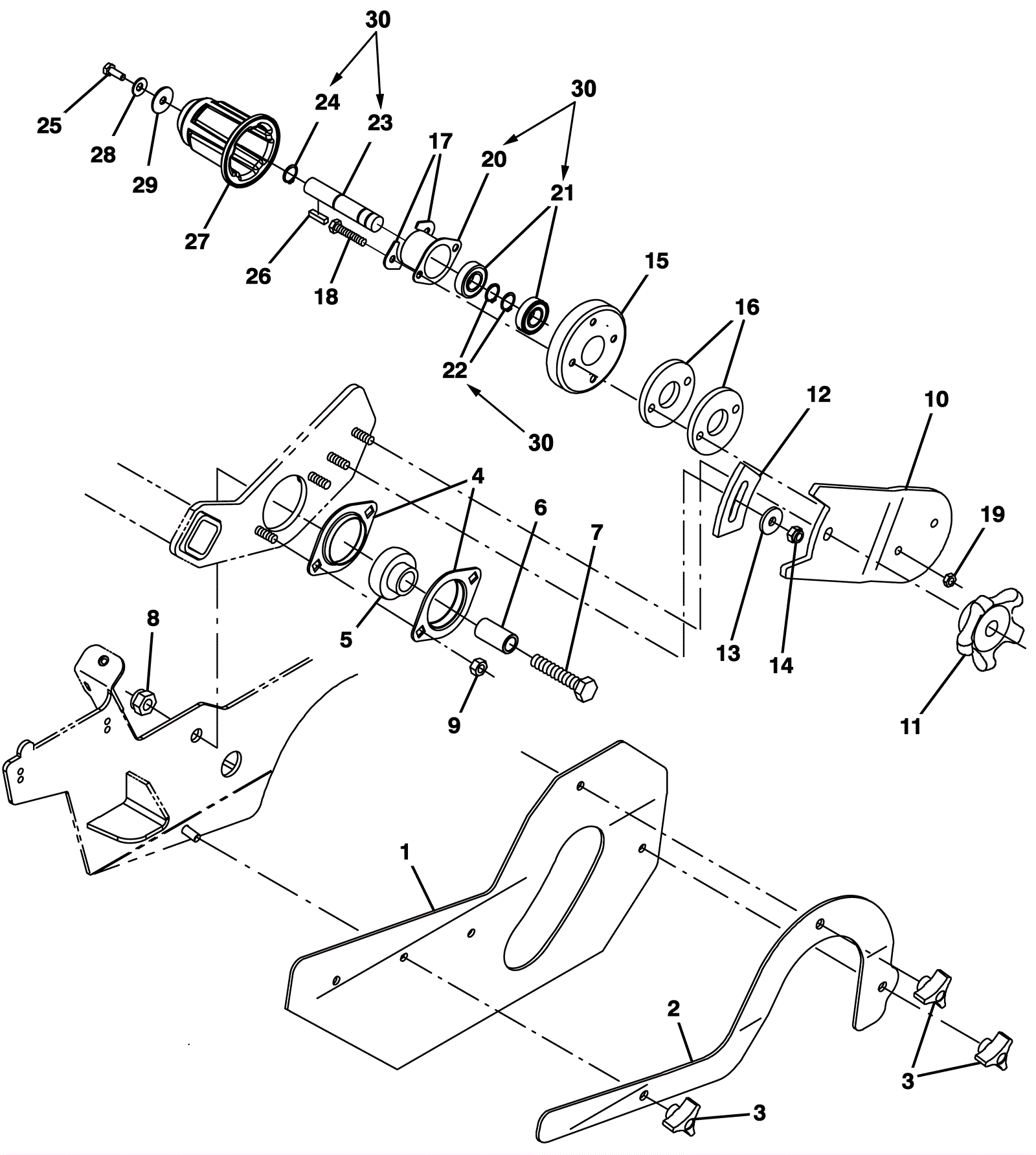

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-5621
|
Rubber skirt (Tennant Industrial) |
1 |
|
|
2 |
275-5630
|
Brush door plate (Tennant Industrial) |
1 |
|
|
3 |
175-2525
|
Knob |
3 |
|
|
4 |
275-0491
|
Bearing flange 1.91id 2h |
2 |
|
|
5 |
275-0492
|
Bearing with collar 3/4b 1.85d 1.06w |
1 |
|
|
6 |
275-5625
|
Tube (Tennant Industrial) |
1 |
|
|
7 |
175-6824
|
Screw M12-1 3/4 x 60mm hex |
1 |
|
|
8 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
|
9 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
10 |
275-5631
|
Left hand brush idler arm (Tennant Industrial) |
1 |
|
|
11 |
275-5632
|
Star knob assembly (Tennant Industrial) |
1 |
|
|
12 |
275-0465
|
Adjustment arm plate |
1 |
|
|
13 |
175-7920
|
Washer M8 flat stainless steel |
1 |
|
|
14 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
15 |
275-0095
|
SHIELD, PLUG, DRIVE (Tennant Industrial) |
1 |
|
|
16 |
275-0094
|
Brush arm spacer |
2 |
|
|
17 |
275-0096
|
PLATE, HOLD-DOWN (Tennant Industrial) |
2 |
|
|
18 |
999-9108
|
Screw M6-1 x 30mm hex head stainless steel |
2 |
|
|
19 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
20 |
175-8950
|
2 Hole flange bushing assembly |
1 |
|
|
21 |
175-2471
|
Ball bearing |
2 |
|
|
22 |
175-2472
|
Retaining ring |
2 |
|
|
23 |
275-8949
|
SHAFT, IDLER, BRUSH, MAIN (Tennant Industrial) |
1 |
|
|
24 |
275-8947
|
RING, RETAINING, EXT, 0.59D, BASIC (Tennant Industrial) |
1 |
|
|
25 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
26 |
175-8818
|
Square keyway |
1 |
|
|
27 |
275-0098
|
PLUG, DRIVE, BRUSH, NYL (Tennant Industrial) |
1 |
|
|
28 |
999-0892
|
Washer 1/4 x 1 zinc plated fender |
1 |
|
|
29 |
275-0092
|
Washer 1/4 flat belleville |
1 |
|
|
30 |
275-0105
|
BEARING ASSY, W/ SHAFT (Tennant Industrial) |
1 |
(includes 20-24) |
|
