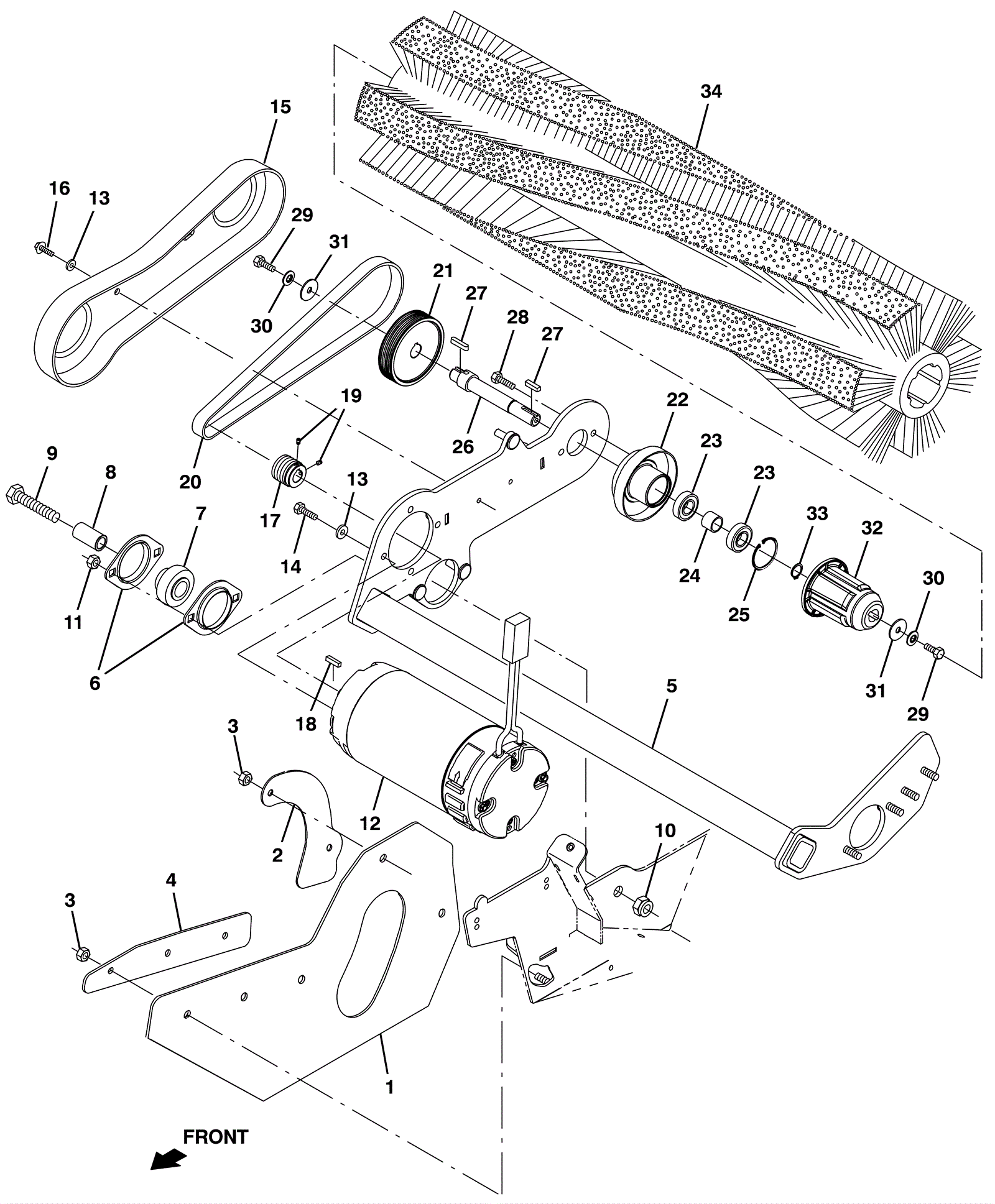

Pre-Sweep Brush Drive Assembly

#PartDescription ReqNotesAvailability
1 275-5621 Rubber skirt (Tennant Industrial) 1
2 275-5622 Skirt retainer plate (Tennant Industrial) 1
3a 175-3166 Bolt M6-1 x 16mm hex head 5 (hardware is different on some machines, you will need to see if you have screws or nuts)
3b 999-0469 Nut M6-1 nylon insert lock zinc plated 5 (hardware is different on some machines, you will need to see if you have screws or nuts)
4 275-5623 Skirt retainer plate (Tennant Industrial) 1
5 275-5624 Brush arm weldment (Tennant Industrial) 1
6 275-0491 Bearing flange 1.91id 2h 2
7 275-0492 Bearing with collar 3/4b 1.85d 1.06w 1
8 275-5625 Tube (Tennant Industrial) 1
9 175-6824 Screw M12-1 3/4 x 60mm hex 1
10 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
11 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
12a 275-7662 36V 22Ah electric motor 1 (includes 12b)
12b 275-1277 Brush motor kit 1
13 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
14 999-1312 Screw M6-1 x 20mm hex head stainless steel 4
15 275-5626 Pre-sweep belt cover (Tennant Industrial) 1
16 175-3166 Bolt M6-1 x 16mm hex head 2
17 275-7663 Sheave (Tennant Industrial)(OBSOLETE) 1
18 275-1468 Square keyway 1
19 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 2
20 275-5627 Drive belt (Tennant Industrial) 1
21 275-1278 Sheave (Tennant Industrial) 1
22 275-5628 Pre-sweep housing weldment (Tennant Industrial) 1
23 175-9094 Ball bearing 2
24 275-1281 Spacer (Tennant Industrial) 1
25 175-9098 Basic retaining ring (Tennant Industrial) 1
26 275-5629 Pre-sweep drive shaft (Tennant Industrial) 1
27 175-8818 Square keyway 2
28 999-1312 Screw M6-1 x 20mm hex head stainless steel 2
29 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
30 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
31 999-1407 Washer 5/16 belleville 2
32 275-0098 PLUG, DRIVE, BRUSH, NYL (Tennant Industrial) 1
33 175-2472 Retaining ring 1
34 175-9209 Polypropelene sweeping brush - CYLINDRICAL 1
