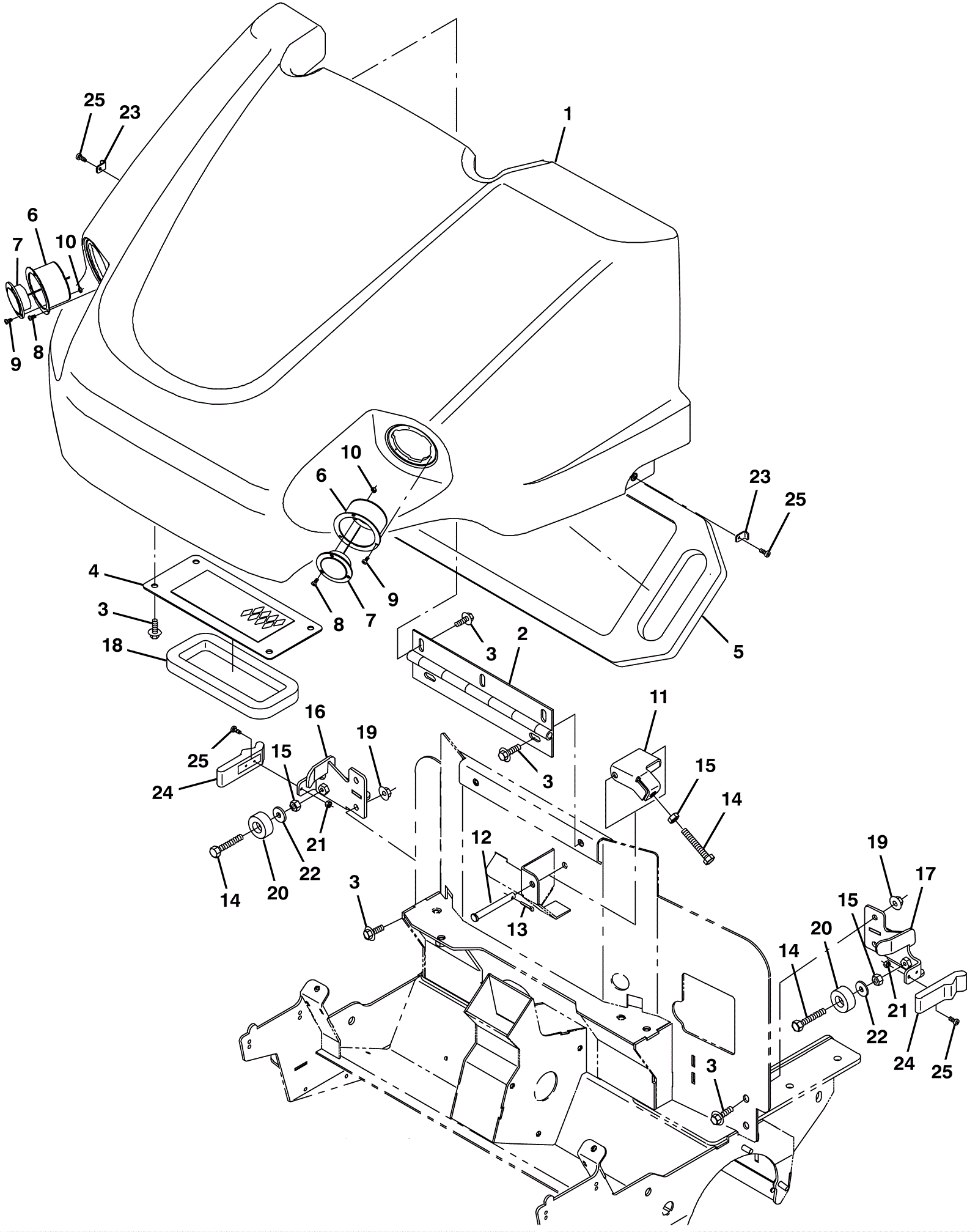

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-5586
|
Pre-sweep cover (Tennant Industrial) |
1 |
|
|
2 |
275-5587
|
Hinge (Tennant Industrial) |
1 |
|
|
3 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
13 |
|
|
4 |
275-5588
|
Hopper screen plate weldment (Tennant Industrial) |
1 |
|
|
5 |
275-5589
|
Filter box gasket (Tennant Industrial) |
1 |
|
|
6 |
275-5590
|
Headlight mounting bracket (Tennant Industrial) |
2 |
|
|
7 |
275-7763
|
Pre-sweep light assembly (Tennant Industrial) |
2 |
|
|
8 |
275-7890
|
Screw 6 x .38 plastic pan head (Tennant Industrial) |
6 |
|
|
9 |
999-1222
|
Screw M3-.5 x 10mm pan head stainless steel |
6 |
|
|
10 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
6 |
|
|
11 |
275-5591
|
Stop hinge bracket (Tennant Industrial) |
1 |
|
|
12 |
275-8362
|
PIN, CLEVIS, 0.37D X 3.25L (Tennant Industrial) |
1 |
|
|
13 |
275-3234
|
PIN, COTTER, .094 X 0.50 (Tennant Industrial) |
1 |
|
|
14 |
999-1692
|
Screw M8-1.25 x 50mm hex stainless steel |
3 |
|
|
15 |
999-1424
|
Nut M8-1.25 hex stainless steel |
3 |
|
|
16 |
275-5592
|
Latch mounting bracket weldment (Tennant Industrial) |
1 |
|
|
17 |
275-5593
|
Latch cover mounting bracket weldment (Tennant Industrial) |
1 |
|
|
18 |
275-5594
|
Gasket (Tennant Industrial) |
1 |
|
|
19 |
999-0665
|
Nut M8-1.25 flange lock |
2 |
|
|
20 |
175-0745
|
BUMPER, RBR, 1.5D 0.63 0.31H (Tennant Industrial) |
2 |
|
|
21 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
22 |
175-7920
|
Washer M8 flat stainless steel |
2 |
|
|
23 |
275-5595
|
Latch keeper mounting bracket (Tennant Industrial) |
2 |
|
|
24a |
175-3369
|
Hood latch |
2 |
(OEM) |
|
24b |
991-8561
|
Rubber draw latch with keeper |
2 |
(NON-OEM) |
|
25 |
999-0534
|
Screw M4-.7 x 10mm pan head slotted zinc |
6 |
|
|
