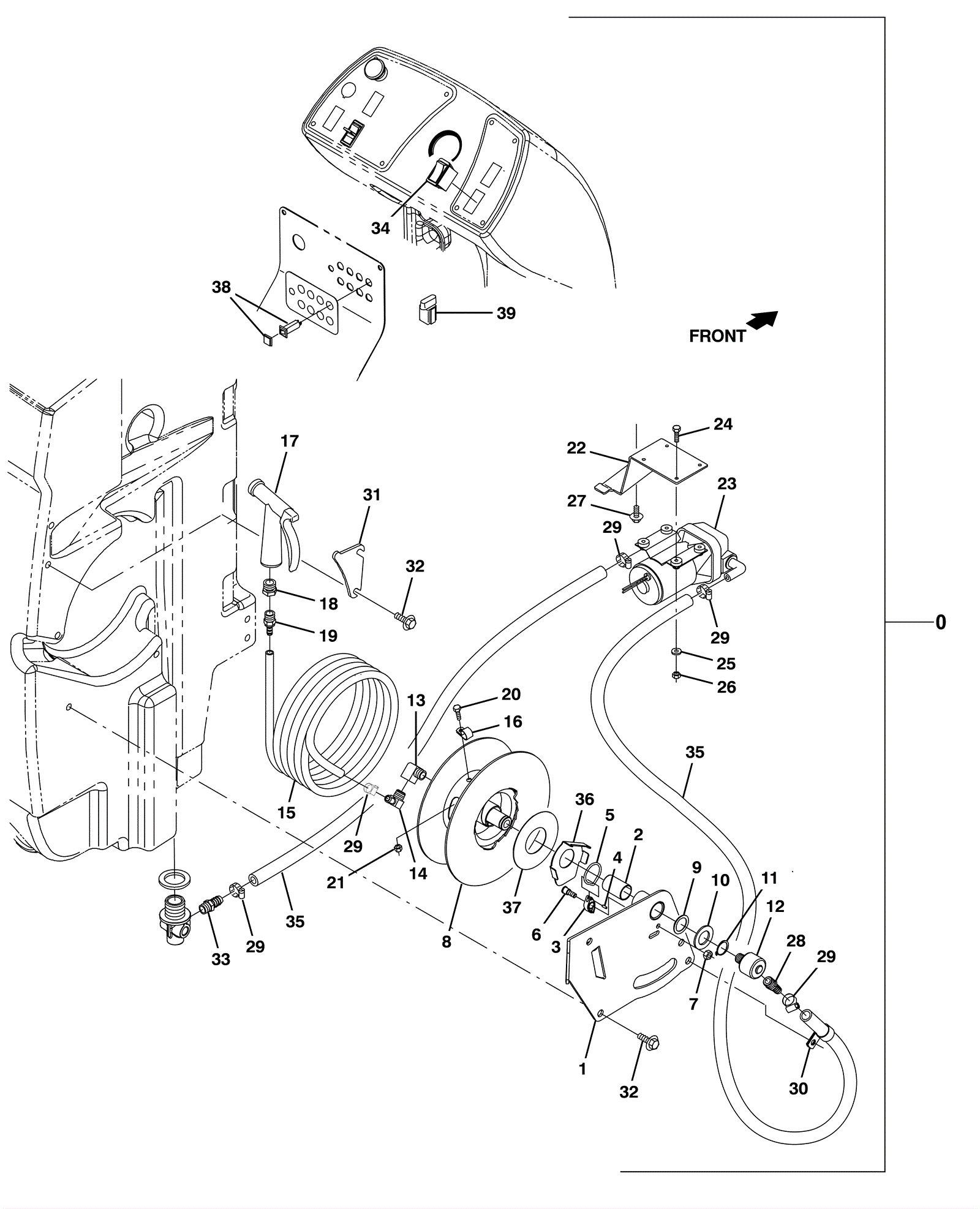

Spray Hose Kit

#PartDescription ReqNotesAvailability
0 275-5573 Spray hose kit (Tennant Industrial) 1 (includes 1-39)
1 275-5574 Mounting weldment plate (Tennant Industrial) 1
2 275-7864 Bushing (Tennant Industrial) 1
3 275-5575 Ratchet pawl (Tennant Industrial) 1
4 275-5576 Dowel pin (Tennant Industrial) 1
5 275-5577 Seal (Tennant Industrial) 1
6 275-7861 Bolt M8 x 1.25 (Tennant Industrial) 1
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
8 275-5578 Hose reel assembly (Tennant Industrial) 1
9 275-7865 Washer 1.02 x 1.38 plastic thrust (Tennant Industrial) 1
10 275-7866 Washer 1.02 x 1.75 flat (Tennant Industrial) 1
11 175-3294 Retaining ring 1
12 275-5579 Swivel fitting (Tennant Industrial) 1
13 275-8231 FITTING, BRS, E90, PF06/PM06, SPCL (Tennant Industrial) 1
14 275-7863 90 degree brass elbow (Tennant Industrial) 1
15 275-5580 Hose kit (Tennant Industrial) 1
16 275-0559 P clamp 1
17 275-7874 Spray gun nozzle 1
18 275-7873 Brass fitting 1
19 275-7872 Swivel fitting (Tennant Industrial) 1
20 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 1
21 999-0469 Nut M6-1 nylon insert lock zinc plated 1
22 275-5581 Spray wand bracket (Tennant Industrial) 1
23 275-7852 36V solution pump (Tennant Industrial) 1
24 175-3382 Bolt M5-.8 x 25mm hex head stainless steel 4
25 999-0998 Washer #10 flat stainless steel 4
26 999-0740 Nut M5-.8 hex stainless steel 4
27 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 1
28 175-1025 Straight brass fitting 1
29 175-6081 Hose clamp 5
30 175-2260 P clamp 1
31 275-5582 Nozzle hook (Tennant Industrial) 1
32 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 5
33 175-5234 Plastic fitting 1
34 275-0120 DPDT rocker switch 1
35 175-9703 HOSE, AFMKT, PVC, BRD, 0.50ID, 08FT, CLR (Tennant Industria 1
36 275-5583 Spring retainer washer (Tennant Industrial) 1
37 275-7867 Thrust washer (Tennant Industrial) 1
38 175-5969 15amp circuit breaker (Tennant Industrial) 1
39 275-7853 Diode plug (Tennant Industrial) 1
