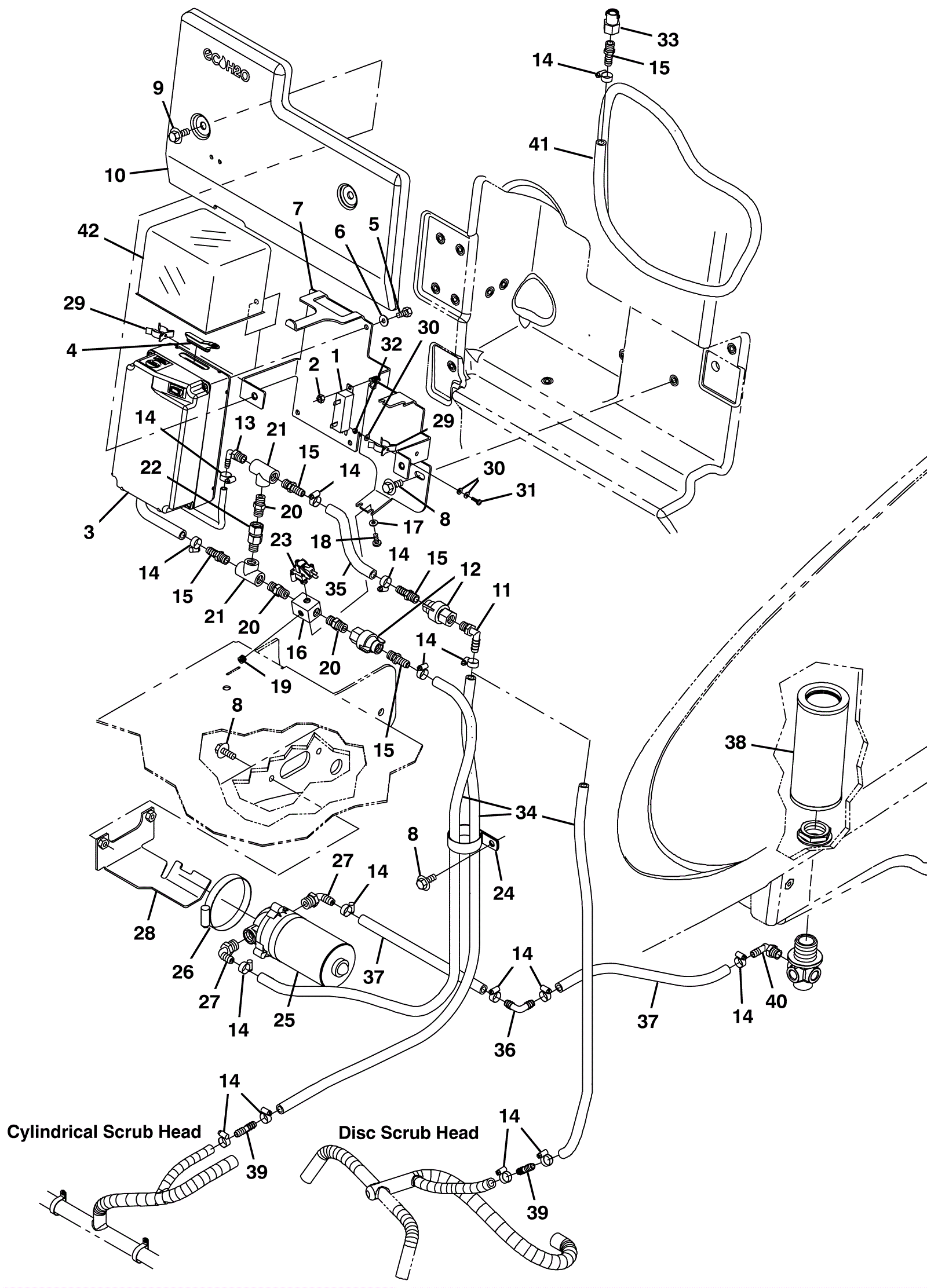

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-2597
|
Resistor (Tennant Industrial) |
1 |
|
|
2 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
|
|
3 |
275-7912
|
ec-H2O module kit (Tennant Industrial) |
1 |
|
|
4 |
275-5946
|
Grommet |
1 |
|
|
5 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
|
|
6 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
7 |
275-5540
|
Mounting bracket (ec-H20) (Tennant Industrial) |
1 |
|
|
8 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
5 |
|
|
9 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
2 |
|
|
10 |
275-5541
|
Pocket cover (ec-H20) (Tennant Industrial) |
1 |
|
|
11 |
175-6926
|
Plastic elbow fitting |
1 |
|
|
12 |
275-5542
|
Fitting assembly (Tennant Industrial) |
2 |
|
|
13 |
275-8335
|
FITTING, PLSTC, E90, BM04/PM04, NYL |
1 |
|
|
14 |
175-3594
|
Hose clamp |
14 |
|
|
15 |
175-7218
|
Plastic straight fitting |
5 |
|
|
16 |
275-7792
|
Fitting (Tennant Industrial) |
1 |
|
|
17 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
18 |
999-1225
|
Screw M5-.8 x 12mm pan head phillips zinc |
2 |
|
|
19 |
175-6121
|
Brass plug |
1 |
|
|
20 |
275-7244
|
Straight plastic fitting (Tennant Industrial) |
3 |
|
|
21 |
275-7245
|
Tee plastic fitting (Tennant Industrial) |
2 |
|
|
22 |
275-2598
|
30 PSI check valve (Tennant Industrial) |
1 |
|
|
23 |
275-7329
|
SWITCH, PRESS, 25 PSI, PM02 (Tennant Industrial) |
1 |
|
|
24 |
275-5543
|
Cable clamp (Tennant Industrial) |
1 |
|
|
25 |
175-5242
|
36V solution pump |
1 |
|
|
26 |
997-2009
|
Hose clamp |
1 |
|
|
27 |
175-7933
|
90 degree plastic elbow |
2 |
|
|
28 |
275-5544
|
Solution pump bracket (Tennant Industrial) |
1 |
|
|
29 |
275-5545
|
Finger grip clip (Tennant Industrial) |
2 |
|
|
30 |
999-0377
|
Washer 6 SAE flat plain finish |
6 |
|
|
31 |
175-4933
|
Screw M3-.5 x 12mm pan head |
2 |
|
|
32 |
999-0768
|
Nut M3-.5 hex coarse thread plain finish |
2 |
|
|
33 |
275-5546
|
Spray body plastic fitting (Tennant Industrial) |
1 |
|
|
34 |
275-1534
|
3 foot PVC hose (braided) (Tennant Industrial) |
3 |
|
|
35 |
275-4939
|
1 foot PVC hose clear |
1 |
|
|
36 |
175-8716
|
FITTING, PLSTC, E90, BM06/BM06 (Tennant Industrial) |
1 |
|
|
37 |
275-8237
|
HOSE, AFMKT, PVC, BRD, 0.38ID, 02FT, CLR (Tennant Industria |
2 |
|
|
38 |
275-5547
|
Solution filter (Tennant Industrial) |
1 |
|
|
39 |
275-8703
|
Straight plastic fitting (Tennant Industrial) |
1 |
|
|
40 |
175-6019
|
90 degree barbed elbow |
1 |
|
|
41 |
275-7845
|
8 foot clear PVC hose (Tennant Industrial) |
1 |
|
|
42 |
275-5548
|
Silicon cap |
1 |
(after SN 024267) |
|
43 |
375-4507
|
Split case inductor |
1 |
(after SN 029279) |
|
44 |
275-4752
|
Capacitor plug |
1 |
|
|
