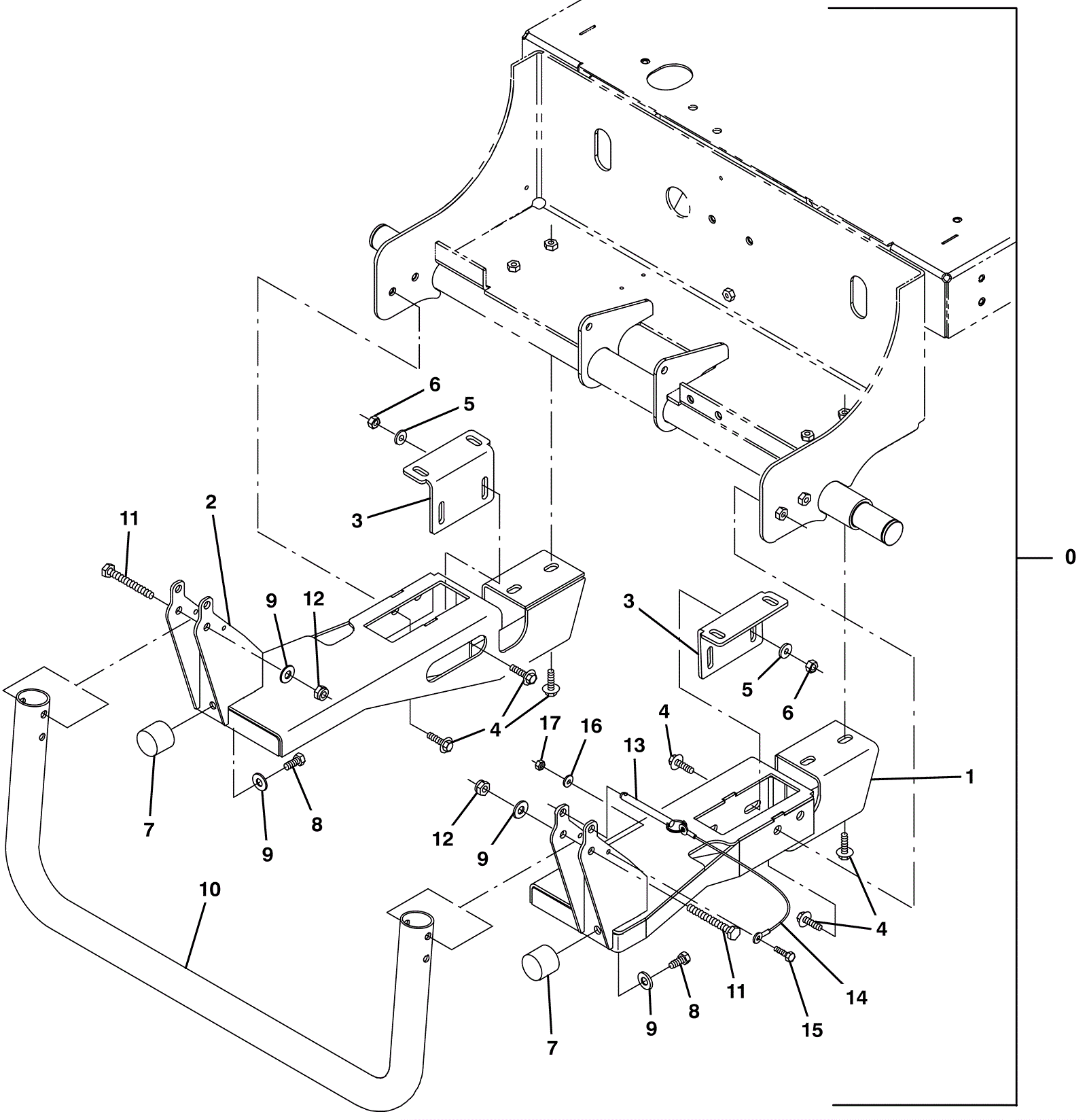

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-5535
|
Right hand bumper channel weldment (Tennant Industrial) |
1 |
|
|
2 |
275-5536
|
Left hand bumper channel weldment (Tennant Industrial) |
1 |
|
|
7 |
275-7776
|
Bumper (Tennant Industrial) |
2 |
|
|
8 |
475-7423
|
SCREW, HEX, .38-16 X 0.88, SS (Tennant Industrial) |
2 |
|
|
13 |
175-9789
|
PIN, HITCH, .375D X 3.12L, PL (Tennant Industrial) |
1 |
|
|
14 |
275-5539
|
12 inch cable (Tennant Industrial) |
1 |
|
|
15 |
275-0923
|
Screw M5 - 7/8 hex lock |
1 |
|
|
16 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
17 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
