| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-5531
|

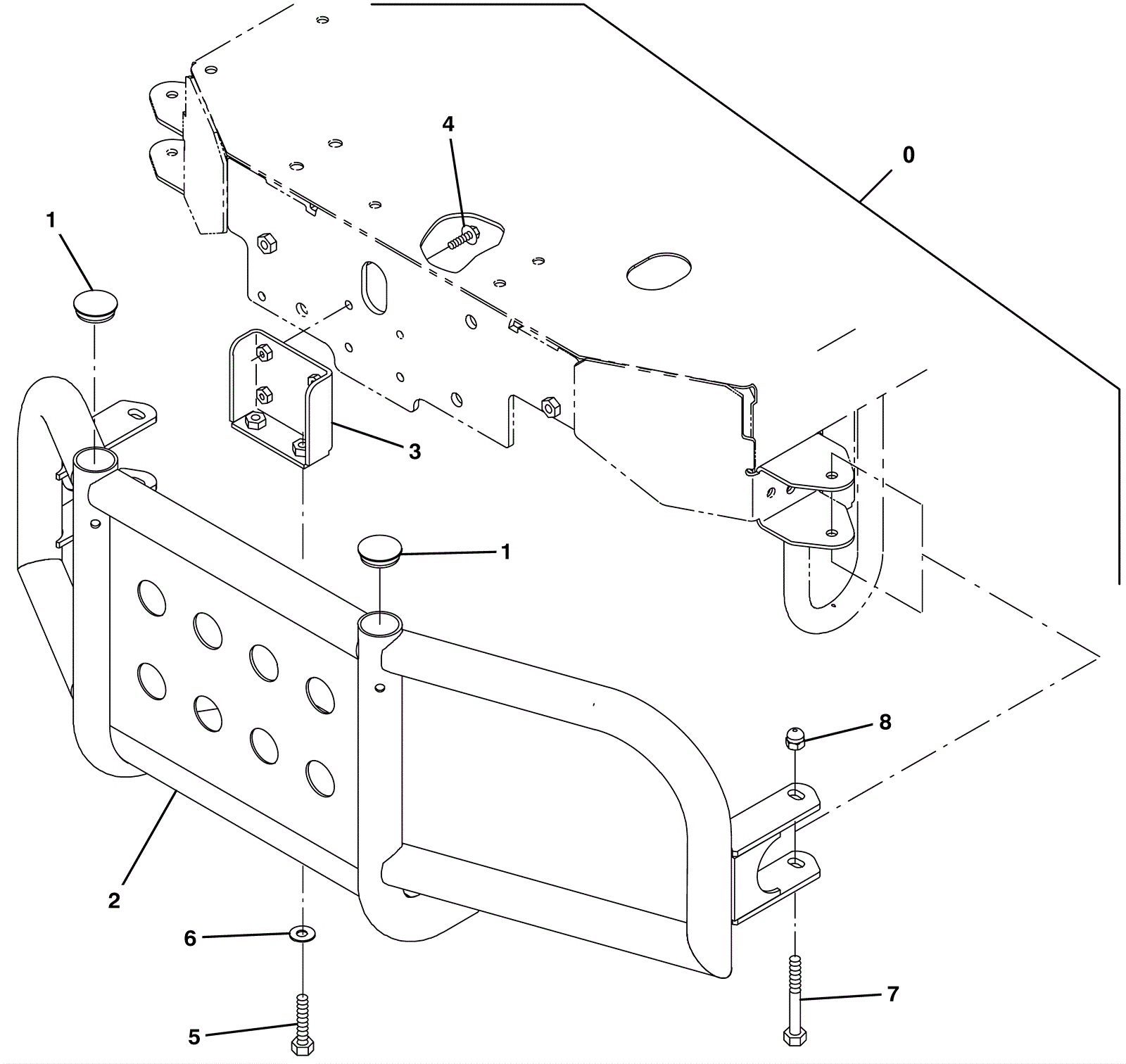

Front bumper kit (Tennant Industrial) |
1 |
(includes 1-8) |
|
1 |
175-2147
|
Nylon plug (black) |
2 |
|
|
2 |
275-5532
|
Bumper tube weldment (Tennant Industrial) |
1 |
|
|
3 |
275-5533
|
Bumper mounting angle (Tennant Industrial) |
1 |
|
|
4 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
4 |
|
|
5 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
|
|
6 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
7 |
475-8656
|
SCREW, HEX, M10 X 1.50 X 100, SS (Tennant Industrial) |
2 |
|
|
8 |
275-2656
|
Nut M10 x 1 1/2 low crown black (Tennant Industrial) |
2 |
|
|
