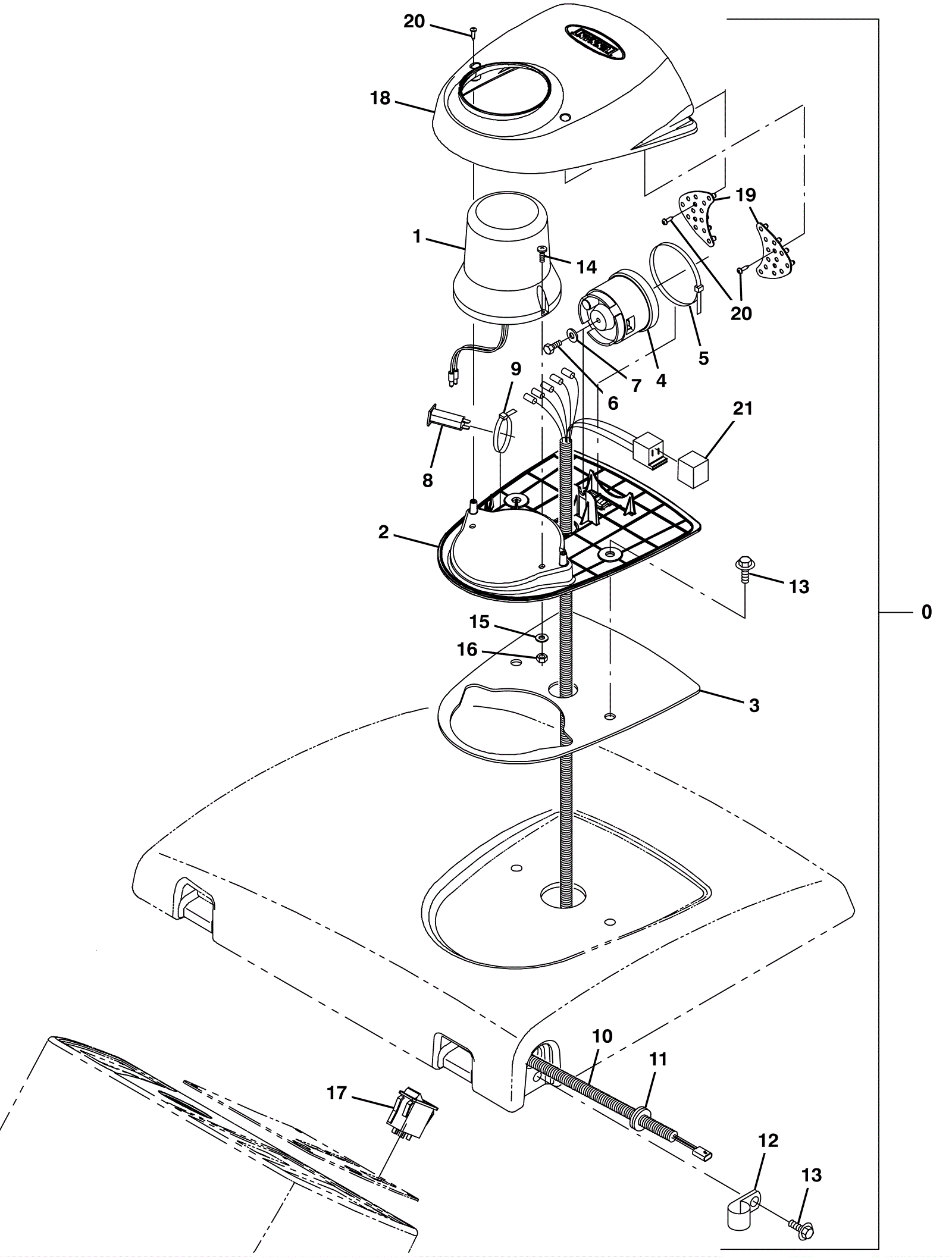

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-5520
|
Strobe light kit (Tennant Industrial) |
1 |
(includes 1-21) |
|
1a |
275-7765
|
Strobe light |
1 |
(includes 1b and 1c) |
|
1b |
275-4678
|
Bulb |
1 |
|
|
1c |
275-4675
|
Lens |
1 |
|
|
2 |
275-7766
|
Light base (Tennant Industrial) |
1 |
|
|
3 |
275-7767
|
Base gasket |
1 |
|
|
4 |
275-7768
|
Backup alarm (Tennant Industrial) |
1 |
|
|
5 |
175-2202
|
Nylon wire tie |
1 |
|
|
6 |
999-0821
|
Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc |
1 |
|
|
7 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
8 |
275-5483
|
2.5amp circuit breaker |
1 |
|
|
9 |
175-2162
|
Nylon wire tie |
1 |
|
|
10 |
275-7769
|
Wire harness (Tennant Industrial) |
1 |
|
|
11 |
275-3903
|
GROMMET, RBR, 0.69ID, F/1.0H, .25 MATL (Tennant Industrial) |
1 |
|
|
12 |
175-0559
|
P clamp |
1 |
|
|
13 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
3 |
|
|
14 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
2 |
|
|
15 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
16 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
|
|
17 |
275-8550
|
SWITCH, ROCKER, PRGRSV (Tennant Industrial) |
1 |
|
|
18 |
275-7770
|
Light cover (Tennant Industrial) |
1 |
|
|
19 |
275-7771
|
LED light assembly (Tennant Industrial) |
1 |
|
|
20 |
175-2146
|
Screw 6-20 x 1/2 pan head |
6 |
|
|
21 |
175-2265
|
36V 5amp relay |
1 |
|
|
N/S |
275-7186
|
Lens (red) (Tennant Industrial) |
1 |
|
|
N/S |
275-7187
|
Lens (blue) (Tennant Industrial) |
1 |
|
|
