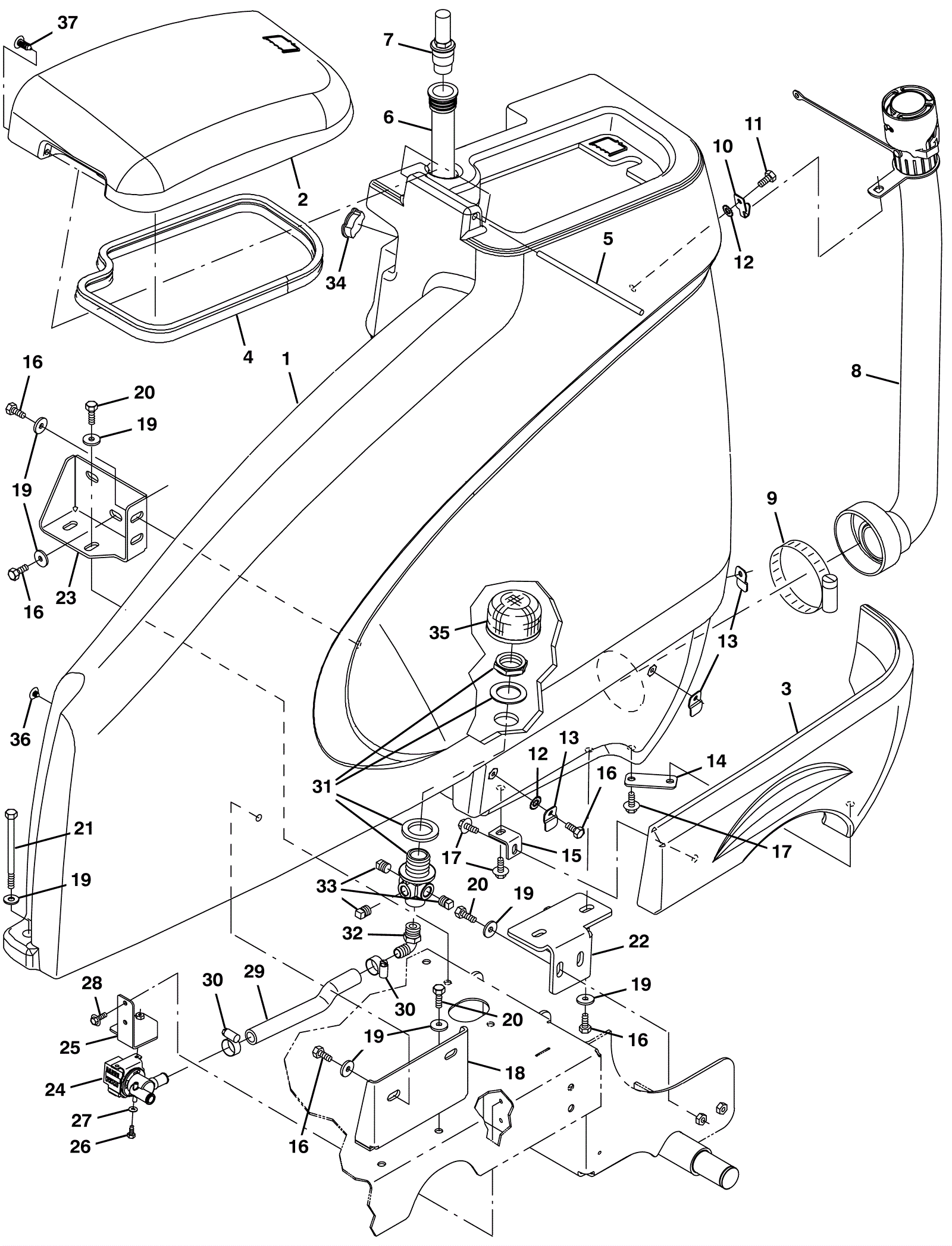

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-5487
|
Solution tank (Tennant Industrial) |
1 |
|
|
2a |
275-5488
|
Solution tank cover (ec-H20) (Tennant Industrial) |
1 |
(ec-H2O) |
|
2b |
275-5489
|
Solution tank cover (FaST) (Tennant Industrial) |
1 |
(FaST) |
|
3 |
275-5490
|
Left hand rear bumper (Tennant Industrial) |
1 |
|
|
4 |
275-7372
|
SEAL, AFMKT, BULB, DUAL, 08FT [F/.30GAP] |
1 |
|
|
5 |
275-5491
|
8 1/2 inch round plastic bar (Tennant Industrial) |
1 |
|
|
6 |
275-5492
|
Float tube assembly |
1 |
|
|
7 |
275-6295
|
Pressure sensor (TENNANT INDUSTRIAL) |
1 |
|
|
8a |
475-3771
|
HOSE ASSY, DRAIN, 2.00ID X 33.9L, BLK |
1 |
(before SN 027621) |
|
8b |
475-3771
|
HOSE ASSY, DRAIN, 2.00ID X 33.9L, BLK |
1 |
(after SN 027620) |
|
9 |
275-7690
|
Hose clamp (Tennant Industrial) |
1 |
|
|
10 |
275-1309
|
Hose mounting bracket (Tennant Industrial) |
1 |
(before SN 027621) |
|
11 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
1 |
|
|
12 |
175-2893
|
Washer 5/16 internal/external locking |
4 |
|
|
13 |
275-1310
|
Bumper mounting bracket (Tennant Industrial) |
3 |
|
|
14 |
275-1311
|
Bumper mounting plate (Tennant Industrial) |
1 |
|
|
15 |
275-1312
|
Bumper mounting angle (Tennant Industrial) |
1 |
|
|
16 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
9 |
|
|
17 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
18 |
275-5493
|
Solution tank mounting bracket (Tennant Industrial) |
1 |
|
|
19 |
175-7920
|
Washer M8 flat stainless steel |
13 |
|
|
20 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
6 |
|
|
21 |
275-1474
|
Screw M8-1.25 x 110mm hex head (Tennant Industrial) |
1 |
|
|
22 |
275-5494
|
Left hand tank support bracket (Tennant Industrial) |
1 |
|
|
23 |
275-5495
|
Front tank mounting bracket (Tennant Industrial) |
1 |
|
|
24 |
275-6500
|
Solenoid valve (Tennant Industrial) |
1 |
|
|
25 |
275-5496
|
Water valve mounting bracket (Tennant Industrial) |
1 |
|
|
26 |
999-1220
|
Screw M5-.8 x 12mm hex head stainless steel |
2 |
|
|
27 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
28 |
475-8328
|
SCREW, HEX, M6 X 1.00 X 16, FMG SS (Tennant Industrial) |
2 |
|
|
29 |
275-8348
|
HOSE, AFMKT, PVC, BRD, 0.62ID, 01FT, CLR (Tennant Industria |
1 |
|
|
30 |
175-0199
|
Hose clamp |
2 |
|
|
31 |
275-7702
|
Solution fitting assembly (Tennant Industrial) |
1 |
|
|
32 |
175-3437
|
Plastic fitting |
1 |
|
|
33 |
175-4759
|
3/8 inch nylon plug |
3 |
|
|
34 |
175-3415
|
Solution tank plug |
1 |
|
|
35 |
275-9543
|
FILTER, SOLTN, 20MESH, PM12 3.1D 02.6L |
1 |
|
|
36 |
275-1313
|
Nylon round plug (Tennant Industrial) |
2 |
|
|
37 |
275-5497
|
Nylon round plug (Tennant Industrial) |
1 |
|
|
38 |
475-3439
|
BRACKET, MTG, HOSE |
1 |
(after SN 027620) |
|
