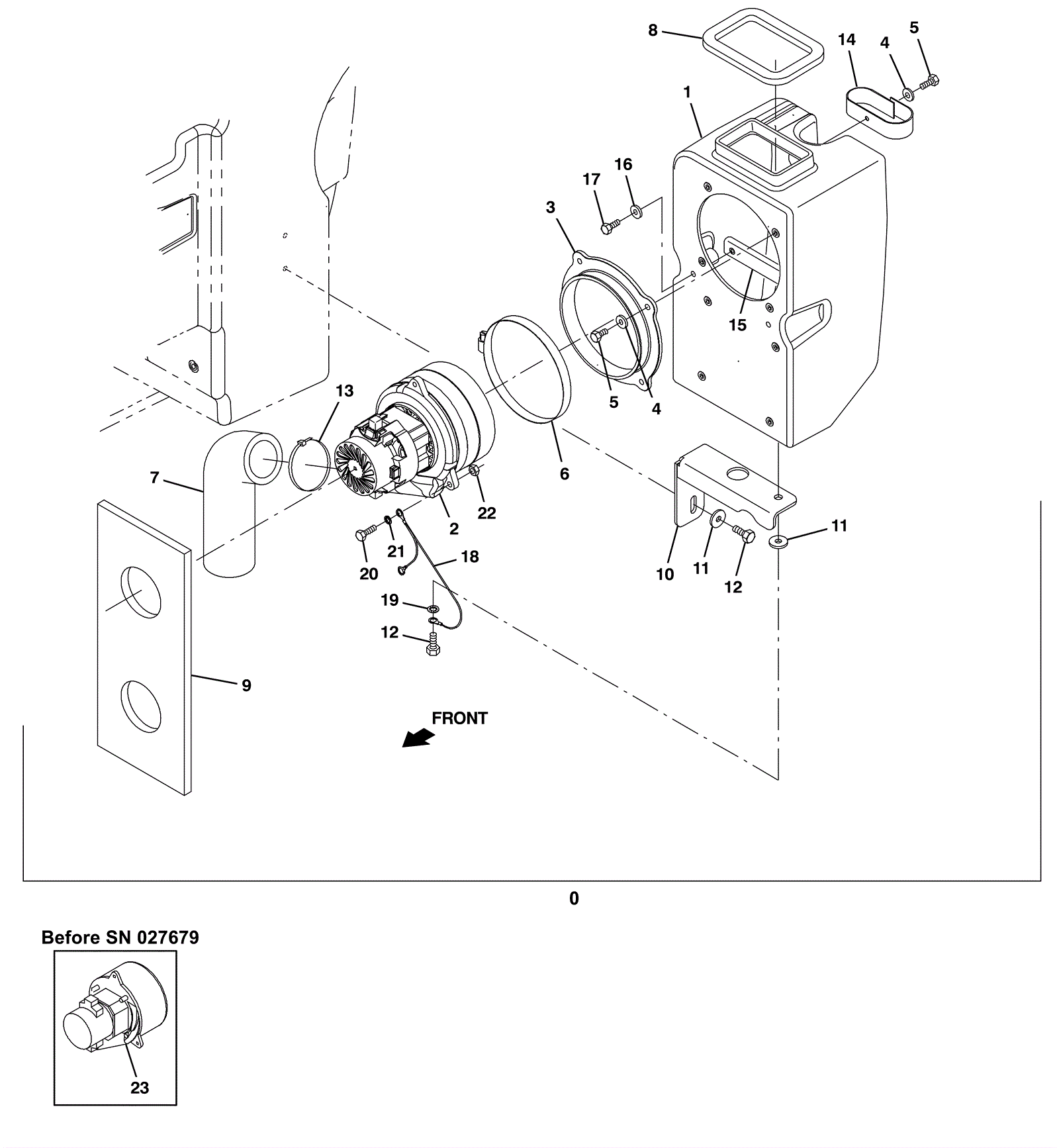

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-1316
|
Vacuum motor housing (Tennant Industrial) |
1 |
|
|
2b |
275-5816
|
Carbon brush kit (pkg of 2) |
1 |
(after SN 027680) |
|
3 |
275-1318
|
Vacuum motor mounting seal (Tennant Industrial) |
1 |
|
|
4 |
275-0093
|
WASHER, FLAT, 0.28B 1.00D .06, STL (Tennant Industrial) |
5 |
|
|
5 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
5 |
|
|
6 |
275-7695
|
Hose clamp (Tennant Industrial) |
1 |
|
|
7 |
275-1319
|
Vacuum motor muffler (Tennant Industrial) |
1 |
|
|
9 |
275-1321
|
Acoustic insulation (Tennant Industrial) |
1 |
|
|
10 |
275-1322
|
Fan housing mounting bracket (Tennant Industrial) |
1 |
|
|
11 |
175-7920
|
Washer M8 flat stainless steel |
3 |
|
|
12 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
3 |
|
|
13 |
175-2202
|
Nylon wire tie |
1 |
|
|
14 |
275-7799
|
Fastener |
1 |
|
|
15 |
275-1323
|
Housing stiffener bracket (Tennant Industrial) |
1 |
|
|
16 |
175-2009
|
WASHER, SEALING, 0.28B 0.75D SS, NEO |
2 |
|
|
17 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
|
18 |
375-6018
|
Vacuum harness |
1 |
(after SN 029279) |
|
20 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
(after SN 029279) |
|
22 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
(after SN 029279) |
|
23 |
275-1317
|
36V 3 stage vacuum motor (Tennant Industrial) |
1 |
(before SN 027679) |
|
