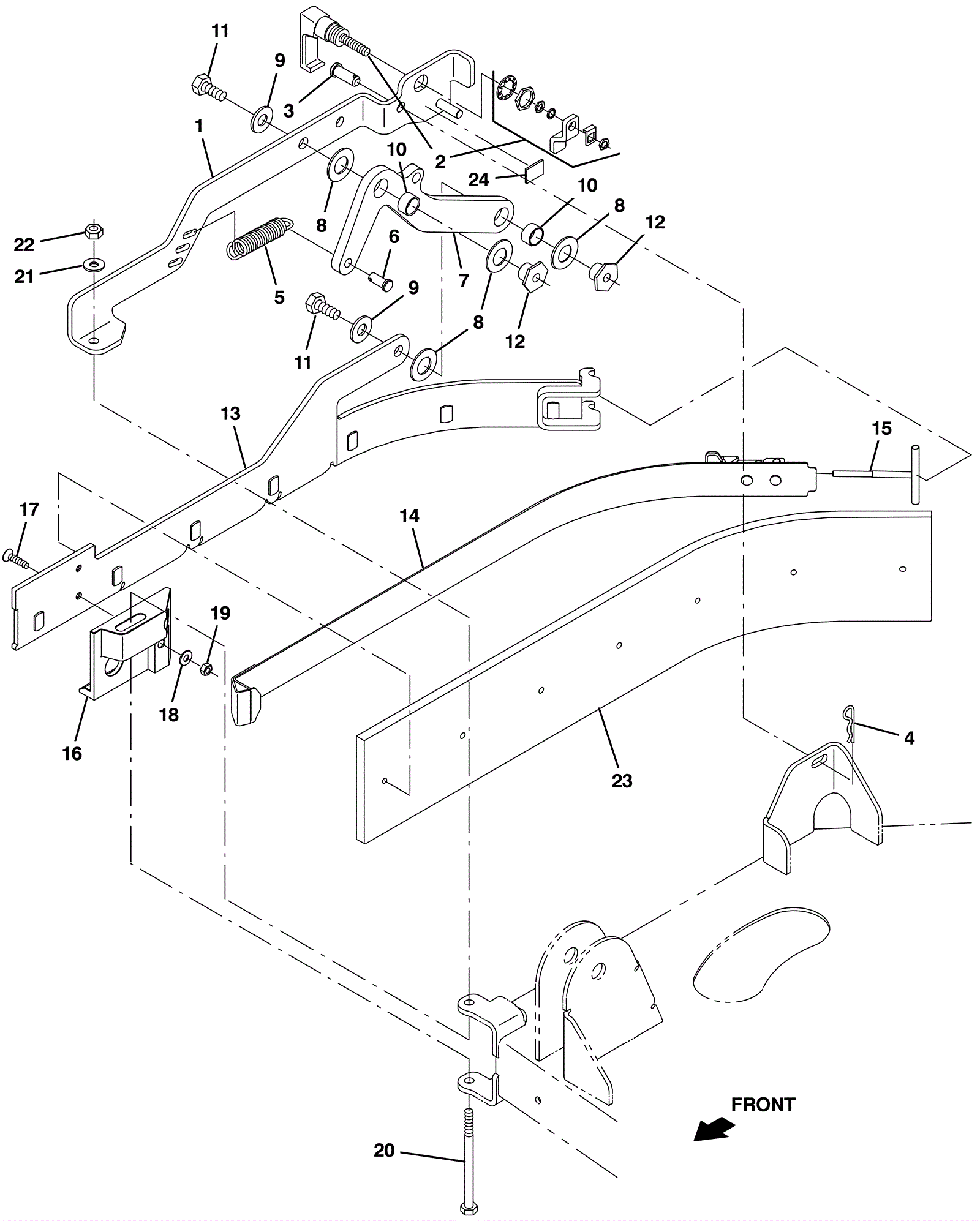

T16 Scrub Head Right Hand Side Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
KIT1 675-5063 Right hand squeegee arm kit $694.47 1 (includes 1-19) usually ships 13-17 days
1 275-1290 Side squeegee bracket (Tennant Industrial) $83.02 1 usually ships 13-17 days
2 275-7341 Latch (yellow) $28.05 1 usually ships 13-17 days
3 175-0637 Clevis pin $4.49 1 usually ships 13-17 days
4 175-2117 Cotter pin $5.28 1 usually ships 13-17 days
5 175-3345 Extension spring $10.01 1 ships same day
6 175-0655 Clevis pin $4.49 1 usually ships 13-17 days
7 275-1291 Squeegee bellcrank lift (Tennant Industrial) $49.18 1 usually ships 13-17 days
8 175-3347 Washer .61 thrust $5.50 4 usually ships 13-17 days
9 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 usually ships 19-32 days
10 175-3349 Sleeved bushing $13.64 2 usually ships 13-17 days
11 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 2 ships same day
12 275-9507 NUT, T, M10 X 1.50 X 15.80OD X 13.0L (Tennant Industrial) $33.01 2 usually ships 13-17 days
13 275-1292 Right hand squeegee weldment (Tennant Industrial) $189.87 1 usually ships 13-17 days
14 275-7339 STRAP ASSY, SQGE, SIDE (Tennant Industrial) $293.39 1 usually ships 13-17 days
15 275-7396 Latch $33.11 1 usually ships 13-17 days
16 275-6590 Right hand squeegee guide (Tennant Industrial) $7.17 1 usually ships 13-17 days
17 475-7402 SCREW, FLT, SOC, M6 X 1.00 X 25, SS (Tennant Industrial) $1.83 1 usually ships 13-17 days
18 275-1464 WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial) $9.50 1 usually ships 1-5 days
19 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
20 275-1474 Screw M8-1.25 x 110mm hex head (Tennant Industrial) $8.17 2 ships same day
21 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
22 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
23a 275-6499 Squeegee blade linatex (TENNANT INDUSTRIAL) $105.52 1 usually ships 13-17 days
23b 275-7389 Squeegee blade polyurethane (Tennant Industrial) $211.21 1 usually ships 13-17 days
23c 275-1293 Squeegee blade 36 inch side gum (Tennant Industrial) $80.35 1 ships same day
24 375-7041 Gasket $52.62 1 usually ships 13-17 days
