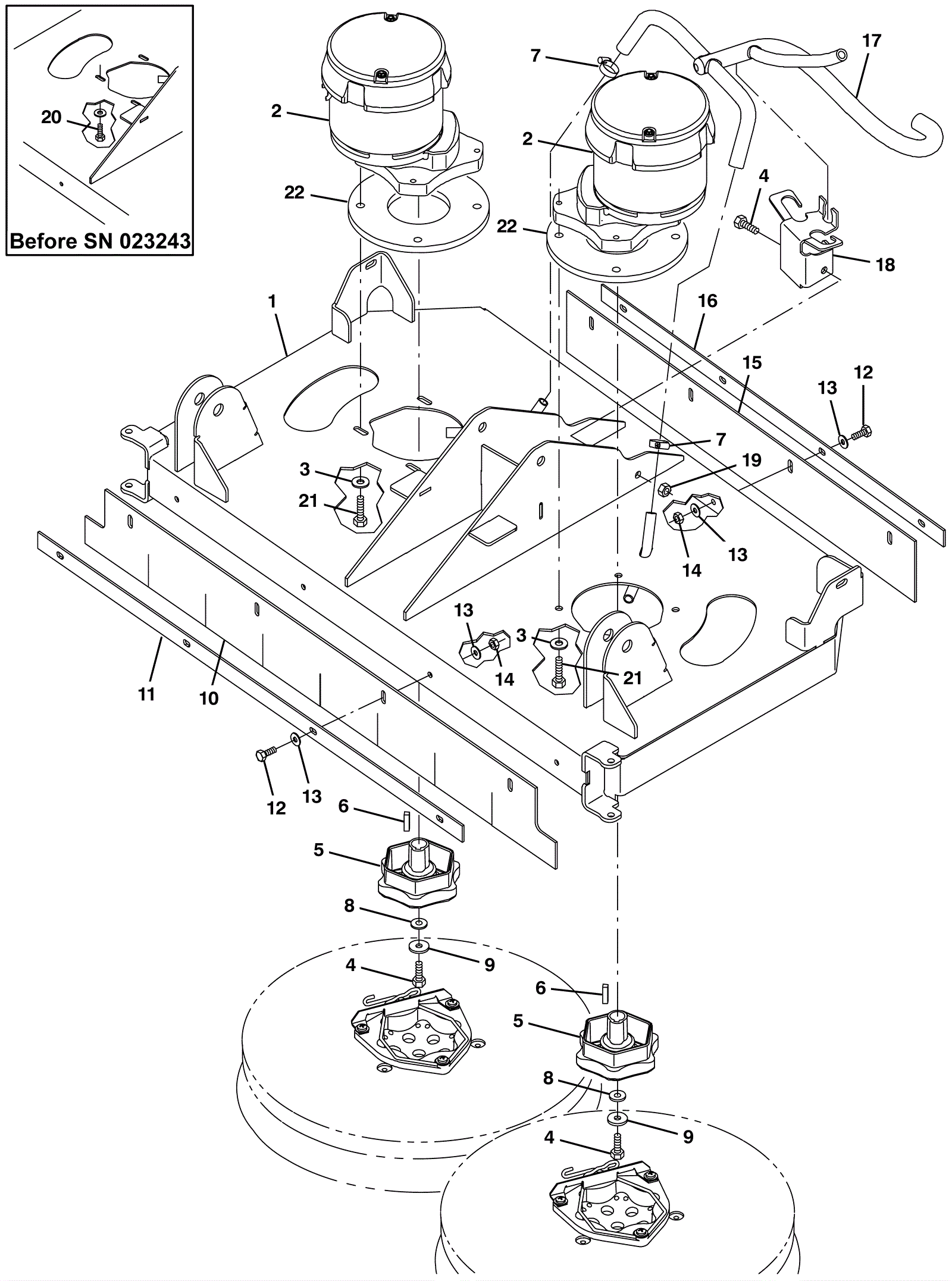

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-1262
|
Disk head weldment (Tennant Industrial) |
1 |
|
|
2a |
275-7326
|
MOTOR, ELE, 36VDC 0360RPM 1.00HP GEAR (Tennant Industrial) |
2 |
(includes 2b) |
|
2b |
275-5341
|
Carbon brush (pkg of 4) |
1 |
|
|
2c |
375-6016
|
Motor bearing |
1 |
|
|
3 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
|
|
4 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
3 |
|
|
5 |
175-9525
|
Brush drive hub |
2 |
|
|
6 |
175-5356
|
Square keyway |
2 |
|
|
7 |
175-6081
|
Hose clamp |
2 |
|
|
8 |
999-1407
|
Washer 5/16 belleville |
2 |
|
|
9 |
175-7920
|
Washer M8 flat stainless steel |
2 |
|
|
10 |
275-1263
|
Rubber skirt (Tennant Industrial) |
1 |
|
|
11 |
275-1264
|
Front skirt retainer strip (Tennant Industrial) |
1 |
|
|
12 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
8 |
|
|
13 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
16 |
|
|
14 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
8 |
|
|
15 |
175-9527
|
Skirt .12-3.75 x 29.12 4/.31 |
1 |
|
|
16 |
175-9528
|
Left front skirt retainer strip |
1 |
|
|
17 |
275-1265
|
Solution manifold (Tennant Industrial) |
1 |
|
|
18 |
275-1266
|
Hose guide bracket (Tennant Industrial) |
1 |
|
|
19 |
999-0665
|
Nut M8-1.25 flange lock |
1 |
|
|
20 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
8 |
(before SN 023243) |
|
21 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
8 |
(after SN 023242) |
|
22 |
275-1267
|
Spacer ring (Tennant Industrial) |
2 |
(after SN 023242) |
|
