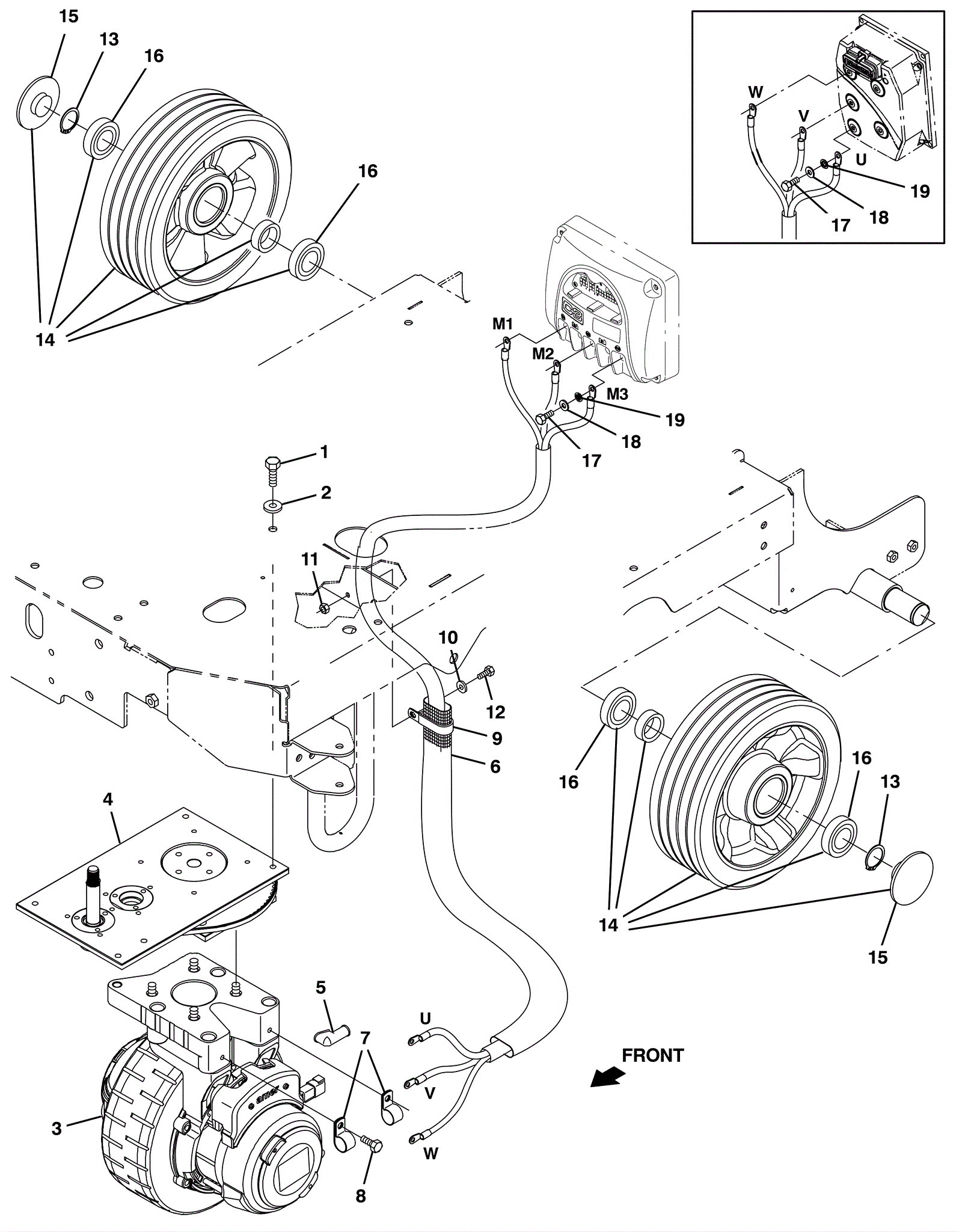

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
3 |
|
|
2 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
3 |
|
|
3 |
375-9888
|
Drive wheel assembly |
1 |
|
|
4a |
275-2733
|
Drive wheel control assembly (Tennant Industrial) |
1 |
(before SN 022672) |
|
4b |
275-2733
|
Drive wheel control assembly (Tennant Industrial) |
1 |
(bewteen SN 022671-023753) |
|
4c |
275-2734
|
Drive wheel control assembly (Tennant Industrial) |
1 |
(after SN 023752) |
|
5 |
175-2122
|
90 degree cable boot |
5 |
|
|
6 |
175-6881
|
SLEEVE, NYL, 1.63ID 35.0L (Tennant Industrial) |
1 |
|
|
7 |
175-2260
|
P clamp |
2 |
|
|
8 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
2 |
|
|
9 |
175-3171
|
Cable clamp |
1 |
|
|
10 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
11 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
12 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
13 |
275-7559
|
Retaining ring (Tennant Industrial) |
2 |
|
|
14 |
275-7558
|
Tire assembly (urethane) (Tennant Industrial) |
2 |
(includes 15 and 16) |
|
15 |
275-2739
|
Hub cap |
1 |
|
|
16 |
375-4062
|
Ball bearing (Tennant Industrial) |
2 |
|
|
17 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
3 |
|
|
18 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
19 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
3 |
|
|
