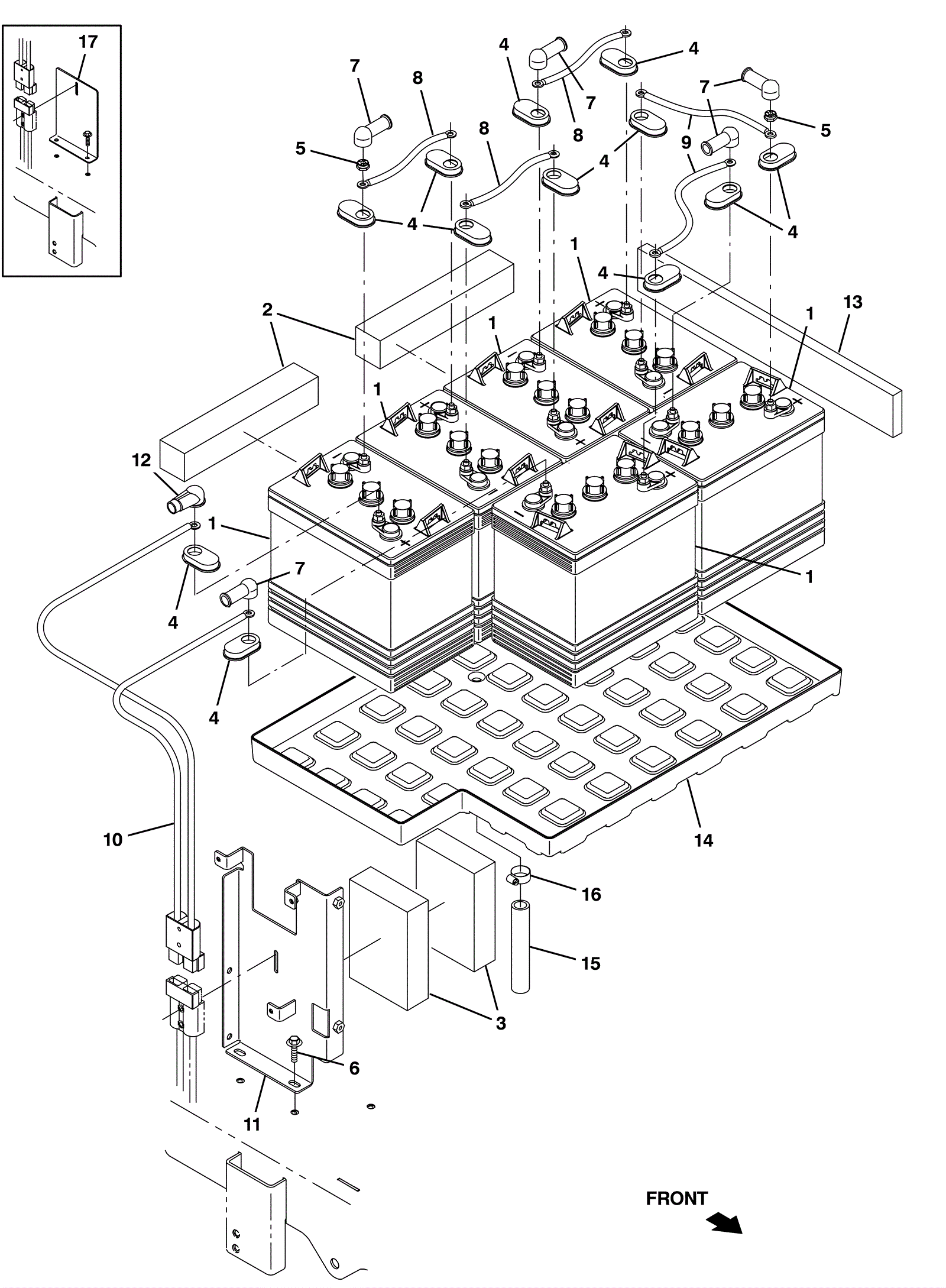

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
6 |
|
|
2 |
375-2512
|
Foam battery spacer |
2 |
|
|
3 |
275-2726
|
Foam battery spacer |
2 |
|
|
4 |
275-5948
|
Battery terminal cover (black) |
12 |
|
|
5 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
12 |
|
|
6 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
2 |
|
|
7 |
175-1103
|
Battery cable boot (black) |
11 |
|
|
8 |
275-2727
|
8 inch cable (red) (Tennant Industrial) |
3 |
|
|
9 |
275-2728
|
12 inch cable (red) (Tennant Industrial) |
2 |
|
|
10 |
275-2711
|
175amp cable assembly (Tennant Industrial) |
1 |
|
|
11 |
375-9733
|
Charger mounting bracket weldment |
1 |
|
|
12 |
275-7746
|
Boot (red) (Tennant Industrial) |
1 |
|
|
13 |
175-2127
|
Battery spacer |
1 |
|
|
14 |
275-2729
|
Battery tray (quantum) (Tennant Industrial) |
1 |
|
|
15 |
275-8607
|
HOSE, AFMKT, PVC, BRD, 0.75ID, 01FT, CLR (Tennant Industria |
1 |
|
|
16 |
175-0199
|
Hose clamp |
1 |
|
|
17 |
275-2730
|
Battery angle (Tennant Industrial) |
1 |
|
|
