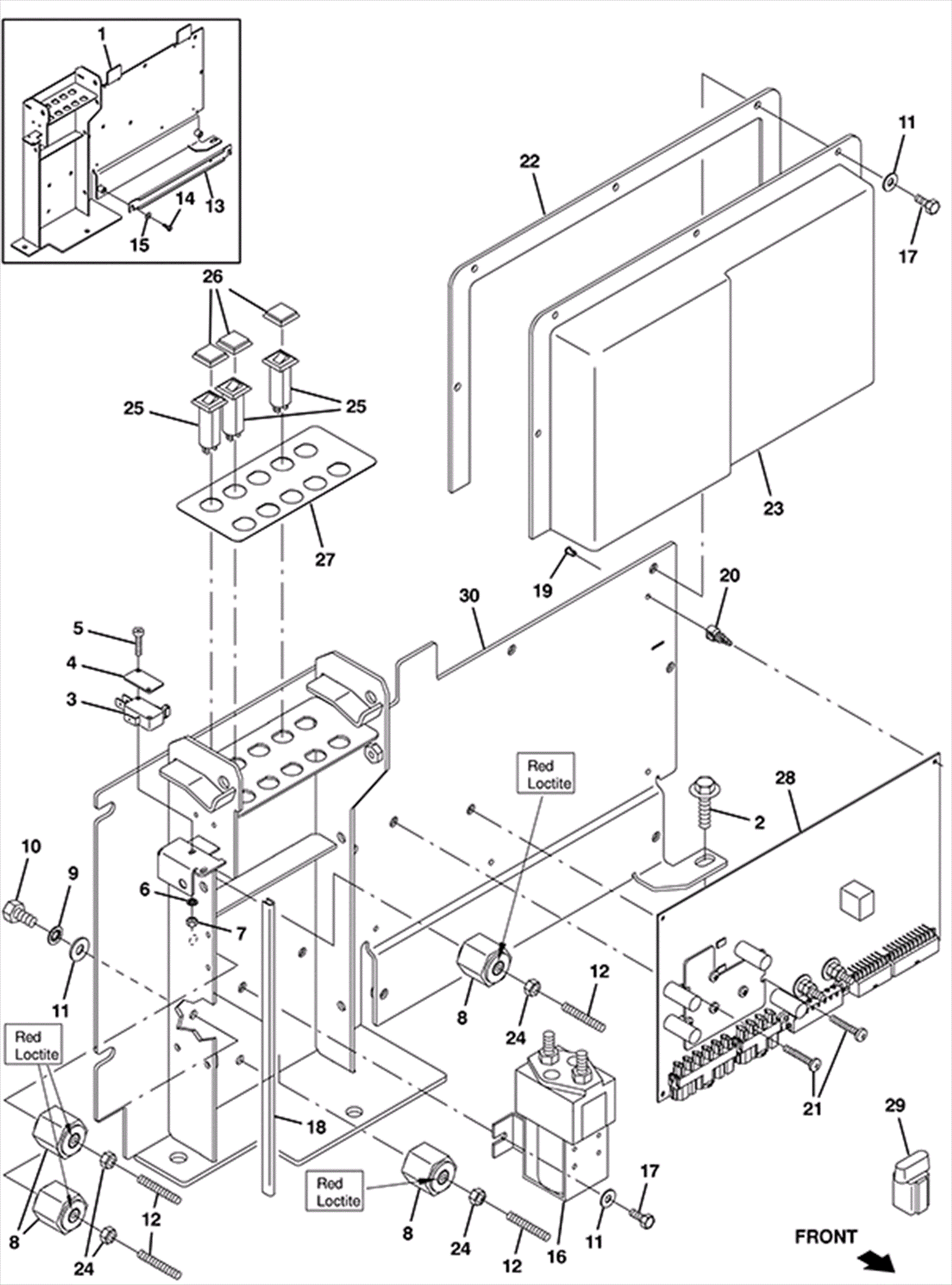

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-2710
|
Mounting bracket weldment (Tennant Industrial) |
1 |
(before SN 029242) |
|
2 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
3 |
|
|
3 |
175-1199
|
Snap switch |
1 |
|
|
4 |
175-1200
|
Switch backing plate |
1 |
|
|
5 |
999-1040
|
Screw M3-.5 x 20mm pan head |
2 |
|
|
6 |
999-0479
|
Washer #4 internal star lock zinc plated |
2 |
|
|
7 |
999-0768
|
Nut M3-.5 hex coarse thread plain finish |
2 |
|
|
8 |
175-3226
|
Insulated stand off |
4 |
|
|
9 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
12 |
|
|
10 |
175-9950
|
Bolt 1/4-20 x 1/2 hex head nylon lock |
4 |
|
|
11 |
275-1464
|
WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial) |
4 |
|
|
12 |
175-3227
|
Threaded rod |
4 |
|
|
13 |
275-2712
|
Wire clamp plate (Tennant Industrial) (OBSOLETE) |
1 |
(before SN 022202) |
|
14 |
175-3382
|
Bolt M5-.8 x 25mm hex head stainless steel |
2 |
(before SN 022202) |
|
15 |
999-0006
|
Washer 3/16 flat zinc plated |
7 |
(before SN 022202) |
|
16 |
275-2713
|
36V 200amp contactor (Tennant Industrial) |
1 |
|
|
17 |
175-0852
|
Bolt 5mm-.8 x 12 hex head |
7 |
|
|
18 |
275-8203
|
Molding |
1 |
|
|
19 |
275-2714
|
Plastic circuitboard rivet (Tennant Industrial) |
5 |
|
|
20 |
275-2715
|
Circuitboard clip (Tennant Industrial) |
5 |
|
|
21 |
999-0797
|
Screw M5-.8 x 30mm pan head phillips stainless steel |
2 |
|
|
22 |
275-2716
|
Circuitboard cover gasket (Tennant Industrial) |
1 |
|
|
23 |
275-2717
|
Circuitboard cover (Tennant Industrial) |
1 |
|
|
24 |
999-0190
|
Nut 1/4-20 hex plain finish |
4 |
|
|
25 |
275-5483
|
2.5amp circuit breaker |
3 |
|
|
26 |
275-2596
|
Circuit breaker boot (Tennant Industrial) |
3 |
|
|
27 |
275-2718
|
Circuitbreaker decal (Tennant Industrial) |
1 |
|
|
28 |
275-2719
|
Circuitboard kit (Tennant Industrial) |
1 |
|
|
29 |
275-7853
|
Diode plug (Tennant Industrial) |
2 |
|
|
30 |
375-9720
|
Mounting bracket weldment |
1 |
(after SN 029241) |
|
